    Default Join 2D polyline with poyline

    Registered forum members do not see this ad.

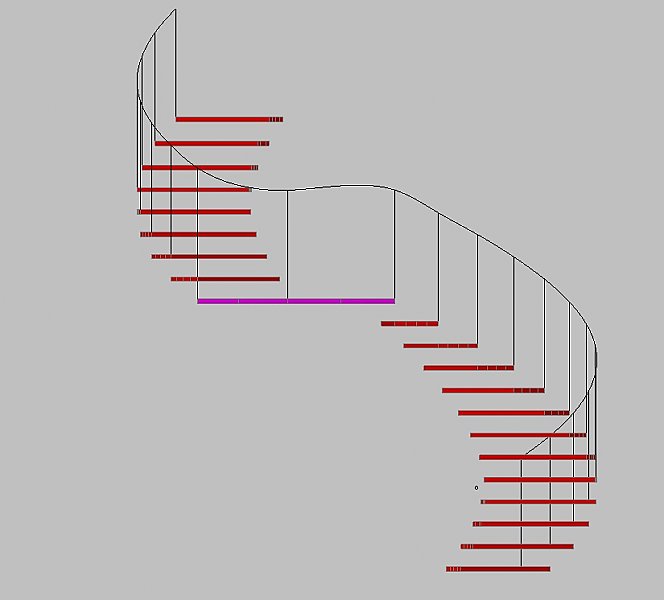

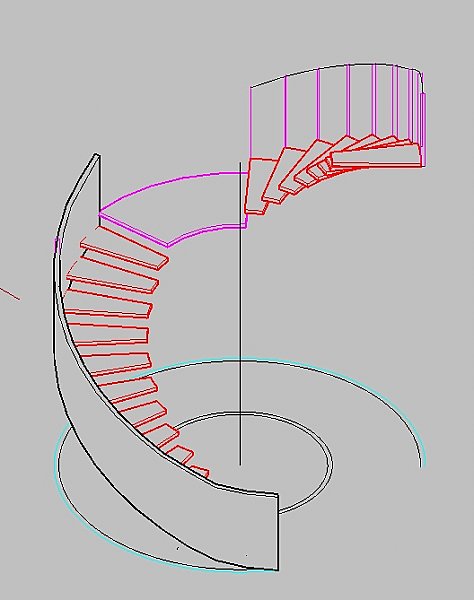

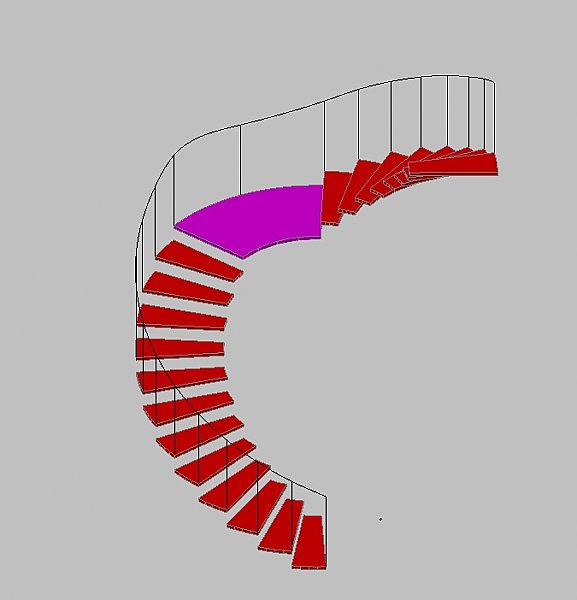

    Can somebody tell me why i can't join these polylines?

    tq
    Attached Files

  2. #2
    Banned Alan Cullen's Avatar
    Using
    Map 3D 2009
    Join Date
    Jun 2006
    Location
    Cairns, Queensland, Australia
    Posts
    4,181

    Default

    The 2 grey polylines have a different z value to the yellow polyline. They are not coplanar, so they wont join. You have to make them all the same z value to join them.

    Use the express tool FLATTEN to bring them all to a zero "z" value.

  3. #3
    Junior Member
    Using
    AutoCAD 2007
    Join Date
    Sep 2007
    Location
    Malaysia
    Posts
    17

    Default

    Thanks Allan

  4. #4
    Junior Member Ragnarok561's Avatar
    Using
    AutoCAD 2007
    Join Date
    Sep 2007
    Posts
    11

    Default

    Registered forum members do not see this ad.

    Or what you could of done in my aspect, is just type PEDIT then select what you wanted to join .

    After you click what you wanted to join, as you see the options that are on the command line, you will see join. You will type J then bamm.

    You press ESC then they should be joined
