how to convert 2d polyline to polyline


Recommended Posts

  • Replies 30
  • Created
  • Last Reply

Top Posters In This Topic

  • SEANT

    7

  • SLW210

    4

  • shrimpbiscuits

    4

  • ReMark

    2

can you elaborate more?

a 2D polyline is the same as a polyline.

now a 3d polyline is the one different from a 2dpolyline/ polyline

Link to comment
Share on other sites

  • 8 months later...

2d polylines are definitely NOT the exact same as polylines.

very close though.



draw a 2d polyline and a regular polyline and try to offset both of them and see what happens. the 2d will remain a 2d polyline but will now have about 10 times as many handles making it a little unmanageable for editing. the polyline will keep the same amount and spacing of handle.



a 2d polyline wil take up more memory than a regular polyline, as the vertex information is stored differently. the current 2d polyline system is how all 2d polylines used to be stored, and cad moved towards the newer way, "regular polylines" to cut down on memory use and regen time.



most importantly, i think we can all agree that splines suck.

Link to comment
Share on other sites

most importantly, i think we can all agree that splines suck.



That does seem to be the prevailing opinion, though I’m not sure why.

Link to comment
Share on other sites

Originally Posted by inevelus viewpost.gif

Most importantly, i think we can all agree that splines suck.



Originally Posted by SEANT

"That does seem to be the prevailing opinion, though I’m not sure why."



Is there a command to change a spline to a polyline?

Link to comment
Share on other sites

The Express Tools FLATTEN command will convert splines to polylines, though that may not be useful if the 3D geometry must be maintained.



I have not seen a routine to convert a 3 dimensional Spline to a 3dPolyline but imagine it would be fairly straightfoward to write.

Link to comment
Share on other sites

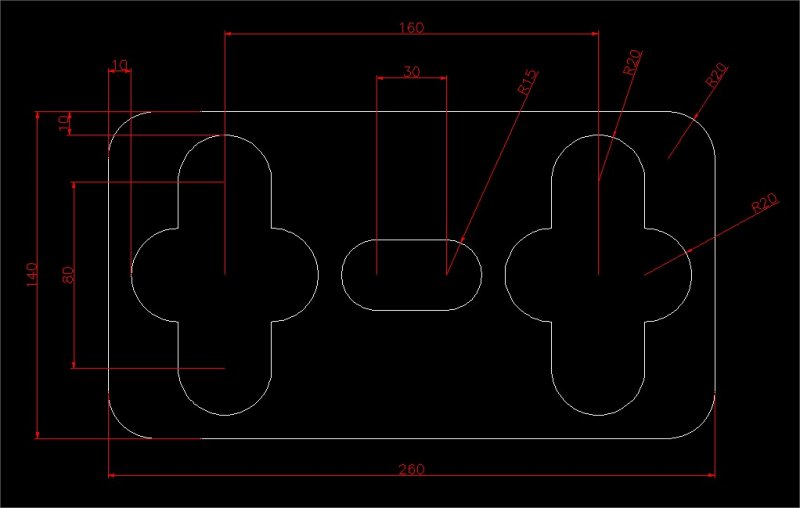

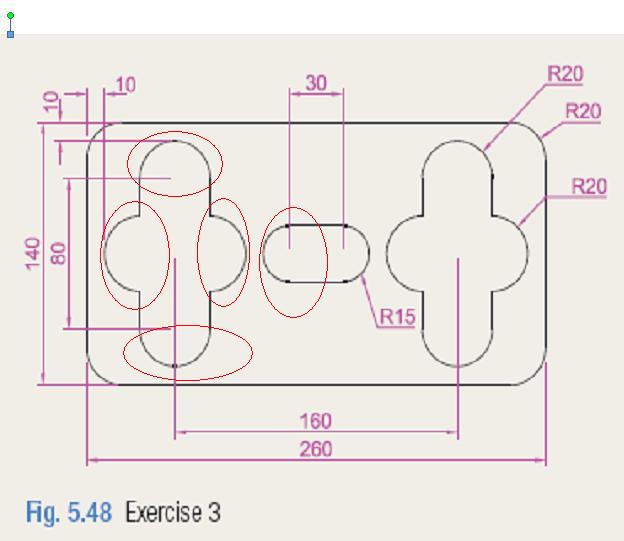

At this I tried the Drawing, The Lines Exploded by typing Explode and then PEDIT it, andf it will join and make it into a polyline

Link to comment
Share on other sites

  • 3 months later...
The Express Tools FLATTEN command will convert splines to polylines, though that may not be useful if the 3D geometry must be maintained.



I have not seen a routine to convert a 3 dimensional Spline to a 3dPolyline but imagine it would be fairly straightfoward to write.





To convert Spline to 3d polyline:

Save as DXF and then re-open, all spline will be 3d polyline



dxf 12 will work, i don´t know other versions

Link to comment
Share on other sites

  • 3 weeks later...

Try this..



(defun spline-to-pline (/ i)
 (vl-load-com)
 (setq *thisdrawing* (vla-get-activedocument
  (vlax-get-acad-object)
       ) ;_ end of vla-get-activedocument
*modelspace*  (vla-get-ModelSpace *thisdrawing*)
 ) ;_ end of setq
 (setq spline-list (get-spline))
 (setq i (- 1))
 (if spline-list
   (progn
     (setq msg "\nNumber of segments <100>: ")
     (initget 6)
     (setq num (getint msg))
     (if (or (= num 100) (= num nil))
(setq num 100)
     ) ;_ end of if
     (repeat (length spline-list)
(setq splobj (nth (setq i (1+ i)) spline-list))
(convert-spline splobj num)
     ) ;_ end of repeat
   ) ;_ end of progn
 ) ;_ end of if
) ;_ end of spline-to-pline
(defun get-spline (/ spl-list obj spline no-ent i)
 (setq spl-list nil
obj  nil
spline  "AcDbSpline"
selsets  (vla-get-selectionsets *thisdrawing*)
ss1  (vlax-make-variant "ss1")
 ) ;_ end of setq
 (if (= (vla-get-count selsets) 0)
   (setq ssobj (vla-add selsets ss1))
 ) ;_ end of if
 (vla-clear ssobj)
 (setq no-ent 1)
 (while no-ent
   (prompt "\nSelect splines: ")
   (vla-Selectonscreen ssobj)
   (if (> (vla-get-count ssobj) 0)
     (progn
(setq no-ent nil)
(setq i (- 1))
(repeat (vla-get-count ssobj)
  (setq
    obj (vla-item ssobj
    (vlax-make-variant (setq i (1+ i)))
 ) ;_ end of vla-item
  ) ;_ end of setq
  (cond
    ((= (vlax-get-property obj "ObjectName") spline)
     (setq spl-list
     (append spl-list (list obj))
     ) ;_ end of setq
    )
  ) ;_ end-of cond
) ;_ end of repeat
     ) ;_ end of progn
     (prompt "\nNo entities selected, try again.")
   ) ;_ end of if
   (if (and (= nil no-ent) (= nil spl-list))
     (progn
(setq no-ent 1)
(prompt "\nNo splines selected.")
(quit)
     ) ;_ end of progn
   ) ;_ end of if
 ) ;_ end of while
 (vla-delete (vla-item selsets 0))
 spl-list
) ;_ end of get-spline
(defun convert-spline (splobj n / i)
 (setq point-list   nil
2Dpoint-list nil
z-list      nil
spl-lyr      (vlax-get-property splobj 'Layer)
startSpline  (vlax-curve-getStartParam splobj)
endSpline    (vlax-curve-getEndParam splobj)
i      (- 1)
 ) ;_ end of setq
 (repeat (+ n 1)
   (setq i (1+ i))
   (setq p (vlax-curve-getPointAtParam
      splobj
      (* i
  (/ (- endspline startspline) n)
      ) ;_ end of *
    ) ;_ end of vlax-curve-getPointAtParam
   ) ;_ end of setq
   (setq 2Dp        (list (car p) (cadr p))
  2Dpoint-list (append 2Dpoint-list 2Dp)
  point-list   (append point-list p)
  z        (caddr p)
  z-list       (append z-list (list z))
   ) ;_ end of setq
 ) ;_ end of repeat
 (setq summ (apply '+ z-list))
 (setq arraySpace
 (vlax-make-safearray
   vlax-vbdouble ; element type
   (cons 0
  (- (length point-list) 1)
   ) ; array dimension
 ) ;_ end of vlax-make-safearray
 ) ;_ end of setq
 (setq vert-array (vlax-safearray-fill arraySpace point-list))
 (vlax-make-variant vert-array)
 (if (and (= :vlax-true (vlax-get-property splobj 'IsPLanar))
   (= summ 0.0)
     ) ;_ end of and
   (setq plobj (add-polyline
   2Dpoint-list
   vla-AddLightweightPolyline
 ) ;_ end of add-polyline
   ) ;_ end of setq
   (setq plobj (add-polyline
   point-list
   vla-Add3DPoly
 ) ;_ end of add-polyline
   ) ;_ end of setq
 ) ;_ end of if
 (vlax-put-property plobj 'Layer spl-lyr)
 (vla-delete splobj)
 (vlax-release-object splobj)
) ;_ end of convert-spline
(defun add-polyline (pt-list poly-func)
 (setq arraySpace
 (vlax-make-safearray
   vlax-vbdouble
   (cons 0
  (- (length pt-list) 1)
   ) ; array dimension
 ) ;_ end of vlax-make-safearray
 ) ;_ end of setq
 (setq vertex-array
 (vlax-safearray-fill arraySpace pt-list)
 ) ;_ end of setq
 (vlax-make-variant vertex-array)
 (setq plobj (poly-func
 *modelspace*
 vertex-array
      ) ;_ end of poly-func
 ) ;_ end of setq
) ;_ end of add-polyline
(defun c:s2p ()
 (spline-to-pline)
 (princ)
) ;_ end of c:s2p
(prompt
 "SPLINE-TO-PLINE by Tony Hotchkiss. Enter S2P to start"
) ;_ end of prompt

Edited by SLW210
Add Code Tags!
Link to comment
Share on other sites

  • 1 year later...

When I try to convert a 2d polyline to a regular polyline, it then asks me to choose between options like 'open' 'fit' 'close'. I'm not really sure which one to choose. I have been choosing 'open' but then it's like i have to choose it thousands of times. I don't know what is going on.

Link to comment
Share on other sites

  • 1 year later...

Try using overkill. It worked for me. I learned it from a good friend, a legend in the CAD industry that goes by the name candymountain.

Link to comment
Share on other sites

Well let's hope the OP did not wait until June 2008 for an answer. But it will prove useful to others with the same question.



You're in the running for today's prize for the person that resurrects the oldest thread. 4 years 6 months. LoL

Link to comment
Share on other sites

Haha, yeah I know its old as hell but I did a search on google and couldnt find any answers on it so when I found this thread I joined today to make sure the answer is out there for anyone who may need it in the future.

Link to comment
Share on other sites

It will convert 2d polylines to polylines



OVERKILL doesn't work here to convert 2D Polyline to Polyline.



CONVERTPOLY works just fine as does PEDIT.

Link to comment
Share on other sites

Neither one of those worked for me for converting from 2d to a regular poly but overkill did just what I needed for some reason.
