create multiline

[comcu]

Hi,

Can anyone direct me to a good example of drawing multilines using vba?

I looked in the help file but doesnt seem to be a lot of info on it?

Cheers,

Col

[rocheey]

You seed your points as XYZ sets, so the number of points for the 'main' part of the line will be an array of sets of 3: the points on your main line will be indexes 0,1,2 for the first point, indexes 3,4,5 for the second point, indexes 6,7,8 for the third point. etc, etc.

The Justification is the side to offset by. acTop & acBottom are which "side" to offset your "main" line by: acZero basically offsets both lines from your imaginary line running down the middle of your points.

MLineScale controls the offset amount.

The sample code provided in the help, is not much help.
Take the sample code, erase all the points except those from index
0-8, and make them the following values:
0=0. 1=0. 2=0.
3=0. 4=-10. 5=0.
6=10. 7=-10. 8=0

This will basically make an "L" shape, unlike the overlapping crap that the sample source gives you.

Then play with the Justification and MLinScale properties; you should get the hang of it then.

[fixo]

Hi, Col
Not sure about what you mean but
hope it will helps, just pick points on screen

Public Sub DrawMLineDynamicaly()
' partially borrowed from Tony Tanzillo's 'Getpoint' function
Dim pickPt As Variant
Dim mlCoords() As Double
Dim i As Integer
Dim oMline As AcadMLine

i = 0
On Error Resume Next
pickPt = ThisDrawing.Utility.GetPoint(, vbCr & "First point: ")
If Err = 0 Then
    ReDim mlCoords(2)
    mlCoords(i) = pickPt(0): mlCoords(i + 1) = pickPt(1): mlCoords(i + 2) = 0#
    Do Until Err.Number <> 0
        i = i + 3
        pickPt = ThisDrawing.Utility.GetPoint(pickPt, vbCr & "Pick next point or press Enter to stop: ")
        ReDim Preserve mlCoords(UBound(mlCoords) + 3)
        mlCoords(i) = pickPt(0): mlCoords(i + 1) = pickPt(1): mlCoords(i + 2) = 0#
        If oMline Is Nothing Then
            Set oMline = ThisDrawing.ModelSpace.AddMLine(mlCoords)
            oMline.Update
        Else
            oMline.Coordinates = mlCoords
            oMline.Update
        End If
    Loop

End If

End Sub

~'J'~

[comcu]

Fixo,

Thank you for that. What I am trying to create is a version of the code you posted but to allow the user to type in size,s width, height and qty of bays and to end product to be curtain walling screen.

Thank you for thehelp.

Cheers,

col

[comcu]

Rocheey,
Thank you for the explanation. You didn’t mention mlinestyle? I see from help that it is read only?

I tried

MyObjMLine.stylename = “MLineStyleName”

And it returned an error. Does this mean it can not be changed with vba and you have to do it manually?
Cheers,

Col

[fixo]

Rocheey,
Thank you for the explanation. You didn’t mention mlinestyle? I see from help that it is read only?

I tried

MyObjMLine.stylename = “MLineStyleName”

And it returned an error. Does this mean it can not be changed with vba and you have to do it manually?
Cheers,

Col

Col, please, take a look at the Help always:

From Help
StyleName
For the MLine object, this property is read-only

To set desired MlineStyle use:

ThisDrawing.SetVariable "CMLSTYLE", "MyStyleName" '<--style name

the same things with scale and justification:

ThisDrawing.SetVariable "CMLSCALE", 10.0 <--scale
ThisDrawing.SetVariable "CMLJUST", 1 '<--justification to middle

After that you can draw multiline with desired parameters

~'J'~

[fixo]

Fixo,

Thank you for that. What I am trying to create is a version of the code you posted but to allow the user to type in size,s width, height and qty of bays and to end product to be curtain walling screen.

Thank you for thehelp.

Cheers,

col

Col, sorry, I don't understand what you mean
Please, upload here the small picture or the sample
drawing to enlight me with it

~'J'~

[comcu]

Thank you for the set variable, it worked fine.

I doo look at help but some times find it hard to get what i am looking for. Thank you for the help.
I will post a sample drawing/ jpeg later today.

I would appreciate any pointers. i think i can use the code you posted but jsut have the points calculated from input added by the user.

will post the jpeg later.

thank you for the help.

cheers,

col

[fixo]

Okay, still waiting for

~'J'~

[comcu]

Fixo,

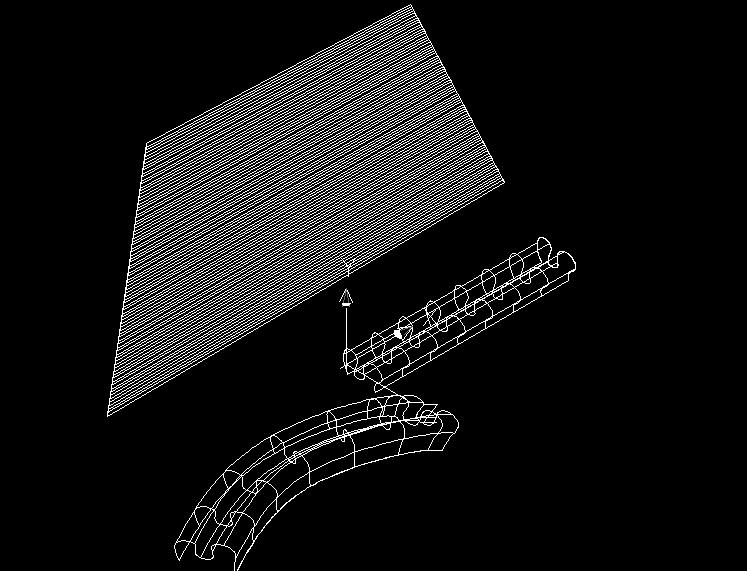

jpeg attached. it is a very simple example, the amount of columns/ rows could 10 or 100, for eg.

Im sure i can use you example, i just need to work out how to accept input from the command line and then work out the calculation required.

cheers,

col
