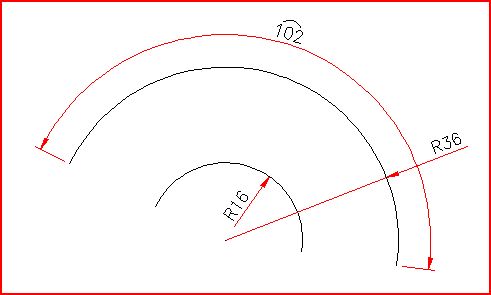

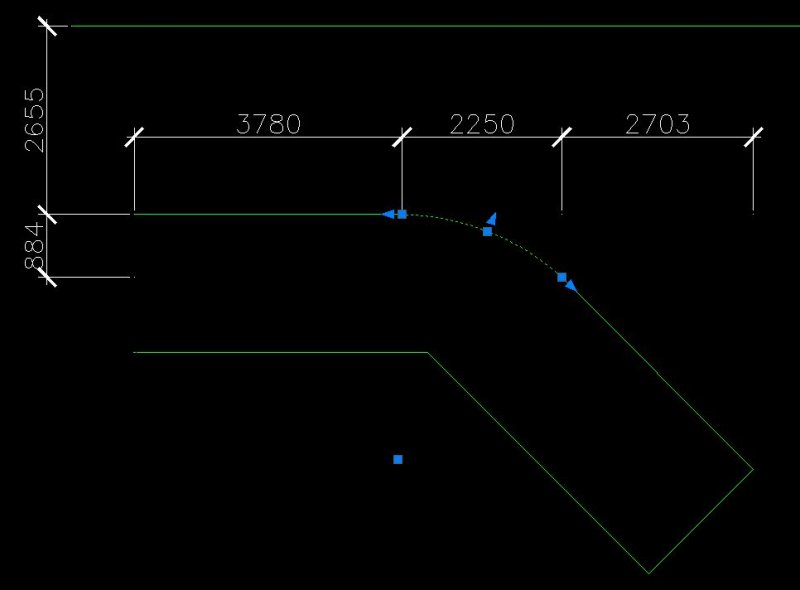

chewy Posted October 7, 2009 Share Posted October 7, 2009 How do I achieve following (a) dimension style without seeing the dimension base line and number will appear vertical when line is horizontal? 1) In black colour lines I managed part of the style I want by adjust under text, the text placement, horizontal: change to At ext line 1 And under lines, I suppress Dim line 1 & 2 But how do I make it if the dimension line to vertical ||, the text appear to be horizontal -- instead of the vertical || (shown in right hand side of the picture) 2) In Green colour lines And I tried the other method, I managed to let the words be vertical || when the line is horizontal – by under text, text placement, horizontal: change to over ext line 1 I tried to Dim line 1 and dim line 2 but it doesn't work. And the only way I came out with it by setting the dimension base line same at the line I wish to measure. Both only let me have half the dimension style I want. What setting should I change in the dimension style in order for that to happen? Thanks Quote Link to comment Share on other sites More sharing options...
