gsteel Posted May 16, 2011 Share Posted May 16, 2011 I am trying to creat a script.... I'm sure it is easy but to my novice brain I can't get it to work. I simply want to change a drawings units to millimeters and not rescale anything. I have tried -units but it doesn't give the option to change the actuall Drawing Units: Any help would be appreciated Cheers Greg Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 16, 2011 Share Posted May 16, 2011 I have renamed and relocated your thread to a better location for related responses. Try checking "Similar Threads" at the bottom of this page. All you do when creating a script is invoke a command on the command line and answer the prompts. Where are you hanging up? Command: -units Report formats: (Examples) 1. Scientific 1.55E+01 2. Decimal 15.50 3. Engineering 1'-3.50" 4. Architectural 1'-3 1/2" 5. Fractional 15 1/2 With the exception of Engineering and Architectural formats, these formats can be used with any basic unit of measurement. For example, Decimal mode is perfect for metric units as well as decimal English units. Enter choice, 1 to 5 <4>: Enter denominator of smallest fraction to display (1, 2, 4, 8, 16, 32, 64, 128, or 256) <32>: Systems of angle measure: (Examples) 1. Decimal degrees 45.0000 2. Degrees/minutes/seconds 45d0'0" 3. Grads 50.0000g 4. Radians 0.7854r 5. Surveyor's units N 45d0'0" E Enter choice, 1 to 5 <1>: Enter number of fractional places for display of angles (0 to <2>: Direction for angle 0.00: East 3 o'clock = 0.00 North 12 o'clock = 90.00 West 9 o'clock = 180.00 South 6 o'clock = 270.00 Enter direction for angle 0.00 <0.00>: Measure angles clockwise? [Yes/No] <N> Maybe you are wanting to change your Dimensions instead? If you want to change the physical drawing from one that is 1 = 1 inch, 1 = 1 foot, 1 = 1mm, 1 = 1cm, 1 = 1m to another then rescaling the drawing is your only option. Quote Link to comment Share on other sites More sharing options...
sparkyuk Posted May 16, 2011 Share Posted May 16, 2011 If you have drawn in model space at 1-1 then its should only be a matter of selecting the correct scale when printing or saving your drawing shouldnt it ? Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 16, 2011 Author Share Posted May 16, 2011 Hi thanks for your reply. I have hundreds of drawings I have received. Many of them have the units set to inches, so I have to type UNITS and set it to millimeters, I am hoping to create a script to automate this process as well as setting a few other pararmeter but I can't get the units bit to work. -units does not let me change the 'Drawing Units' Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 16, 2011 Share Posted May 16, 2011 Hi thanks for your reply. I have hundreds of drawings I have received. Many of them have the units set to inches, so I have to type UNITS and set it to millimeters, I am hoping to create a script to automate this process as well as setting a few other pararmeter but I can't get the units bit to work. -units does not let me change the 'Drawing Units' Yes it does. You just do not understand what drawing units "ARE" and "ARE NOT". I have renamed and relocated your thread to a better location for related responses. Try checking "Similar Threads" at the bottom of this page. All you do when creating a script is invoke a command on the command line and answer the prompts. Where are you hanging up? Command: -units Report formats: (Examples) 1. Scientific 1.55E+01 2. Decimal 15.50 3. Engineering 1'-3.50" 4. Architectural 1'-3 1/2" 5. Fractional 15 1/2 With the exception of Engineering and Architectural formats, these formats can be used with any basic unit of measurement. For example, Decimal mode is perfect for metric units as well as decimal English units. Enter choice, 1 to 5 <4>: Enter denominator of smallest fraction to display (1, 2, 4, 8, 16, 32, 64, 128, or 256) <32>: Systems of angle measure: (Examples) 1. Decimal degrees 45.0000 2. Degrees/minutes/seconds 45d0'0" 3. Grads 50.0000g 4. Radians 0.7854r 5. Surveyor's units N 45d0'0" E Enter choice, 1 to 5 <1>: Enter number of fractional places for display of angles (0 to <2>: Direction for angle 0.00: East 3 o'clock = 0.00 North 12 o'clock = 90.00 West 9 o'clock = 180.00 South 6 o'clock = 270.00 Enter direction for angle 0.00 <0.00>: Measure angles clockwise? [Yes/No] <N> Maybe you are wanting to change your Dimensions instead? If you want to change the physical drawing from one that is 1 = 1 inch, 1 = 1 foot, 1 = 1mm, 1 = 1cm, 1 = 1m to another then rescaling the drawing is your only option. http://help.autodesk.com/kb/display.do?ROW_ID=1-GQC-870 I have in my current drawing a building that is 60'-0" (as dimensioned) or "as drawn" it is 720 DRAWING UNITS because I drew with 1 DRAWING UNIT to equal 1 INCH (60 x 12 = 720). Unless I rescale it the actual drawing will always be 720 DRAWING UNITS. Quote Link to comment Share on other sites More sharing options...
Jack_O'neill Posted May 17, 2011 Share Posted May 17, 2011 Perhaps we are suffering from a terminology problem. Gsteel, are you simply wishing to convert a drawing done in inches to millimeters? In other words, if you have a dimension that says 1" you want it to say 25.4mm, right? There are a couple of ways to do this. One is to go to the format menu, down to dimension style. Then pick one and click modify. Click on the tab that says "alternate units". Once that is done, look for "display alternate units" and put a check in the box. hit ok, then "set current" and "close". Any dimensions on your drawing using that dimension style will then display the imperial and the metric numbers. If you want only the metrics, instead of clicking on the "alternate units" tab, click on "primary units". Down near the middle of the dialog box you'll see "measurement scale" with a box that says "scale factor". Enter 25.4 there and your dims will be in millimeters instead of inches. Quote Link to comment Share on other sites More sharing options...
dbroada Posted May 17, 2011 Share Posted May 17, 2011 from a similar thread the other day didn't somebody say ACAD Arch was different from vanilla for this sort of problem? Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 Ok maybe I am being a bit thick here..... I have drawing all drawn at 1:1 scale in model space. Under the UNITS command they are all set to inches and I want them as mm. I can do it manuallt by typing UNITS and selecting mm from the first drop down (Drawing Units). It then asks me if I want to rescale the drawing and I say no. I have hundred of these to do I was simply hoping there was a script that would perform this automated. I am using Architecture 2011 if that is relevant. @SLW210 - I am quite sure I am aware what a unit is thanks for the info tho. @Jack - Our dimension come out in mm, I have a script that sets up my dims for me. thanks tho @dbroada - I'm not sure what Vanilla is? In Autocad terms anyway Quote Link to comment Share on other sites More sharing options...
SLW210 Posted May 17, 2011 Share Posted May 17, 2011 It is your option to refuse all the sound advise given you here, I hope you get this figured out. In case you want to know, the answer you seek is in my original response to your question. If you desire to be rude, then I will help you no further. Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 I have in no way been rude to any one please post my previous reply as proof! In have indeen been through you first post as I have been though the help files I tried all variations and options non of which change the setting required. Quote Link to comment Share on other sites More sharing options...

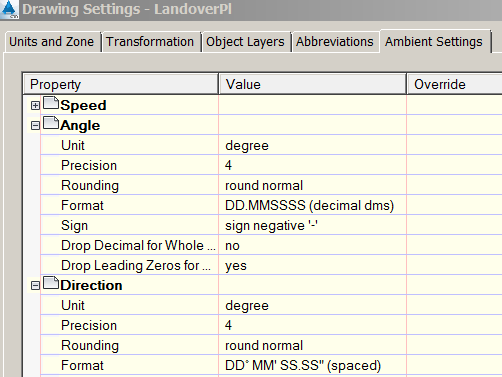

gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 I have attached a screen shot of the setting I need to change. inches to millimeters It isn't that the dimensions are coming in in inches I can get them in mm fine (As I have stated in my mysteriously removed post) Quote Link to comment Share on other sites More sharing options...
SEANT Posted May 17, 2011 Share Posted May 17, 2011 In the command line it would look like this: Command: INSUNITS Enter new value for INSUNITS : 4 Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 Hi thanks SEANT. That doesn't seem to work tho. It runs fine but doent change inches to millimeters. Quote Link to comment Share on other sites More sharing options...
SEANT Posted May 17, 2011 Share Posted May 17, 2011 (edited) I’m not sure if Architecture 2011 goes about it differently, certainly the dialog boxes show some variation, but the command sequence below produces the changes illustrated in the images for plain AutoCAD. Command: LUNITS Enter new value for LUNITS : 2 Command: INSUNITS Enter new value for INSUNITS : 4 Edited May 17, 2011 by SEANT Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 Do you see the same dialogue as I posted when you type units? Quote Link to comment Share on other sites More sharing options...
SEANT Posted May 17, 2011 Share Posted May 17, 2011 No. I see the one I attached above. Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 Sorry I can't see your attachment Quote Link to comment Share on other sites More sharing options...

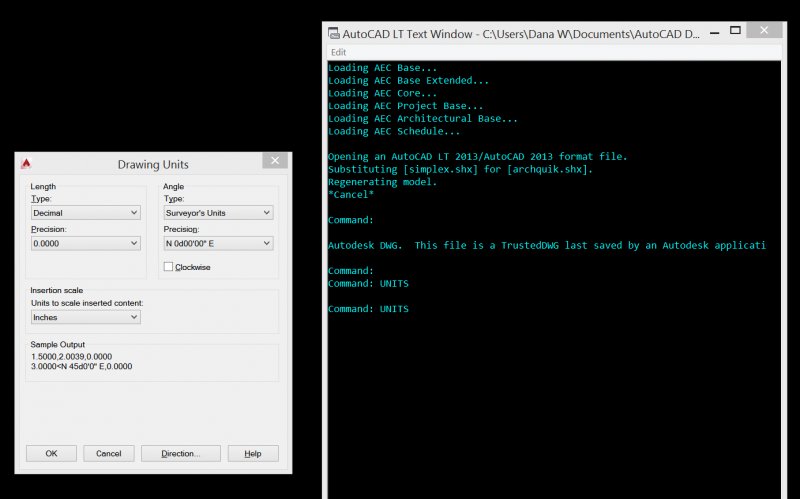

SEANT Posted May 17, 2011 Share Posted May 17, 2011 Sorry I can't see your attachment Thats odd. The image shows a before and after shot of the UNITS dialog box for AutoCAD. The box differs from the one you show for Architecture 2011, but not by much. Those two system variables are those used to change the Unit Type (Decimal, Engineering, etc.) and the "Units to scale inserted content: " (Millimeters, Inches, etc.) Quote Link to comment Share on other sites More sharing options...
gsteel Posted May 17, 2011 Author Share Posted May 17, 2011 I have gone through all the settings in the options and one found one glaring mistake... I have my profile set to US. metric...... I have changed it to UK metric and all seems as I need it.. all the properties etc are now showing in mm. Sorry for wasting time but the process has got me there. Thanks for everyones help (even SLW210 :wink:) Quote Link to comment Share on other sites More sharing options...
