I like to write a text between first and second vertex of a selected Polyline. please help me to get first vertex (p1) and second vertex (p2) of a polyline. rest of things i can do myself. Thanks in advance

Hi everyone, I am a software developer , i program in C# C++ and Java, but lately i have been given a task to help out our engineering department to write some code + script to fix cad prints which they have issues with. our problem is we use a third party application which generates an AutoCad drawing. this third part application sets the dimscale to 1:000; But the drawing's title block scale attribute has has the correct scale value. My task was to write code in lisp and our script to automate this process; which will requires the program to read the value for the scale attribute and apply it to the drawing dimscale. after reading some tutorials and searching the web i cam across some functions that did most of my task...Thanks to this community and its forums. my main function that reads the attribute value i got from on of the threads as shown below: (defun c:AttLst (/ ss eLst bEnt aEnt aEntLst aVal blkLst) (vl-load-com) (if (setq ss (ssget "X" (list (cons 0 "INSERT") (cons 66 1) (if (getvar "CTAB") (cons 410 (getvar "CTAB")) (cons 67 (- 1 (getvar "TILEMODE"))))))) (progn (setq eLst (vl-remove-if 'listp (mapcar 'cadr (ssnamex ss)))) (foreach e eLst (setq bEnt (cdr (assoc 2 (entget e))) aEnt (entnext e)) (while (= "ATTRIB" (cdr (assoc 0 (setq aEntLst (entget aEnt))))) (if (= (cdr (assoc 2 aEntLst)) "SCALE") (progn (setq aVal (cdr (assoc 1 aEntLst)) blkLst (cons (cons bEnt aVal) blkLst)))) (setq aEnt (entnext aEnt))))) (princ "\n<!> No Attributed Blocks Found <!>")) (alert (vl-princ-to-string blkLst)) (princ)) This function works great when the scale value has no white spaces; but when there is white spaces it only returns the right side of the scale value example 1 : SCALE 1:5 ==> Result = (( TitleBlockName. 1:5)) example 2 : SCALE 1 : 10 ==> Result = (( TitleBlockName. 1 : )) as you see in example 2 the return value is missing the right side value can you please help me with this issue to figure out why its returning the left side only?

Hey guys, I'm trying to make a lisp where the user would pick a point in the model and the lisp would create a multileader in paperspace with the coordinates pulled from the model. Here's the code I got so far: (defun c:test (/ WorkingPoint Easting Northing Point) (command "_.mspace" );;end command (setq WorkingPoint (getpoint "\nWhere is Working Point?: ")) (setq Northing (cadr WorkingPoint));;set "y" value of WorkingPoint to Northing (setq Easting (car WorkingPoint));;set "x" value of WorkingPoint to Easting (command "_.point" WorkingPoint );;end command (setq point (entlast));;set the workingpoint to point (command "_.chspace" point "" "" );;end command (setq pspaceworkingpoint (entget point)) (setq mleaderinspt (list (car pspaceworkingpoint)(cadr pspaceworkingpoint))) (princ mleadinspt) );;end defun Whenever I run this, for the "mleaderinspt" variable I get nilnil What I want to do is create the multileader insert point where the user picked the original working point but I'm having a hard time translating that to the paperspace. Please note I haven't added error checking yet as this is still in the developmental phase/proof of concept. Any and all help is appreciated. Thanks! EDIT: Think I figured it out, I'll update this thread if it works.

Hi Guys, I'm creating a layer setting pull down menu, in order to migrate my cad to revit I would like to define the linewight. So far I managed to create a command with a dashed line: (defun c:layA-SEC-LIH-005() (command "layer" "m" "A-SEC-LIH-005""C" "magenta" "" "l""DASHED2" "" "") and another one with the lineweight (defun c:layA-SEC-LIH-005() (command "layer" "m" "A-SEC-LIH-005""C" "magenta" "" "_LW" 0.10"" "") but I haven't been able to create one that combines the 2 of them.. any help? Cheers Roberto

Recently upgraded to Civil 3D 2015 from 2013 but am having trouble using one of my most used AutoLISP commands to connect a string of points (connectpts) When I load the command I get the following error message; "; error: Automation Error. Problem in loading application" Any ideas out there? This is file; ;|Platform: AutoCAD Civil 3D Routine to draw 3dPoly between points with identical descriptions, in ascending Pt# order. by Jeff Mishler, July 25, 2007. Tested only in C3D2008. Type (vl-load-com) at command prompt first. |; (vl-load-com) (defun c:Connectpts (/ appstr coords desc grps pline point point#s points pt qbldr ss tmpgrp vrsn ) (setq vrsn (vlax-product-key)) (cond ((vl-string-search "R16.2" vrsn)(setq appstr "3.0"));;2006 ((vl-string-search "R17.0" vrsn)(setq appstr "4.0"));;2007 ((vl-string-search "R17.1" vrsn)(setq appstr "5.0"));;2008 ((vl-string-search "R17.2" vrsn)(setq appstr "6.0"));;2009 ((vl-string-search "R18.0" vrsn)(setq appstr "7.0"));;2010 ((vl-string-search "R18.1" vrsn)(setq appstr "8.0"));;2011 ((vl-string-search "R18.2" vrsn)(setq appstr "9.0"));;2012 ((vl-string-search "R19.0" vrsn)(setq appstr "10.0"));;2013 ((vl-string-search "R19.1" vrsn)(setq appstr "11.0"));;2014 ((vl-string-search "R20.0" vrsn)(setq appstr "12.0"));;2015 (t (alert "This version of C3D not supported!")) ) (if (and appstr (or *acad* (setq *acad* (vlax-get-acad-object)) ) (or *AeccApp* (setq *AeccApp* (vla-getinterfaceobject *acad* (strcat "AeccXUiLand.AeccApplication." appstr))) ) (or *AeccDoc* (setq *AeccDoc* (vlax-get *AeccApp* 'ActiveDocument)) ) (setq ss (ssget ":S:E" '((0 . "AECC_COGO_POINT")))) ) (progn (setq pt (vlax-ename->vla-object (ssname ss 0)) desc (vlax-get pt 'RawDescription) grps (vlax-get *AeccDoc* 'PointGroups) tmpgrp (vlax-invoke grps 'Add "__TEMP__") ) (setq qbldr (vlax-get tmpgrp 'querybuilder)) (vlax-put qbldr 'IncludeRawDescriptions desc) (if (> (length (setq points (vlax-get tmpgrp 'Points))) 1) (progn (setq point#s (vl-sort points ' (setq points (vlax-get *AeccDoc* 'Points)) (foreach pt# point#s (setq point (vlax-invoke points 'Find pt#)) (setq coords (append coords (list (vlax-get point 'Easting) (vlax-get point 'Northing) (vlax-get point 'Elevation) ))) ) (setq pline (vlax-invoke (vla-get-modelspace *AeccDoc*) 'Add3dPoly coords)) (vla-put-layer pline (vlax-invoke *aeccdoc* 'getvariable "Clayer")) ) ) (vlax-invoke qbldr 'clear) (vlax-invoke grps 'remove "__TEMP__") ) ) (princ) )

We have some text objects that having long text strings like 500 character so i need a lisp that can split the text into 45-45 characters and make them separate object of 45 character. the reason of this is we have to export the text in other software and that software don't support more than 45 character string. so now we are manually spiting them.

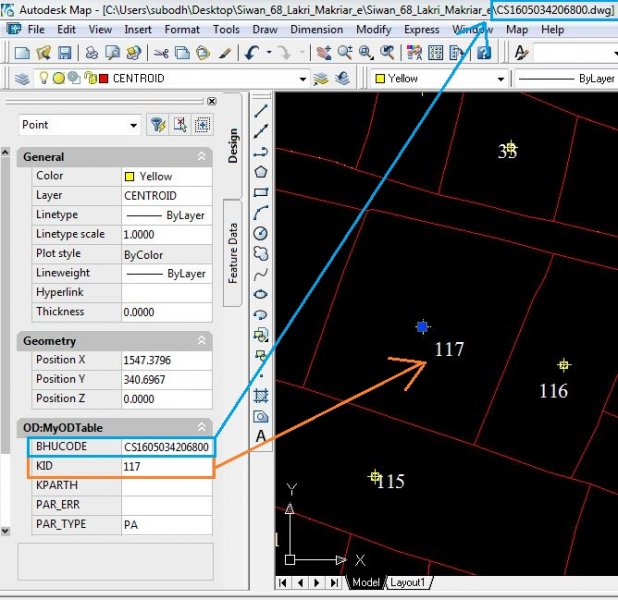

I am using autocadmap 2004 and i have closed polylines parcels in my drawing. Inside the parcel i have centroid and Parcel ID as text in separate layers. I have a object data table too. now i need to attach the object data table to all the centroids and put the parcel id as a value in the KID field of the table for all the parcels centroids respectively. Thanks Subodh

Can we count text or block inside the closed polyline using Autolisp.

Hi All, I'm experiencing a strange behavious of AutoCAD 2008 while using copy multiple via ACAD.lisp, the leaders and arrow goes missing (text is still visible) for the first copy but when I copy it for second time and there on within the same command, the leader and arrow shows up correctly. It requires regen to bring back the missing arrow & leader. I have triad different variable but nothing seem to work. However, the standard COPY command seem to work fine. I'm also seeing random issue while copying dimensions as well. I do not like regenerating everytime after copy considering the file is huge takes more time. At the same time, I'm addicted of using short commands via ACAD.lsp. Here is what my customized mutliple copy command looks like. (Defun C:C (/ SS1) (Setq SS1 (ssget))(Command "COPY" ss1 "" "m" pause pause)) Any suggestions?

(vl-directory-files "C:\\Users\\wpe\\Documents" "*.dwg") Returns a list of DWGs in a folder, but is there to have it return a list of DWGs in the folder and sub-folders?

LISP to query MS SQL Server Database return results as list of strings. (defun getMySqlData ( Name / ) (setq pm Name SQLCon "Server=OurServer;Database=engineering;Trusted_Connection=True" SQLStatement1 "USE enginering SELECT ID FROM Projects WHERE ProjectName = pm" SQLStatement2 "USE enginering SELECT * FROM LineList WHERE ProjectID = ResultsID" ) ; I'm trying to use SQLStatement1 to get the project ID. ; So that I can use it to run this SQLStatement2 ; Then return the results of the above as a list of strings. )

I have tried several combination and gone thru about a 100 posts but I can't figure out what I am doing wrong. I am filtering thru objects and pulling out a 3D coordinate from the database. Then I am turning that into a 3 point list (x y z). Then I want to create a list of those points and add to them to the existing list as the program filters thru the remaining objects from the selection set. (progn (setq unitpoint_orig (vl-string-right-trim ";" (substr (vlax-get entvla 'points) 12))) (if (and(or (= Z_pref "Y")(= Z_pref "y"))(/= Z_height nil)) (progn (setq unitpoint_mod (comma_pull unitpoint_orig "REAL_NUM")) (setq unitpoint (list (car unitpoint_mod) (cadr unitpoint_mod) (caddr Z_height))) ) (setq unitpoint (comma_pull unitpoint_orig "REAL_NUM")) ) (setq unitpoint_lst (append unitpoint_lst 'unitpoint)) ;(command "insert" pl_block unitpoint "1" "1" "0") ) Current Result: (105.13 3165.22 0.0 105.13 3194.65 0.0 105.13 3142.5 0.0) Desired Result: ((105.13 3165.22 0.0)(105.13 3194.65 0.0)(105.13 3142.5 0.0)) Once I get this part working, I am then planning on filtering for duplicates using Lee Mac's subroutines. Then inserting based off those points.

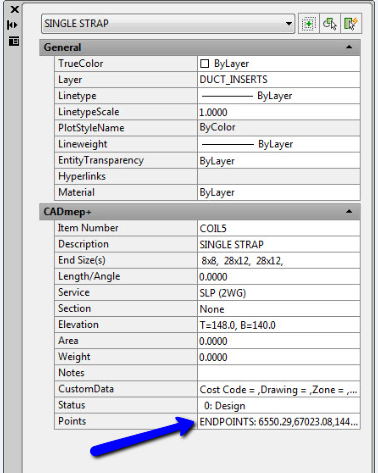

Does anyone have any knowledge on how to extract the point information from a CADMEP entity without having the CADMEP information? Our clients give us there files and we have to place blocks at each hanger. Extracting the coordinates to populate the blocks would be a huge time saver.

Hello All, I have been seeking an individual to write an AutoLISP program for some time using the normal routes, but given availability and contact it has lead me to this forum to see if anyone would be interested. There is a detailed scope available. However in brief; the task requires generation of multiple dwg for a laser marker containing text and hatches from an excel file that contains multiple batches of such data. Before I post anything further, I'd like to check if such discussions are welcome here...

Hello! I just stared working in AutoLISP a few days ago, and I've come across a problem. I need to create a dimension line where the dimension value is dependent on an input value. So if the input is y, then the text on the dimension line should equal 4.5*(y+1) inches, and it also needs to have a character width of 0.75. Currently, it just displays 4 1/2". As I understand it, this would be a real number, meaning I can't concatenate it with the inches symbol. Any help would be greatly appreciated! (defun c:retan (/ p1 p2 p3 p4 x y i j)(setvar "osmode" 0) (setq p1 (getpoint "\nfirst corner of rectangle: ")) (setq x (getint "\nEnter Horizontal Count: ")) (setq y (getint "\nEnter Vertical Count: ")) (setq p3 (list (+ (+ 1.625 (* 0.8125 (- x 1))) (car p1))(+ (+ 1.625 (* 0.8125 (- y 1))) (cadr p1)))) (setq p2 (list (car p1)(cadr p3))) (setq p4 (list (car p3)(cadr p1))) (command "pline" p1 p2 p3 p4 "c") ;c closes the rectangle's fourth side (entmakex (list (cons 0 "DIMENSION") (cons 100 "AcDbEntity") (cons 8 "E-DIMS") ;; 8 Layer (cons 100 "AcDbDimension") (cons 10 (list (- (car P1) 0.7) (cadr P2) 0)) ;; 10 Arrow Node (cons 11 (list (- (car P1) 0.9) (/ (+ (cadr P2)(cadr P1)) 2) 0)) ;; 11 Text Position (cons 70 160) (cons 1 "{\\W0.75;4 1/2\"}") ;; 1 Contents of Dimension Textbox (cons 71 5) ;; 71 Text Alignment (5=centered) (cons 42 0.8125) (cons 53 1.5708) ;; 53 Text Rotation (cons 3 "REW-1_.125txt") (cons 100 "AcDbAlignedDimension") (cons 13 P1) ;; 13 point on line (cons 14 P2) ;; 14 point on line (cons 50 1.5708) ;; 50 Angle (radians) 1.5708 (cons 100 "AcDbRotatedDimension"))) (setvar "osmode" 16383)(princ) )

Hi folks, I need help on fixing the arrowhead. Some drawings come with default setting for Arrowheads as OPEN. When I run an utility (which inserts a leader with custom texts as a block), it inserts arrowheads as open. My requirement is to add Solid arrowheads always. I tried to force it via below code but its not forcing. Can anyone suggest? What could be wrong? (defun Addleader (/ pt1) (setvar "DIMLDRBLK" ".") (while (setq pt1 (getpoint "\nInserting task description note, Specify Arrow End Point or hit Enter to close:")) (Command "_INSERT" "CP TEXT" pt1 "" "" "") (command "explode" "l") );end while ) ;end defun EDIT: I think it has to do something with the default DIMSTYLE. And the block I'm trying to insert it on the Standard dim style. Not sure how to handle this.

I wrote a sub-routine to update drawing borders. There is a command in CADWorx called IGO which creates isometric drawings. I wanted have this command call my function which updates the borders. But my code doesn't work. (defun c:igo ( / ) (setvar "cmdecho" 0) (command "igo") (setvar "cmdecho" 1) (runisoborderupdate) (princ) )

I want to inform you that BabaCAD is updated and you can download new 1.3 release at official website http://www.babacad.com or you can read great reviews at softandapps.info (spain), 4cad.info (poland), download.cnet.com etc... Most important to tell about this new release is AutoLisp compatibility (for most .lsp files). LISP is available as free extension module and you can download it from babacad website. LISP is beta and next updates will come with missing functions and fixes. LISP module comes with examples loaded at startup (chcolor.lsp, drawextent.lsp, gear.lsp). Users can edit bcad.mnu file for loading favorite lisp routines/commands and create custom toolbars (read bcad.mnu in support folder for details). defun c:mycommand (/ var1 var2) is supported so you can define custom commands. Regards, Mirza

In a function how do you get it to not go any further? The code below doesn't exit the function. (if (or (= dir (getroot)) (= dir (strcat (getroot) "\\Titleblocks"))) (progn (princ "\nHey you’re not allowed to delete files from this folder! ") end ) ) Apparently end doesn’t do what I thought it did . . .

If using a Partial customization file that is still in the process of being updated regularly or you’d like that option to updated it, is the best practice to load it via the acad.lsp and your loader through the acad.lsp?

Do you need a separate .dcl file to load each dialog box?

I have 2 questions about a dialog box I wrote. 1. The drop down boxes aren’t wide enough to display all of the text. How do I fix this? 2. Currently in order to select a second line in the list box you have to hold down the shift key. How can I change it so that the selections remain selected without holding down the control key? The command that luanches the dcl (defun c:bprint ( / ) (setq retlist1 nil) ;;; lm:directorydialog ;;; Author: Lee Mac, Copyright © 2013 - www.lee-mac.com ;;; (setq thedirectory (lm:directorydialog "Select folder: " nil 0)) (if (/= thedirectory nil) (setq List1 (vl-directory-files thedirectory "*.dwg")) end ) (setq List2 (list "")) (batch thedirectory List1 List2) (if (/= retlist1 nil) (progn (if (/= (findfile "BPlotData.txt") nil) (setq filedata (readfile (findfile "BPlotData.txt") ) files (cdr filedata) batchplotfiles (list ) ) ) (foreach file files (setq batchplotfiles (append batchplotfiles (list (strcat "open \"" thedirectory "\\" file "\" (mybatchprint) ZOOM E close Y") ) ) ) ) (makefile (strcat (strcat "C:\\Users\\" (getvar "loginname") "\\Documents") "\\" "BatchPlot.scr" ) batchplotfiles ) (command "_.script" (strcat "C:\\Users\\" (getvar "loginname") "\\Documents\\BatchPlot.scr") ) ) ) ) The function the runs the dcl (defun batch ( mydir lista listb / prin ) (setq dir mydir poplist1 (list ) mylist1 lista mylist2 listb ) (setq poplist1 (getplotters) poplist2 (getplotstyles) ) (if (not (setq dcl_id (load_dialog "batch.dcl"))) (progn (alert "The DCL file could not be loaded!") (exit) ) (progn (if (not (new_dialog "batch" dcl_id)) (progn (alert "The BATCH definition could not be loaded!") (exit) ) (progn (start_list "poplist1" 3) (mapcar 'add_list poplist1) (end_list) (start_list "poplist2" 3) (mapcar 'add_list poplist2) (end_list) (start_list "mylist1" 3) (mapcar 'add_list mylist1) (end_list) (action_tile "pickdir" " (setq pickdir \"Yes\")(done_dialog 1)") (action_tile "accept" "(saveVars)(done_dialog 2)") (action_tile "cancel" "(done_dialog 3)") (setq ddiag (start_dialog)) (unload_dialog dcl_id) (if (= ddiag 1) (princ "\nSelect directory . . . ") ) (if (= ddiag 2) (princ "\nPlease wait. . . ") ) (if (= ddiag 3) (princ "\nBatch print has been cancelled! ") ) ) ) ) ) (princ) ) The DLC code batch : dialog { : boxed_column { : row { : popup_list { label ="Choose printer"; key = "poplist1"; height = 15; width = 30; multiple_select = true; fixed_width_font = true; value = "0"; } } : row { : popup_list { label ="Choose plot style table"; key = "poplist2"; height = 15; width = 30; multiple_select = true; fixed_width_font = true; value = "0"; } } : list_box { label ="Choose Item"; key = "mylist1"; height = 15; width = 25; multiple_select = true; fixed_width_font = true; value = ""; } : row { : button { key = "accept"; label = " Print "; is_default = true; } : button { key = "cancel"; label = " Cancel "; is_default = false; is_cancel = true; } } } }

I was making a centerline tool acts kind of like a polyline. The routine will continue to call itself until it no longer gets a value for the getpoint. But that doesn’t exit cleanly. Please help! (defun clin ( point / pt1 pt2 ) (if (/= point nil) (if (= (vl-symbol-name (type point)) "LIST") (progn (setq pt1 point pt2 (getpoint "\nSpecify next point: " pt1) ) (command "line" pt1 pt2 "") (clin pt2) ) ) (princ) ) (princ) )

AutoLISP and VisualLISP expert required for developing and improving our company’s custom LISP routines? We are an Architectural firm and create all our drawings (Plans, Sections, Elevations and Details) in 2D with “Color based plotting (CTBs)”. We mainly use vanilla AutoCAD 2006-2013 and also have BDS Premium subscription. We have a legacy process where we assemble our 2D architectural drawings in a “multi-layered cake” kind of format. Each level/floor has same few layers (e.g. Lvl 1 = W_1, N_1 H_1, Lvl 2 = W_2, N_2, H_2). We use CTB for plotting and have a collection of very simple legacy AutoLisp routines that do the following: • Create new layers per our standards • Isolate layers in modelspace or pspace viewports by the level • Deal with xRef layers • Basic polyline, area, etc. functions • Etc. The job involves developing a single AutoLISP file or a suite of files (*.lsp + *.dcl + *.arx + *.vlx). You will be explained the intent and desired end-result of each routine. You will have a free hand to come up with the code, algorithm and even suggest better ways of doing things. Maybe even adding to the repertoire of macros we have. Here are the criteria for the job. • Your work will be submitted to and evaluated by the CAD Managers and AutoLISP experts in the office. • The AutoLisp code should be well structured, logical, efficient and well documented so we can “tweak” it in future. • The code should be “future proof”, portable and cognizant of changes that AutoDESK can make to AutoCAD in the future • You may suggest newer interface features and ARX/.NET/VBA in addition to DCL for improving the interface. • You will have access via RDP (remote desktop) to our environment (Mixed AutoCAD and ACA 2013) for testing and debugging. • You will use exisiting built-in features, express tools and “open source”internet code rather than re-inventing the wheel. • Generic AutoCAD Architecture features (e.g. AEC Modify Tools) can be used when they are the best option. The quality of your work may lead to an ongoing relationship and contract work. Thank you in advance for your interest and consideration.

How can we copy an object in a drawing and paste it at multiple places using Autolisp. I have a dwg template that having many symbols in it. i have to use that symbols again and again in drawing. which symbol i want to use i select it than right click and copy and paste where i want to use. same thing happens for all the symbols whenever i need them. can we directly copy a particular object (hatch symbols, block etc) and paste it wherever we need it using Autolisp. We don't want to go to the original symbol location to select it and copy it to paste where we want to use it using Autolisp.: roll:
