Dimension values to Excel

[fixo]

Try this lisp to numbering holes, but as I see in your drawing

the very top center hole on "Mounting holes" layer is a bit up to other circles in this row




;;---------------------------- code start -------------------------------;;
;;  label holes
(defun C:TCL  (/ *error* cnt ent_list emake_txt pt_list ss txt_list)
 (vl-load-com)
 (defun *error* (msg)
 (if
   (vl-position
     msg
     '("console break"
"Function cancelled"
"quit / exit abort"
      )
   )
    (princ "Error!")
    (princ msg)
 )
 (command "_undo" "_e")
 (princ)
)
(defun emake_txt  (pt txt hgt)
 ;;  middle center  ;;
 (entmake (list '(0 . "TEXT")
  '(100 . "AcDbEntity")
  '(67 . 0)
  '(8 . "0")
  '(100 . "AcDbText")
  (cons 10(list (- (car pt) (* hgt (strlen txt) 0.47))(- (cadr pt)(/ hgt 2.))(caddr pt)))
  (cons 40 hgt)
  (cons 1 txt)
  '(50 . 0)
  '(41 . 1)
  '(51 . 0)
  '(7 . "Standard")
  '(71 . 0)
  '(72 . 1)
  (cons 11 pt)
  '(100 . "AcDbText")
  '(73 . 2))))
 (command "_undo" "_be")
  (setvar "cecolor" "5")
 (setq ss (ssget (list (cons 0 "CIRCLE")(cons 8 "HOLES,MOUNTING HOLES"))))
 (setq ent_list (vl-remove-if 'listp (mapcar 'cadr (ssnamex ss))))
 (setq pt_list
 (mapcar (function (lambda (x)
       (cdr (assoc 10 (entget x)))))
  ent_list)
)

;;  1. Sort points by X+ then by Y-
 (setq pt_list (vl-sort pt_list
   '(lambda (a b)
      (< (cadr a) (cadr b)))
   )
)
 (setq pt_list (vl-sort pt_list
   '(lambda (a b)
      (cond
        ((= (cadr a) (cadr b))
         (< (car a) (car b)))
        (< (cadr a) (cadr b))))
   )
)
;;_____________________________________________________________;;
;;  2. Sort points by X+ then by Y+
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (> (cadr a) (cadr b)))
;;;    )
;;; )
;;;
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (cond
;;;         ((= (cadr a) (cadr b))
;;;          (< (car a) (car b)))
;;;         (< (cadr a) (cadr b))))
;;;    )
;;; )

 ;;  3. Sort points by X- then by Y+
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (> (cadr a) (cadr b)))
;;;    )
;;; )
;;;
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (cond
;;;         ((= (cadr a) (cadr b))
;;;          (> (car a) (car b)))
;;;         (< (cadr a) (cadr b))))
;;;    )
;;; )

   ;;  4. Sort points by X- then by Y-
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (< (cadr a) (cadr b)))
;;;    )
;;; )
;;;
;;;  (setq pt_list (vl-sort pt_list
;;;    '(lambda (a b)
;;;       (cond
;;;         ((= (cadr a) (cadr b))
;;;          (> (car a) (car b)))
;;;         (< (cadr a) (cadr b))))
;;;    )
;;; )
 ;;_____________________________________________________;;
 (setq cnt 0)
 (mapcar (function (lambda (x)
       (progn
  (setq cnt (1+ cnt))
  (emake_txt x (itoa cnt) 0.375))
       ))
  pt_list
  )

 (princ)
 )
(prompt "\n\t\t---\tStart command with TCL\t---\n")
(prin1)
(or (vl-load-com)
   (princ))
;;----------------------------code end-------------------------------;;

[$anthony]

Your lisp routine works as advertised - but it only exports the dimension length. Is there any way to modify the code to export all of the dimension overrides?

[fixo]

Hi, $antony,

Welcome on board!

Please, upload a drawing, and draw in there

what you want to give as result, pehapsm the screenshot

may helps for me too

[$anthony]

DIMENSION EXAMPLE.dwg Hi Fixo - i was attempting to reply to a different thread of yours that had a LISP routine that extracted the length of dimensions to an excel file. i have a bunch of dimensions with text overrides that i'd like to extract to excel - not just the dimension length, but the overrides as well. i am attaching an example

[fixo]

Well, this is much better ,

I will be back when I'll do it

Cheers

[fixo]

[ATTACH]42087[/ATTACH] Hi Fixo - i was attempting to reply to a different thread of yours that had a LISP routine that extracted the length of dimensions to an excel file. i have a bunch of dimensions with text overrides that i'd like to extract to excel - not just the dimension length, but the overrides as well. i am attaching an example



Here is what I ended up with

Tell me how it will works on your machine

;;---------------------------- code start
-------------------------------;;
;; fixo () 2013 * all rights
released
(defun C:dovx (/ *error* abks aexc asht col column data dimz
dim_data
         elist en i
prec pt row ss tmp xbks xcel xlcolumns xshs)


(vl-load-com)

(defun *error* (msg)

(if
   (vl-position

msg
     '("console break"
"Function
cancelled"
"quit / exit
abort"
)

)
    (princ "Error!")

(princ msg)
    )
(and dimz (setvar "dimzin"
dimz))
 )
(if (setq ss (ssget (list (cons 0 "dimension"))))


 (progn
   (setq dimz (getvar
"dimzin"))
   (setq prec (getvar
"dimdec"))
   (setvar "dimzin" 3)
   (setq
i -1)
   (repeat (sslength
ss)
     (setq en   (ssname ss (setq i
(1+ i)))
    elist (entget
en)
    pt (cdr (assoc 11
elist))
    tmp   (list (car pt) (cadr
pt)(caddr pt) (cdr (assoc 42 elist))(cdr (assoc 1
elist)))
    data  (cons tmp
data))
     )


   (setq dim_data (vl-sort
data
      (function (lambda (e1 e2) (<
(car e1) (car e2))))))
   (alert "Click \"Close\" to Save
Excel File Only")
   (setq aexc (vlax-get-or-create-object
"Excel.Application")
  xbks (vlax-get-property aexc
'Workbooks)
  abks (vlax-invoke-method xbks 'Add)

xshs (vlax-get-property abks 'Sheets)
  asht (vlax-get-property
xshs 'Item 1)
  xcel (vlax-get-property asht
'Cells)
  )
   (vla-put-visible aexc
:vlax-true)
   (vla-put-name asht
"DimOverrides")
   (vlax-put-property aexc
'UseSystemSeparators :vlax-false)
   (vlax-put-property aexc
'DecimalSeparator (vlax-make-variant "."
)

   (setq row 1
  col
1)

   (vlax-put-property
xcel  'NumberFormat
     (vlax-make-variant
(rtos 0 2 prec)
     )

(setq xlcolumns (vlax-get-property asht 'columns))
   (setq
column (vlax-variant-value

(vlax-get-property

xlcolumns
      'item 4))

)
(vlax-put-property column
'NumberFormat
     (vlax-make-variant "@"

     )


  (foreach line dim_data
    (setq col
1)
    (foreach item
line
(vlax-put-property
xcel
"Item"
row
col
(vl-princ-to-string
(nth (1- col) line ))
)

(setq col (1+ col)))
    (setq row (1+ row)))


   (vlax-invoke-method xlcolumns 'Autofit)
 (gc)

   (vlax-invoke-method

abks
     'SaveAs

"C:\\Test\\ImportDims.xls"

-4143
     nil

nil

:vlax-false

:vlax-false

1
     2

)
   (mapcar
'(lambda(x)

(progn

(vl-catch-all-apply
     'vlax-release-object (list
x))
   (setq x
nil))

)
    (list xcel asht xshs abks xbks
aexc)
    )


(gc)
   )
)
 (*error* nil)

(princ)
 )
(prompt "\n\t\t---\tStart command with
DOVX\t---\n")
(prin1)
(or (vl-load-com)

(princ))
;;----------------------------code
end-------------------------------;;

Edited June 25, 2013 by fixo
spell check

[sinnerboy]

If I may jump aboard to request a further modification -please. I would like to export dimension texts to an Excel sheet and then overwrite those texts and then import those overwrites.



You see I want to use dimensions not as dimensions at all but as area describers across architectural elevations.



SO for example if I have a dimension string that states 6500 / 11000 / 5000 I would like to handy way to change that to read Lobby / Reception/ Office etc



Is this possible ?

[fixo]

If I may jump aboard to request a further modification -please. I would like to export dimension texts to an Excel sheet and then overwrite those texts and then import those overwrites.



You see I want to use dimensions not as dimensions at all but as area describers across architectural elevations.



SO for example if I have a dimension string that states 6500 / 11000 / 5000 I would like to handy way to change that to read Lobby / Reception/ Office etc



Is this possible ?

I think yes,

Upload the sample drawing in A2007 version with few rooms in there,

and write explanation in the very first room,

just to to make me more sence

[bojanamit]

fixo, i need help with lisp U call dx (dimension value in excel)....it's work fine when dimension have no comma (example if is dimension 423 in excel I got 423, but if is dimension 423.15 then in my excel sheet i got 42315.00 )...i use this for making bill of quantity. So in one row I have dimension like in a cad, corect, and dimension #### incorect...I need help it's burning...ty...sorry for bad english and spelling!

[fixo]

Welcome aboard, bojanamit!

Please take a look at my response in posts #10 & #12

[bojanamit]

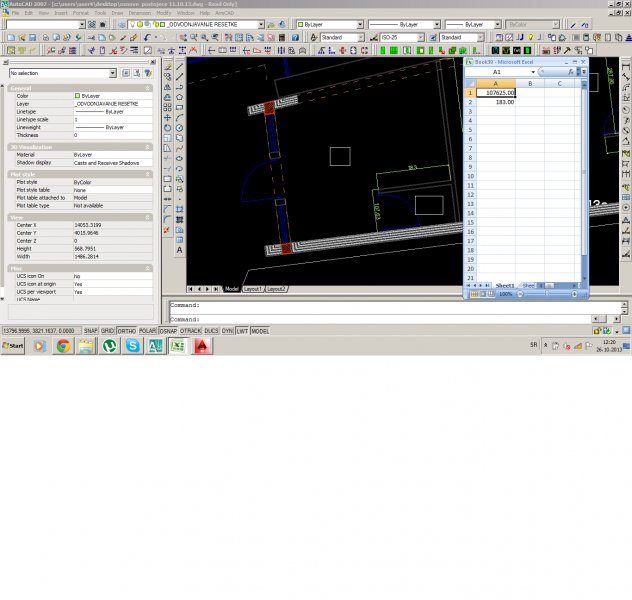

so it look like this...If aligned dimension is not decimal lisp work fine, but in thi s case i have this!

[bojanamit]

i saw that so many times but nothing...now I check or unchek some tabs in excel options ( i don't know whic one )) ) and it work fine...TY fixo, U r GREAT!

[fixo]

Glad, you solved it by yourself

Cheers

[bojanamit]

I have one more question. Last year i found Ur lisp named FA for length and area of polyline with leader...I use that with field command and its ok for litle objects...I manually changed in excel dimension. well my question is is there a lisp routine for selecting many polylines and get length/area of each in excel sheet! or maybe all polylines in one layer. TY

[fixo]

Please, start a new thread with this question.

There are much programmers smarter than me,

probably somebody else will be helps

Sorry, but I haven't have a time to do this work

[bojanamit]

OK THANKS! oh no thank you very much...i'll try that with data extraction in AC 2014...

[minhphuong_humg]

The same thing on Lisp



(defun C:dx (/ *error* abks aexc asht col data dim_data elist en i row row_data ss tmp xbks xcel xshs)

(vl-load-com)

(defun *error*	(msg)
 (if
   (vl-position
     msg
     '("console break"
"Function cancelled"
"quit / exit abort"
)
     )
    (princ "Error!")
    (princ msg)
    )

 )
(if (setq ss (ssget (list (cons 0 "dimension"))))

 (progn
   (setq i -1)
   (repeat (sslength ss)
     (setq en	  (ssname ss (setq i (1+ i)))
    elist (entget en)
    tmp	  (cons (cdr (assoc 11 elist)) (cdr (assoc 42 elist)))
    data  (cons tmp data))
     )

   (setq dim_data (vl-sort data
		    (function (lambda (e1 e2) (< (caar e1) (caar e2))))))
   (alert "Close Excel File Only")
   (setq aexc (vlax-get-or-create-object "Excel.Application")
  xbks (vlax-get-property aexc "Workbooks")
  abks (vlax-invoke-method xbks "Add")
  xshs (vlax-get-property abks "Sheets")
  asht (vlax-get-property xshs "Item" 1)
  xcel (vlax-get-property asht "Cells")
  )
   (vla-put-visible aexc :vlax-true)
   (setq row 0
  col 1)


   (repeat (length dim_data)
     (setq row_data (car dim_data))
     (setq row (1+ row))
     (vlax-put-property
xcel
"Item"
row
col
(vl-princ-to-string (cdr row_data))
)
     (setq dim_data (cdr dim_data))
     )

   (vlax-invoke-method
     abks
     'SaveAs
     "C:\\ImportDims.xls"
     -4143
     nil
     nil
     :vlax-false
     :vlax-false
     1
     2
     )

   (vlax-release-object xcel)
   (vlax-release-object asht)
   (vlax-release-object xshs)
   (vlax-release-object abks)
   (vlax-release-object xbks)
   (vlax-release-object aexc)
   (setq aexc nil)
   (gc)
   (gc)
   )
 (*error* nil)
 )
 (princ)
 )
(prompt "\n\t\t>>>\tType DX to execute\t<<<\n")
 (princ)



~'J'~



This lisp greate, however value don't round. I want value round. Example: 40.1795 = 40; 42.5987 = 43..... Please help me. Thanks.

[fixo]

Please take a look at function RTOS in the Help file

To round numbers you have to write:



(vl-princ-to-string(rtos (cdr row_data)) 2 0))

instead of:

(vl-princ-to-string (cdr row_data))

Cheers

[minhphuong_humg]

Please take a look at function RTOS in the Help file

To round numbers you have to write:



(vl-princ-to-string(rtos (cdr row_data)) 2 0))

instead of:

(vl-princ-to-string (cdr row_data))

Cheers



Thank you, however I edited (vl-princ-to-string(rtos (cdr row_data) 2 0)) because redundant ")" at ...data).

Thank fixo very much.

[minhphuong_humg]

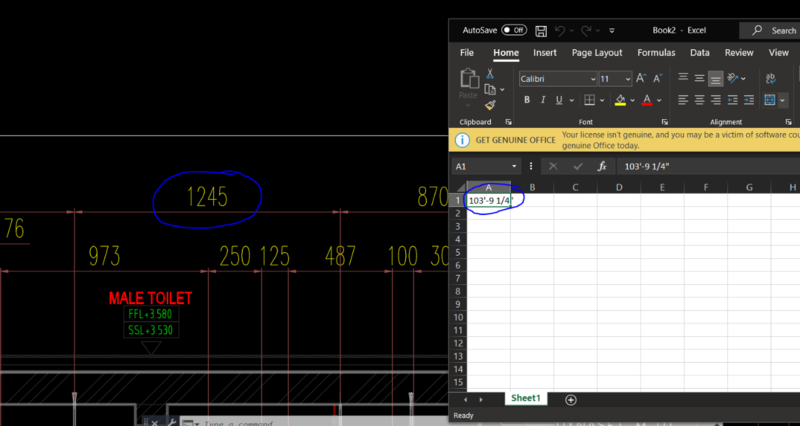

Dir, fixo. Thank you for wrote this lisp. However, I used and this lisp worked don't exactly. Because, with drawing (link) I select dimention then text out but value don't excatly. Please help me.

ImportDims.xls

Hoi.dwg
