Converting a "region" of planar surfaces to 3D solid

Recommended Posts

Alex0856

I've got the following shapes going:






The pink one on the left is a combination of planar surfaces. The shape on the right is just a basic 3D solid. The the arrow is representing the radii of both edges of the shapes, meaning they are the same.



The shape on the left is made of planars because I can't figure out for a damn how to get that into a solid - So I used the blue shape as a reference to create the pink one, using a ruled surface to get the top rounded piece.



I've Google'd the hell out of this one - now I'm stuck.



I need to make a 3D solid in the exact shape of the combined surfaces.



Help please, and thanks ahead of time.

Share this post


Link to post
Share on other sites
ReMark

I don't believe the CONVTOSOLID command will work on a planar surface.

Share this post


Link to post
Share on other sites
MikeScott

You might be able to use an extruded pline? or maybe it's a quarter of a cylinder?



I'm kinda' confused though.. How is the 3d shape on the right, different than what you want to end up with? It seems like modifying that should be the way to go.. like using the pink planes to SLICE faucets off the blue one.

Share this post


Link to post
Share on other sites
JD Mather
... using a ruled surface to get the top rounded piece.



Forget ruled surface - this one looks like a simple lofted solid solution. Attach the dwg here.

Share this post


Link to post
Share on other sites
JD Mather

I need to make a 3D solid in the exact shape of the combined surface...



I doubt you really want EXACT (looks pretty ugly to me) but in Inventor could be stitched. I think AutoCAD 2011 also has Sculpt tool.



Looks like a simple file (no proprietary info) why haven't you attached it here?

Share this post


Link to post
Share on other sites
ReMark

Agree with JDM regarding the use of Loft to construct solid.

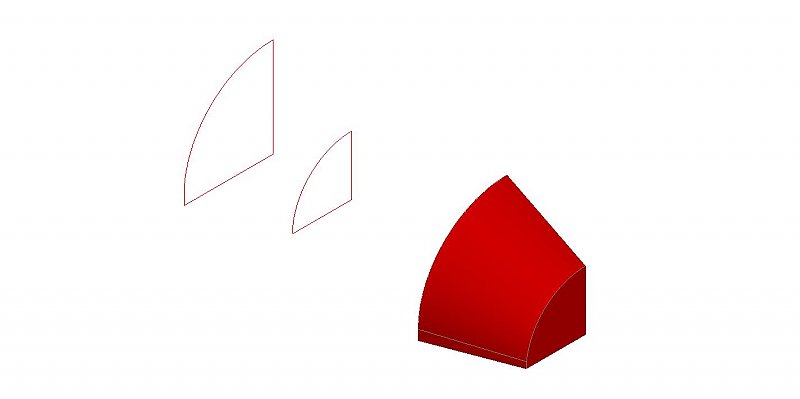

Here is an example. The two profiles to the left were created with lines and then each profile was joined using Pedit.
