Recommended Posts

kuwait

helloooooo

please help me in slicing :)


last.dwg

Share this post


Link to post
Share on other sites
ReMark

Boy, this problem looks very familiar. I believe we solved it already! LOL



Have you tried using Slice with the Surface option?



You're in luck this time. At least they gave you the angle (30 deg).

Share this post


Link to post
Share on other sites
kencaz

yeah, I seem to remember helping someone with a very very similar problem... Must be same class.






Anyway just extrude a line into a surface and slice...



KC

Share this post


Link to post
Share on other sites
kuwait

how?

i tried but i couldnt

Share this post


Link to post
Share on other sites
JD Mather
how?

i tried but i couldnt



Have you gone through the tutorials in my signature?



Attach what you have completed so far.

Share this post


Link to post
Share on other sites
kencaz
how?

i tried but i couldnt

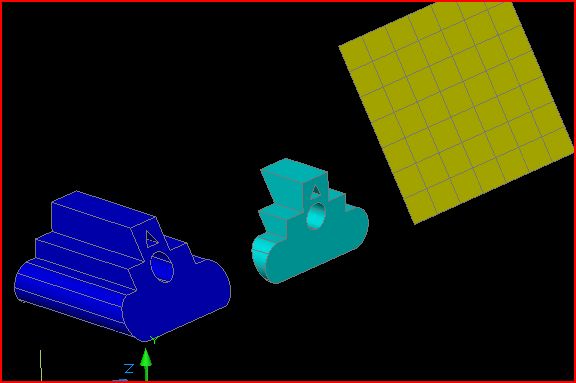

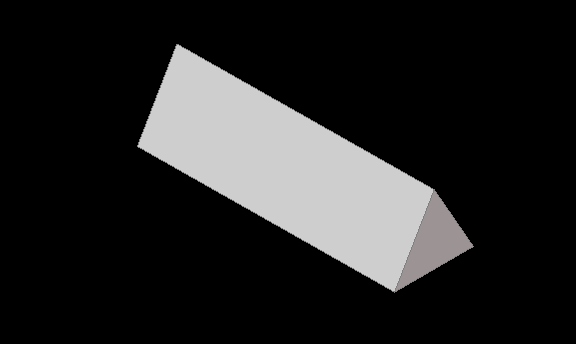

Draw a line at the angle you want in a plan view. Extrude the line to a surface, then "Slice" using the surface option and separate.






KC

Share this post


Link to post
Share on other sites
ReMark

kencaz: You make it look so simple. :lol:

Share this post


Link to post
Share on other sites
CAD89

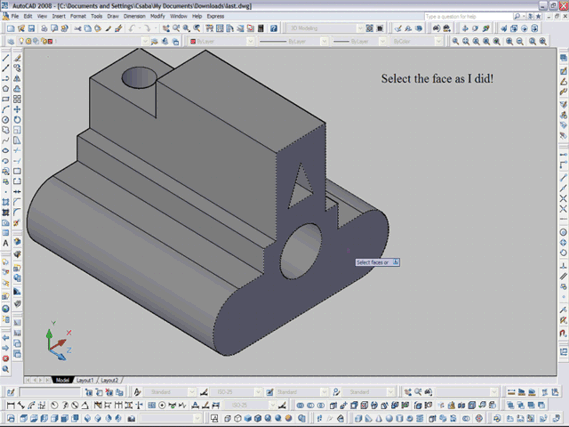

There is another way to do this than the slice command! You can use the rotate faces command! Here is what you need to do! You go to Modify>Solid editing>Rotate Faces, and then you follow the steps shown below:


Share this post


Link to post
Share on other sites
ReMark

More than one way to skin a cat. Nice.

Share this post


Link to post
Share on other sites
fuccaro

Also why to draw a line for slicing? You can enter 3 point's coords from the fly. If the UCS is like in CAD89's drawing, rotate it with -90deg. around OY (so X is along the extrusion direction).

Click for the first point, somewhere on the base edge.

@0,0,1 for the next point, and

@1



I wrote this because the question was about slicing. An other way to skin this cat: draw a box, rotate it in the right position and subtract it.

Share this post


Link to post
Share on other sites
kuwait

thank you all

please tell me

where i did wrong?

is it the angle?

Share this post


Link to post
Share on other sites
JD Mather

Why not simply solidedit revolve face? No extra geometry needed.

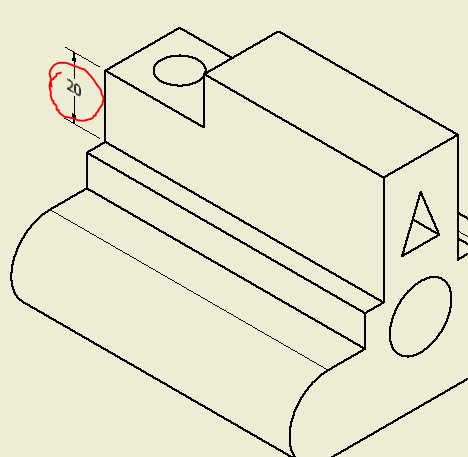

There are other problems as well.


Share this post


Link to post
Share on other sites
