qball

dtmrnd and 2000pt.dwg both seem to work. I will assume the file I am having trouble with is the file and not the lisp. No big deal. We have another project that may come up where this will come in handy, but it is rare (3rd time in 6 years).

Share this post


Link to post
Share on other sites
marmo

Ho qball,



There is an application of AutoCAD called "Point Clouds" of software house Sycode.

It 's a paid software, but once installed it allows you to make 10 free runs or for 10 days.

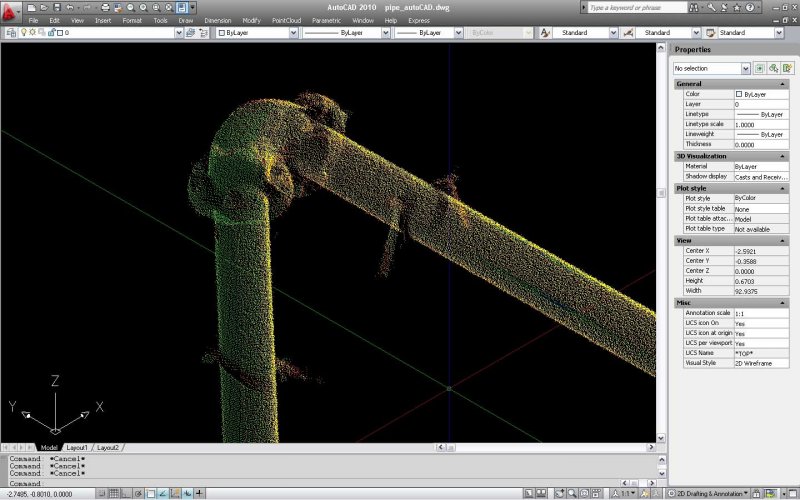

I tried to test it on a tube with a pointed LaserScan.

I modeled the pipe with only two "bas-relief" (in reality it would take many more) and although I have not had many opportunities to experiment, I think that is accurate, and has never generated errors.



Regards







Share this post


Link to post
Share on other sites
Nuttieke

Is it also possible to use these lisps on contour lines in stead of point measurements?

Share this post


Link to post
Share on other sites
marmo

Hello, you're welcome Nuttieke:)

I'm sorry, could you explain. .I do not understand what you mean.

Regards

Share this post


Link to post
Share on other sites
qball
Is it also possible to use these lisps on contour lines in stead of point measurements?



The LV lisp should work if you explode your contour lines. Try it out.

Share this post


Link to post
Share on other sites
Nuttieke

I tried it, but the contour lines are not accurate enough, I think.

Share this post


Link to post
Share on other sites
traffic_chimp

Brilliant guide & post, Thanks very much :)

Share this post


Link to post
Share on other sites
oliver

got..loading...it says (i have 2579 points loaded)



(points coordinates may be too large - move closer to 0, 0 and/or scale down)



if i should move all the points or coord. are not in right position.

any suggestion regarding this matter.



thanks

oliver

Share this post


Link to post
Share on other sites
traffic_chimp

Managed to get it to work with 10,000+ points.



Took a while though :roll:

Share this post


Link to post
Share on other sites
marmo

Hi Oliver,



generally when you use a software modeler is very important not to have too much difference between the scale of the model and measurement units sistem. It's also very important to not have the model away from the origin, to reduce the possibility of generating errors in the forms.

"(points coordinates may be too large - move closer to 0, 0 and/or scale down) "



This is a message that tells you the DTM lisp?

Share this post


Link to post
Share on other sites
marmo

Hi Nuttieke,



"I tried it, But The contour lines are not accurate enough, I think."



It 's true, if you need precision the only sure method is the triangulation with the DTM.

They are also precise the curves obtained with the lisp AC (autocurve).

If you need a accurate solids you must obtain directly from 3DFACE of DTM.

Mesh and the Loft, are only approximations ...

Useful for presentations, because they have "clean" geometries of wire mesh and smooth Loft solid.

Share this post


Link to post
Share on other sites
oliver

@ marmo

yes

Share this post


Link to post
Share on other sites
ctoshio

Hi,

Is it possible to move block or text to surface created with these tools without civil 3d?



Thanks

Share this post


Link to post
Share on other sites
marko_ribar

If DTM fails, review this thread...



Slow but if no points overlap - recommended to do OVERKILL before using code - result is guaranteed...



Regards, M.R.

Share this post


Link to post
Share on other sites
Amany AST

best post ever about Topography

thank u

Share this post


Link to post
Share on other sites
