3d intersect curve sweep


Recommended Posts

Hi all,


A little new to inventor. Using inventor 2010. I am trying to use a 3d intersection


curve to create a sweep. I want to use the 3d curve as the profile but am not able


to select it. If the image works the two lines in blue are the 2d sketches that


were used to create the 3d intersection curve and the red line is the path. The


purple line is the 3d curve.



3d sweep.jpg


Thanks in advance for any help.




Link to comment
Share on other sites

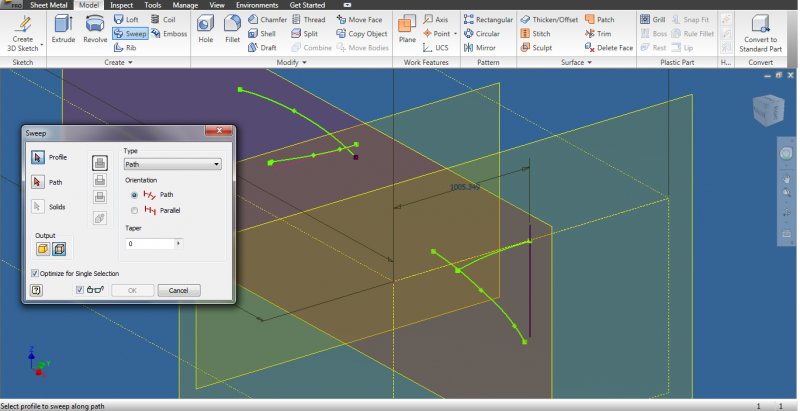

I don't see your settings in the Sweep dialog box. Those are open profiles - did you set if for Surface output?

Can you zip and attach the ipt file here?

Have you gone through the tutorials in my signature?

Link to comment
Share on other sites
