Illustrator does not recognize DWG or DXF files...

Recommended Posts

bbankston

But has it as an option to open it. I also tried PDF'ing the CAD file and opening in Illustrator but my shapes are construed. What do I do?

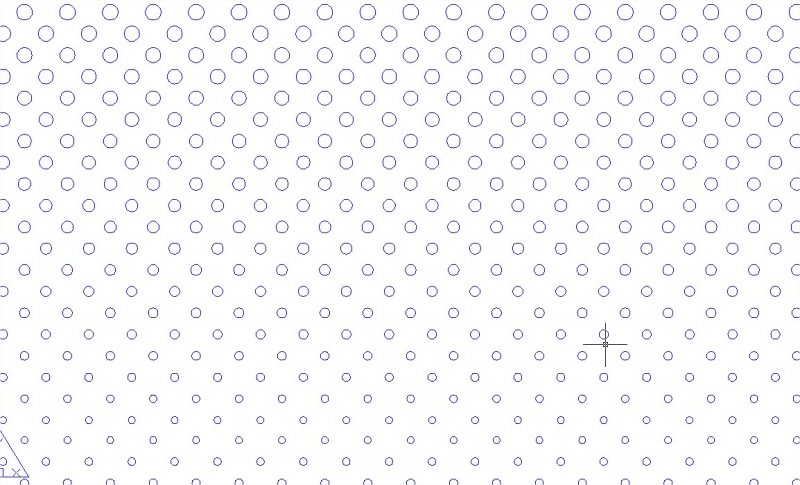

CAD file

AutoCAD LT - [CDocuments and SettingsbbankstonDesktopDigital PrinterJacobs Medical Center 04-28-.jpg

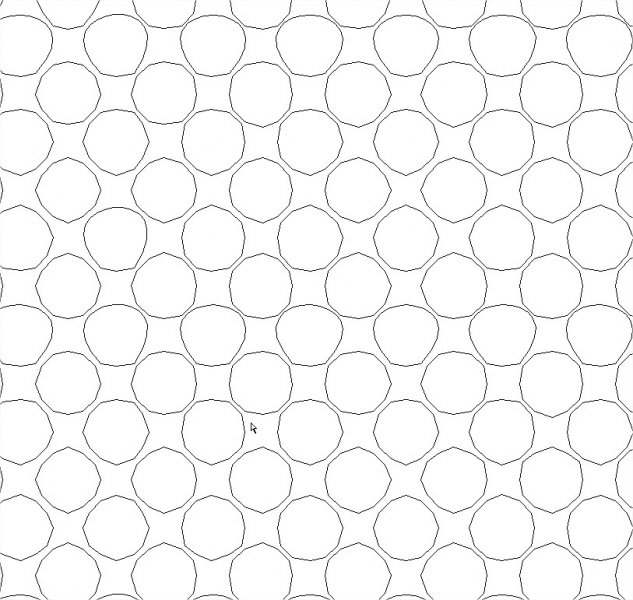

PDF of CAD file in Illustrator

Adobe Illustrator.jpg

Share this post


Link to post
Share on other sites
bbankston

It's pretty big as well. Finish size is 61.75 x 122.125 inches.



Can't I just export an EPS file of my CAD file?



I ask all this because I need to fill these shapes with black and then send it to our RIP software. Anyone familiar with TOPAZ RIP?

Edited by bbankston
Mo' stuff added

Share this post


Link to post
Share on other sites
Cad64

What version of Illustrator and what version of Autocad?

Could it be that your version of Autocad is newer than your version of Illustrator, so it's not able to open the file?

Have you tried saving your CAD file down to 2000 format?

Share this post


Link to post
Share on other sites
bbankston

Cad64,



AutoCAD LT 2008, Adobe Illustrator CS2



Let me try saving it down...

Share this post


Link to post
Share on other sites
bbankston

That did it! Thanks, Cad64! I saved the file as DXF 2000 and it opened just fine. I did have to scale it, though.

Share this post


Link to post
Share on other sites
