ReMark

Just so we are clear. Your geometry is in model space. Where is your text and dimensions? Are they in model space too? And how about your title block and border, where are they? Model space or paper space? If they are in paper space have you created a viewport?

Share this post


Link to post
Share on other sites
dgolchuk

Everything is in model space. I have not yet made a viewport. i have checked through my books to make sure i wasnt having a "moment". This is the first time they have stated "use a PLOTTING scale 1" = 1' and a LTSCALE of 12.

Share this post


Link to post
Share on other sites
ReMark

Where did the reference to paper space come in? It sounds to me like you'll be plotting from model space not paper space. Plots done in paper space are usually at 1:1 scale since the viewports are scaled separately.

Share this post


Link to post
Share on other sites
dgolchuk

You are correct, they didnt mention anything about paper space (never really do in this course). So that being said i guess it will remain in model space which still leaves me lost lol

Share this post


Link to post
Share on other sites
ReMark

When you go to the PLOT dialog box you will select the scale of 1"=1'.



I'm going for a motorcycle ride. Upon my return I'll check this thread. Good luck.

Share this post


Link to post
Share on other sites
dgolchuk

Cool. currently in a boring meeting but i will give it a shot after. thanks bud!

Share this post


Link to post
Share on other sites
karthik77

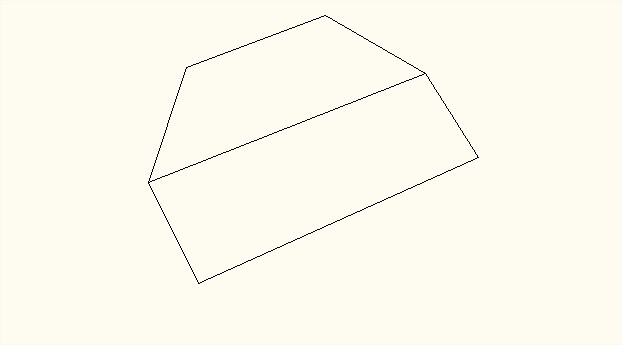

hi car..am a beginner to CAD...i just have problem in joining lines...how to combine many lines into single line? i used "PEDIT" command and also JOIN command....but i cant combine it. for ex combine the trapezium with rectangle, both of same size as base. i have attached a picture..how to combine it as single thing!!! pls help me

PrtScr capture.jpg

Share this post


Link to post
Share on other sites
ReMark

This particular thread is about a Penn-Foster student project.



PEDIT and JOIN usually work unless you have lines at different "Z" elevations or large gaps where your ends "appear" to meet.

Share this post


Link to post
Share on other sites
ReMark

Let's assume all lines are at elevation "0".



One option is to run the PEDIT command, type "M" (for Multiple), select all the lines then type "J" for JOIN. When prompted for a "fuzz distance" put in a large number (ex. - like "1") and see what happens.



It would go something like this.....



Command: PE

PEDIT Select polyline or [Multiple]: M



Select objects: Specify opposite corner: 4 found



Select objects:



Enter an option [Close/Open/Join/Width/Fit/Spline/Decurve/Ltype

gen/Reverse/Undo]: J



Join Type = Extend

Enter fuzz distance or [Jointype] : 1.0



3 segments added to polyline

Share this post


Link to post
Share on other sites
geussb

this plate at the end, (plate2) asks to figure out the area of the transition patterns youve created. how do you figure out the area? each separate piece or is there a special formula to do it?

Share this post


Link to post
Share on other sites
ReMark

Have you tried the AREA command?

Share this post


Link to post
Share on other sites
geussb

HAHA no, didnt know it could be something as easy as that

Share this post


Link to post
Share on other sites
Praxus

Is there any way I could get a sharper image of plate 1? I realize images have been posted but they lack the quality to really give me and idea whats going on. I would greatly appreciate it! Much obliged.

Share this post


Link to post
Share on other sites
ReMark

Those images have sufficed for most people. What are you unclear about exactly?

Share this post


Link to post
Share on other sites
ReMark

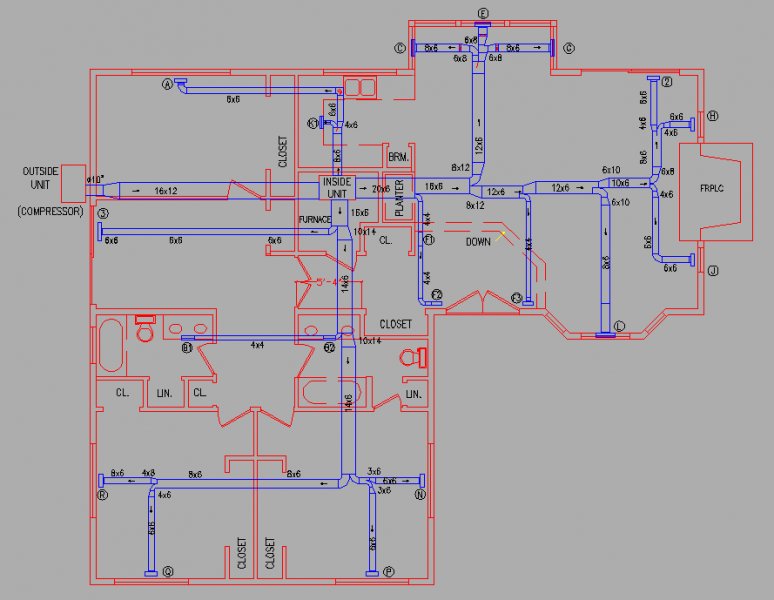

Penn-Foster HVAC closeup Plate 1.jpg

How's this?

Share this post


Link to post
Share on other sites
Praxus

Pardon the delayed response! I just was curious about the labeling of the schedules. It clearly defines it in the booklet, but a clear image would work wonder. Thank you so much kind sir!

Share this post


Link to post
Share on other sites
ReMark

The schedules? There's only one isn't there? The supply register schedule. It is merely a table with five columns: Symbol, Size, CFM, Type and Location. Sounds simple enough.

Share this post


Link to post
Share on other sites
solo8591

That will be boring to copy plate A from the drawing they send to start the plate 1 project ,that wiil take all the time . That what we are going to do for plate 1 on HVAC ? Is any body has that already in place please



Thanks.

Share this post


Link to post
Share on other sites
ReMark

Are you saying that you do not want to reproduce the base drawing for Plate A to create Plate 1?



Are you asking if someone here will just give you a copy of their drawing instead?

Share this post


Link to post
Share on other sites
solo8591

Sorry i didnt see the whole informatin now i see, ofcourse it worth it to do it and that is how we lern. I am almost half way



Thanks

Share this post


Link to post
