Chamfer tool in 3D

Recommended Posts

nestly

Has anyone had success using AutoCAD's CHAMFER>ANGLE command to chamfer in 3D? Distance/Distance works fine, but I haven't yet figured out how to use the chamfer tool to put a 30 degree chamfer on a cylinder (or any angle for that matter) by specifying a distance and an angle. Seems like it should be simple, but I always give up and end up creating the tapered edge by revolving a polyline that already has the chamfer, or using the TAPER>FACES tool.

Share this post


Link to post
Share on other sites
ReMark

No problem here using 2010. It probably is not as intuitive as it could be but that's AutoDesk for you. I got it to work the first time out on both a box and a cylinder.

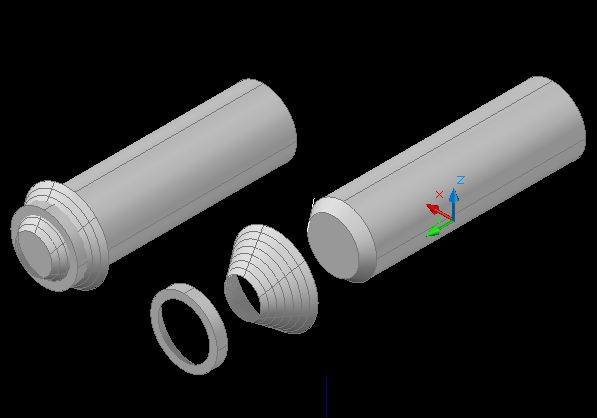

My inputs for the cylinder shown below.



Command:



CHAMFER



(TRIM mode) Current chamfer Length = 0.2500, Angle = 45

Select first line or [undo/Polyline/Distance/Angle/Trim/mEthod/Multiple]:

Base surface selection...

Enter surface selection option [Next/OK (current)] :



Specify base surface chamfer distance :



Specify other surface chamfer distance :

Select an edge or [Loop]: Select an edge or [Loop]:

Share this post


Link to post
Share on other sites
nestly

Yeah, 45 degrees works for me too because AutoCAD seems to ignore the ANGLE option and defaults into Distance/Distance mode resulting in a 45 chamfer. Can you make a 30 degree chamfer using CHAMFER and specifying an angle?

Share this post


Link to post
Share on other sites
ReMark

Can I? Yes, but not without first knowing the distances which to me doesn't make a whole lot of sense. If I know one of the two and the angle then AutoCAD should be able to do it. I must not be using the command correctly. Maybe the Angle option only works for 2D objects?

Share this post


Link to post
Share on other sites
nestly
Can you make a 30 degree chamfer using CHAMFER and specifying an angle?



Can I? Yes, but not without first knowing the distances



So your answer is actually "no" :wink:



I just found another related thread here, and a tutorial by Matt Murphy which seem to confirm that AutoCAD can't do that simple procedure in 3D, which is pretty lame.



Thanks for giving it a try.

Share this post


Link to post
Share on other sites
ReMark

Yes, my answer is No. Clear as mud?



Maybe it's been changed in 2012? I'm telecommuting today so I cannot check it. Will have to wait until I return to work on Monday. I'll have to check out that tutorial. Thanks.

Share this post


Link to post
Share on other sites
nestly

http://www.youtube.com/watch?v=1owqQpbIYr0



At 1 minute, he says "When you chamfer a solid, there is no angle option"



I still have a hard time believing AutoCAD doesn't have that ability, and also how long it took me to figure out I've been banging my head against a wall this long trying to figure out why I couldn't make it work.

Share this post


Link to post
Share on other sites
kencaz

A revolved surface will give you any angle you wish...






KC

Share this post


Link to post
Share on other sites
Jack_O'neill

I can't get the chamfer tool to work right either. It asks for a distance, then an angle. Then completely ignores the angle and asks for a second distance. Another one of those tools that almost works. I never noticed it because to be honest, I hardly if ever chamfer anything. Fillet I use all the time. If they left chamfer off, I'd probably never notice.

Share this post


Link to post
Share on other sites
rkent

Using the chamfer command from the solid editing toolbar the only option is Distance. So I guess you have to do the math first to know the distances for the angle.

Share this post


Link to post
Share on other sites
JD Mather

Works fine in a modern 3D CAD program like Autodesk Inventor. :lol:

Share this post


Link to post
Share on other sites
LaytonGB

Found this issue a few minutes ago and found that by entering the first distance (in my case .5) and then using the Expression command for the second distance, I could input:

Tan(60)*.5

This produced a 60 degree chamfer. Long winded and unnecessary, but functional.

Command: _chamfer
(TRIM mode) Current chamfer Length = 0.5000, Angle = 20
Select first line or [undo/Polyline/Distance/Angle/Trim/mEthod/Multiple]:
Base surface selection...
Enter surface selection option [Next/OK (current)] <OK>:
Specify base surface chamfer distance or [Expression]: .5
Specify other surface chamfer distance or [Expression] <0.5000>: e
Enter expression: Tan(60)*.5
Select an edge or [Loop]:

Thank you for making this thread, else I would have been toying with the angle function for hours.

Edited by LaytonGB

Share this post


Link to post
Share on other sites
