Hi,



How would you add features like radius, diameter to a leader line?



Thank you

Dulerong

Share this post


Link to post
Share on other sites
SLW210
Hi,



How would you add features like radius, diameter to a leader line?



Thank you

Dulerong



Fields>Object

Share this post


Link to post
Share on other sites
rkent

You should simply use dimension command, radius or diameter tools.

Add a child style to your current dimstyle for Radial and one for Diameter.

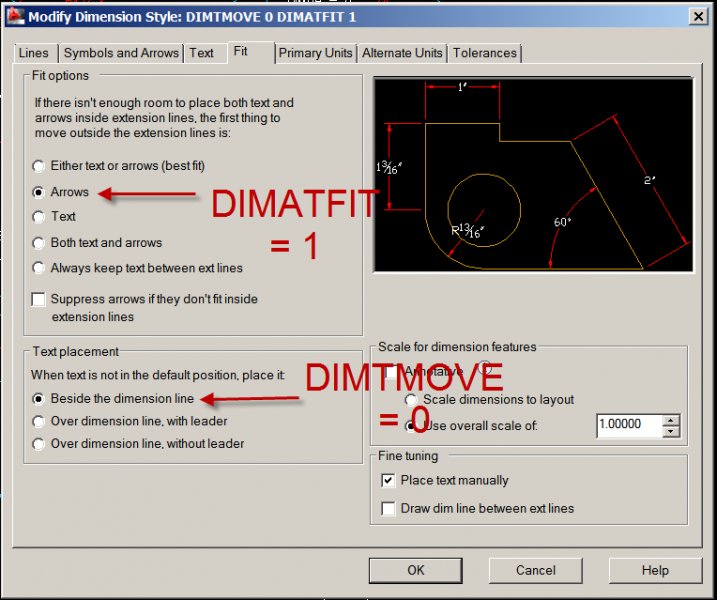

Set the DIMTMOVE, DIMATFIT, AND DIMTIH as shown in the attachment. DIMTOH set to off.

DIMSTYLE A.jpg

DIMSTYLE B.jpg

Edited by rkent
added dimtoh

Share this post


Link to post
Share on other sites
rkent

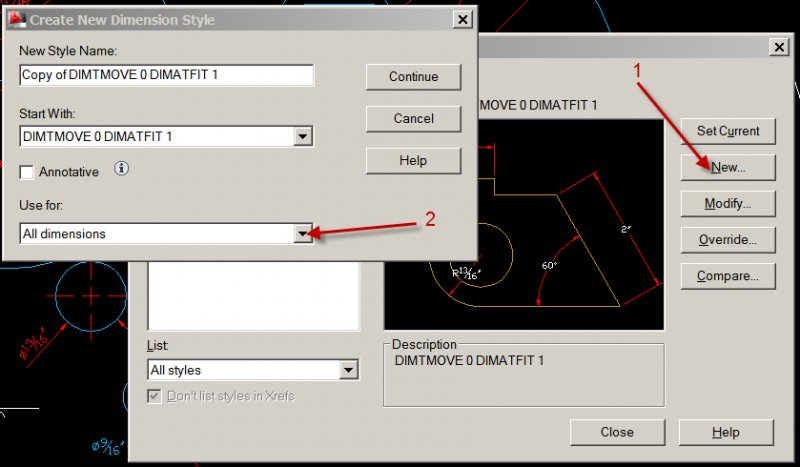

To create a child style for a dimstyle, start the dimstyle manager, pick New (1), then go to the drop down list (2) and pick radius, proceed from there. You will see a tree structure with your main dimstyle name and then the child styles below that have their own overrides for the radial dims, etc.



Repeat the steps for diameter dims.

DIMSTYLE c.jpg

Edited by rkent

Share this post


Link to post
Share on other sites
dulerong

Thanks a lot guys, so far the help has been great. I guess it's easier to just use DIMRAD



I dont know why I was trying to use Leader to show dimension...



Thanks!

Share this post


Link to post
Share on other sites
