Microstation V8 Cell Libaries

Recommended Posts

Fastdraft

A while back I created a few cell libraries. Now I am trying to use them and am realizing that I created them at the wrong scale.... Every time I use one I need to scale it up by 8. Does anyone know a way that I can change the scale on the whole cell Library at once? I want to scale everything up in that library by 8 so that next time I go to use the cells I don’t need to scale them.:?

Share this post


Link to post
Share on other sites
envisioncad

Hello Fastdraft, you can open the V8 cell library in MicroStation and each cell will be a model. Then you can run a Utilities>Batch Process on all the models.



Something like:

fit view extended

as=8

choose all

scale icon

xy=0,0

choose none

as=1

filedesign



HTH,

Bob Mecham

Share this post


Link to post
Share on other sites
Fastdraft

Thanks envisioncad, I am a little confused when i get in and have to right the text file???? i put in what you are telling me but i am still confused

Share this post


Link to post
Share on other sites
envisioncad

Fastdraft, here is some more information on Batch Process.



Batch Process is a utility that will run a list of MicroStation commands on a group of files or directories. The command list can also include custom macros and mdl applications. The command list is a simple text file that can be edited in Notepad. A Batch Process job file containing the batch process settings can be stored and reused.



The Batch Process dialog is accessed from Utilities > Batch Process and is used setup, save and open the batch process jobs. The dialog will help control which files are added to the job and which files are processed.


The Command File is a simple text file that has MicroStation key-in commands listed. Any line that begins with a pound symbol # will not be read as a command line. Multiple commands can be run in consecutive order and additional macros and mvba apps can be started.




Just try the keyins one at a time in the keyin browser to see what they do in your drawing. Then create the Text file with them all together and test it on a file. If you are still having trouble please let me know.



HTH,

Bob Mecham

Share this post


Link to post
Share on other sites
Fastdraft

Ok, I think I got them scaled using the batch Process.... How do you view all the model items so that can put them back into a cell library? I tired to just run the batch process on the cell library but it doesnt save the scale change back to the cell library that is already created?

Share this post


Link to post
Share on other sites
envisioncad

Fastdraft, the cell library is just a DGN file with a different three letter extension. Always work with a copy the first time. Take your CEL file and rename it to DGN then you will be able to run Batch Process on all the models in the file. Then you can rename it back to CEL and reattach the library.



HTH,

Bob Mecham

Share this post


Link to post
Share on other sites
Fastdraft

Thanks, I can get the batch process to run but for some reason i cant get the scale factor to hold. it tells me that the process worked and I see that it is but after i get out of the drawing and try to use it as a cell library it is not working. I am just going to probably have to play with it more when i have time.

Share this post


Link to post
Share on other sites
Fastdraft

Ok, So I have been trying to work on scaling all the models in my cell library this morning with the batch process. It seems to run but doesnt save? this is what my text file is

scale

as=.6668192

Share this post


Link to post
Share on other sites
Fastdraft

The cell library is not read only and the models are not locked, I am puzzled my script file that I am using is shown below. and it tells me that the process ran but when i go back and messure the a component it is the same size as it was before I ran the batch process. scale.png

Share this post


Link to post
Share on other sites
Fastdraft

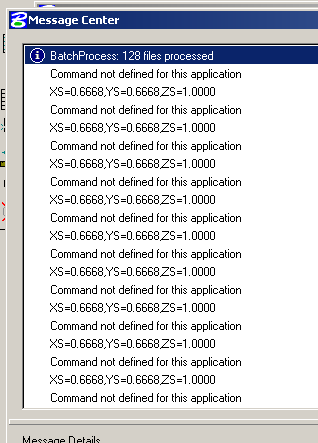

I just tired it again and then looked at the message getting after ran the batch process
