mutilple wipeout

[JORYROJ]

hi guys, do you have any idea how to create multiple wipeout with different rectangle sizes?

for example:

1. I have 300 rectangles with different sizes

2. I want to convert all the rectangles into wipeouts

3. Is there a way that it can be done in just one selection?

4. I,ve tried using ALL in selection but it only convert just one rectangle.

5. Can you give mi a tip or an Lisp maybe.


thanks

[Lt Dan's legs]


(defun c:test ( / ss )
 (defun ss->lst ( ss flag / id lst )
   (if (eq 'PICKSET (type ss))
     (repeat (setq id (sslength ss))
       (
         (lambda ( name )
           (setq lst
             (cons
               (if flag (vlax-ename->vla-object name)
                 name
               )lst
             )
           )
         )(ssname ss (setq id (1- id)))
       )
     )
   )
 )
 (if
   (setq ss
     (ss->lst
       (ssget '((0 . "lwpolyline")(70 . 1)))
       nil
     )
   )
   (foreach x ss
     (makewipeout (ent2ptlst x)
       (cdr (assoc 210 (entget x)))
     ) (entdel x)
   )
 ) (princ)
)

;;; ENT2PTLST
;;; Returns the vertices list of the polygon figuring the curve object
;;; Coordinates defined in OCS
(defun ent2ptlst (ent / obj dist n lst p_lst prec)
 (vl-load-com)
 (if (= (type ent) 'ENAME)
   (setq obj (vlax-ename->vla-object ent))
 )
 (cond
   ((member (cdr (assoc 0 (entget ent))) '("CIRCLE" "ELLIPSE"))
    (setq dist (/ (vlax-curve-getDistAtParam
      obj
      (vlax-curve-getEndParam obj)
    )
    50
 )
   n 0
    )
    (repeat 50
      (setq
 lst
  (cons
    (trans
      (vlax-curve-getPointAtDist obj (* dist (setq n (1+ n))))
      0
      (vlax-get obj 'Normal)
    )
    lst
  )
      )
    )
   )
   (T
    (setq p_lst (vl-remove-if-not
    '(lambda (x)
       (or (= (car x) 10)
    (= (car x) 42)
       )
     )
    (entget ent)
  )
    )
    (while p_lst
      (setq
 lst
  (cons
    (append (cdr (assoc 10 p_lst))
     (list (cdr (assoc 38 (entget ent))))
    )
    lst
  )
      )
      (if (/= 0 (cdadr p_lst))
 (progn
   (setq prec (1+ (fix (* 25 (sqrt (abs (cdadr p_lst))))))
  dist (/ (- (if (cdaddr p_lst)
        (vlax-curve-getDistAtPoint
   obj
   (trans (cdaddr p_lst) ent 0)
        )
        (vlax-curve-getDistAtParam
   obj
   (vlax-curve-getEndParam obj)
        )
      )
      (vlax-curve-getDistAtPoint
        obj
        (trans (cdar p_lst) ent 0)
      )
   )
   prec
       )
  n    0
   )
   (repeat (1- prec)
     (setq
       lst (cons
      (trans
        (vlax-curve-getPointAtDist
   obj
   (+ (vlax-curve-getDistAtPoint
        obj
        (trans (cdar p_lst) ent 0)
      )
      (* dist (setq n (1+ n)))
   )
        )
        0
        ent
      )
      lst
    )
     )
   )
 )
      )
      (setq p_lst (cddr p_lst))
    )
   )
 )
 lst
)

;;; MakeWipeout creates a "wipeout" from a points list and the normal vector of the object
(defun MakeWipeout (pt_lst nor / dxf10 max_dist cen dxf_14)
 (if (not (member "acwipeout.arx" (arx)))
   (arxload "acwipeout.arx")
 )
 (setq dxf10 (list (apply 'min (mapcar 'car pt_lst))
     (apply 'min (mapcar 'cadr pt_lst))
     (caddar pt_lst)
      )
 )
 (setq
   max_dist
    (float
      (apply 'max
      (mapcar '- (apply 'mapcar (cons 'max pt_lst)) dxf10)
      )
    )
 )
 (setq cen (mapcar '+ dxf10 (list (/ max_dist 2) (/ max_dist 2) 0.0)))
 (setq
   dxf14 (mapcar
    '(lambda (p)
       (mapcar '/
        (mapcar '- p cen)
        (list max_dist (- max_dist) 1.0)
       )
     )
    pt_lst
  )
 )
 (setq dxf14 (reverse (cons (car dxf14) (reverse dxf14))))
 (entmake (append (list '(0 . "WIPEOUT")
   '(100 . "AcDbEntity")
   '(100 . "AcDbWipeout")
   '(90 . 0)
   (cons 10 (trans dxf10 nor 0))
   (cons 11 (trans (list max_dist 0.0 0.0) nor 0))
   (cons 12 (trans (list 0.0 max_dist 0.0) nor 0))
   '(13 1.0 1.0 0.0)
   '(70 . 7)
   '(280 . 1)
   '(71 . 2)
   (cons 91 (length dxf14))
    )
    (mapcar '(lambda (p) (cons 14 p)) dxf14)
   )
 )
)

[Tharwat]

Check this out ...



(defun c:TesT (/ ss i sset)
 (if (setq ss (ssget "_:L" '((0 . "LWPOLYLINE,POLYLINE"))))
   (repeat (setq i (sslength ss))
     (setq sset (ssname ss (setq i (1- i))))
     (if (vlax-curve-isclosed sset)
       (command "_.wipeout" "_polyline" sset "_Y")
     )
   )
   (princ)
 )
 (princ)
)



Tharwat

[Lt Dan's legs]

Tharwat, try using an asterisk

;;like this
(ssget "_:L" '((0 . "*text")))

;or
(ssget "_:L" '((0 . "*polyline")))

[Tharwat]

Tharwat' date=' try using an asterisk

;;like this
(ssget "_:L" '((0 . "*text")))
;or
(ssget "_:L" '((0 . "*polyline")))

[/quote']



Agreed



That was done quickly as a matter of habit only ..



Thanks

[JORYROJ]

thanks guys, Tharwat the lisp works just perfect, it only takes me 5seconds to finish an hour work.

[Tharwat]

thanks guys, Tharwat the lisp works just perfect, it only takes me 5seconds to finish an hour work.



You're welcome any time buddy .



Tharwat

[BRUNO FALCON]

Hi guys, and thank you for sharing this very helpful lisp, do you have one for multiple circles,



Kind regards,



Bfr

[SLW210]

Try this Circular Wipeout | Lee Mac Programming

[exceed]

or try justwipe

https://cadtips.cadalyst.com/2d-operations/create-wipeouts-two-ways



[SLW210]

5 minutes ago, exceed said:

or try justwipe

https://cadtips.cadalyst.com/2d-operations/create-wipeouts-two-ways



Doesn't seem to work for circles.

[SLW210]

If you set your Hatch to Solid, color 255,255,255 and selection method to Objects, it is just as good as a wipeout and doesn't have the issue of only polylines.

[exceed]

33 minutes ago, SLW210 said:

Doesn't seem to work for circles.

\\







there is no option to wipe while creating a circle like Lee Mac's,

but justwipe's option S(selection) is works for circle.



i think when user wants wipeout on "multiple" circles,

it is usually applied for visibility of multiple bubble circles and that already exist,

so I think justwipe's option is also valid.

[SLW210]

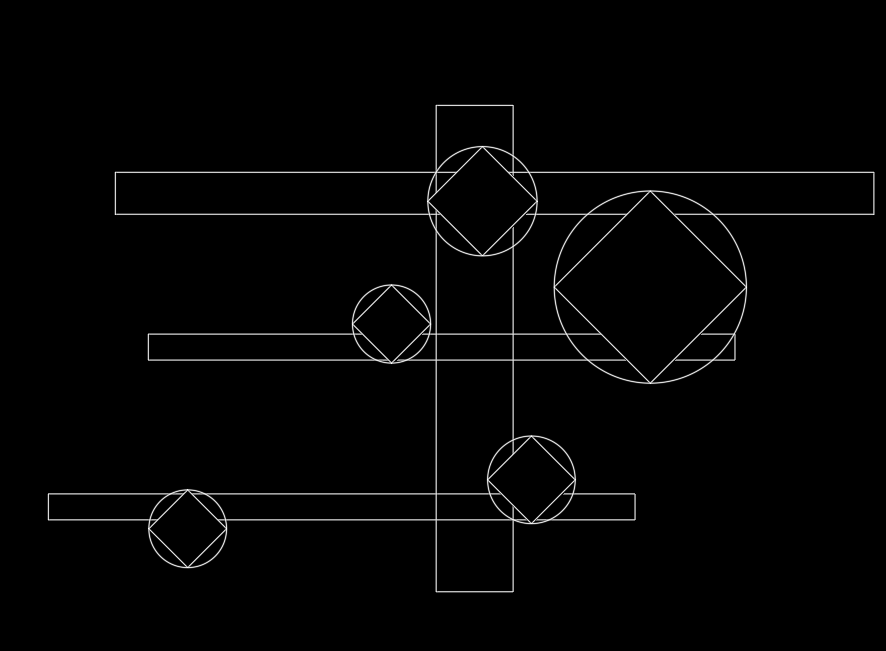

I get this in AutoCAD 2022 with JustWipe.

[SLW210]

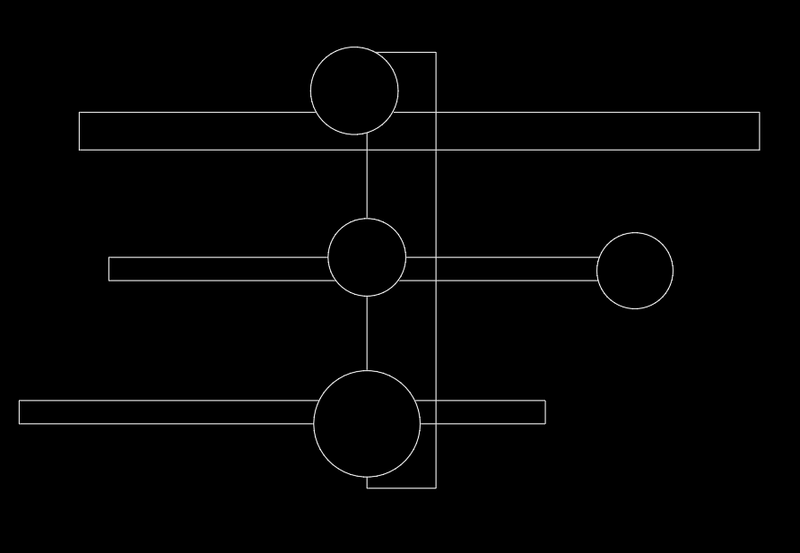

Here is C2Wipe from Lee Macs.

[SLW210]

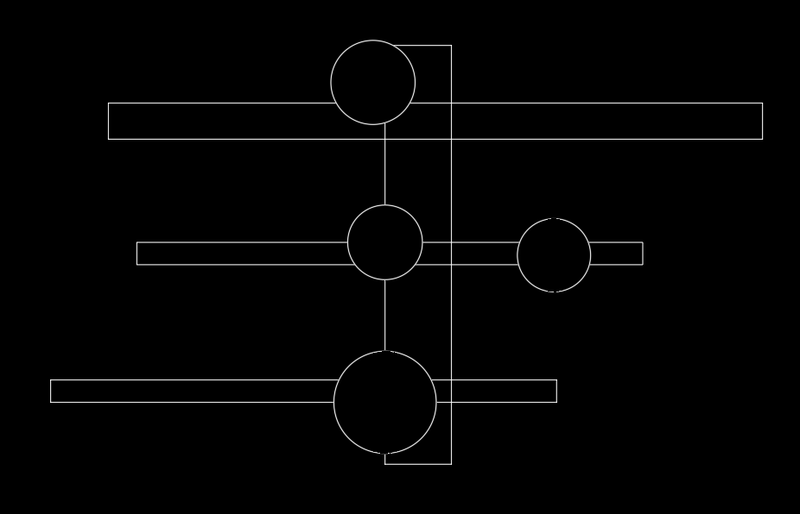

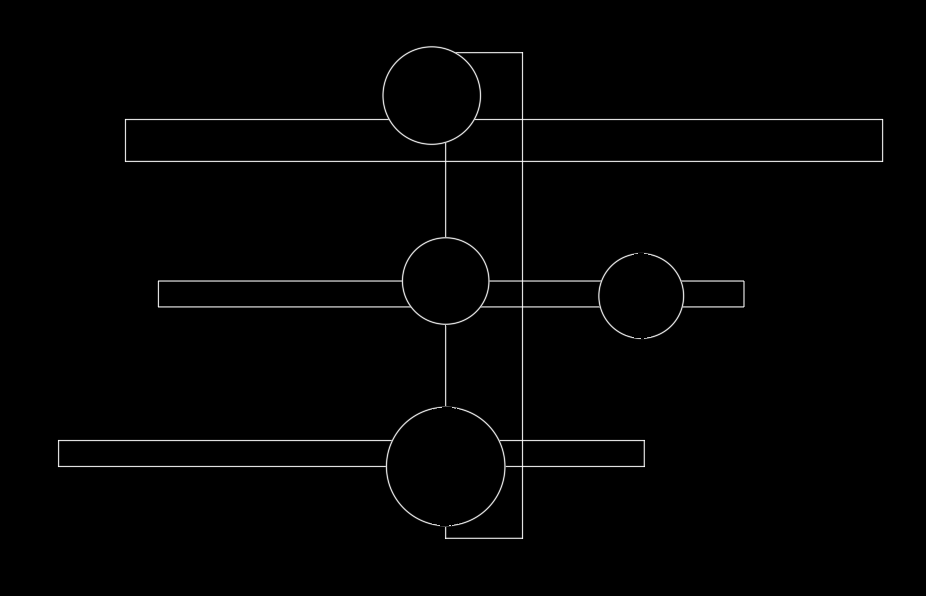

Here is a Solid Hatch with the same color as the background.





[exceed]

8 hours ago, SLW210 said:

I get this in AutoCAD 2022 with JustWipe.



It's interesting. GIF I posted was executed in autocad 2023.

in the code, the implementation of dividing the circle 50 times is the same.

I think it might be affected by the user environment

because this code use the "command" pline....

I agree with it's better use entmakex and trans points Lee Mac's way.

Edited September 7 by exceed

[SLW210]

I played with it some more and got all types of shapes, but never a complete circle. When I get back to work, I'll see if I can get a full circle.



At any rate for my needs, a solid hatch is just as good if not better most times as well as Lee Mac's, still, the more options the better as far I am concerned.
