nicnicman Posted October 19, 2008 Share Posted October 19, 2008 I'm trying to join all the lines in the attached drawing into one polyline using the PEDIT command but it is not working well. It is only joining some groups of lines. Does anyone have any suggestions? Thanks Quote Link to comment Share on other sites More sharing options...

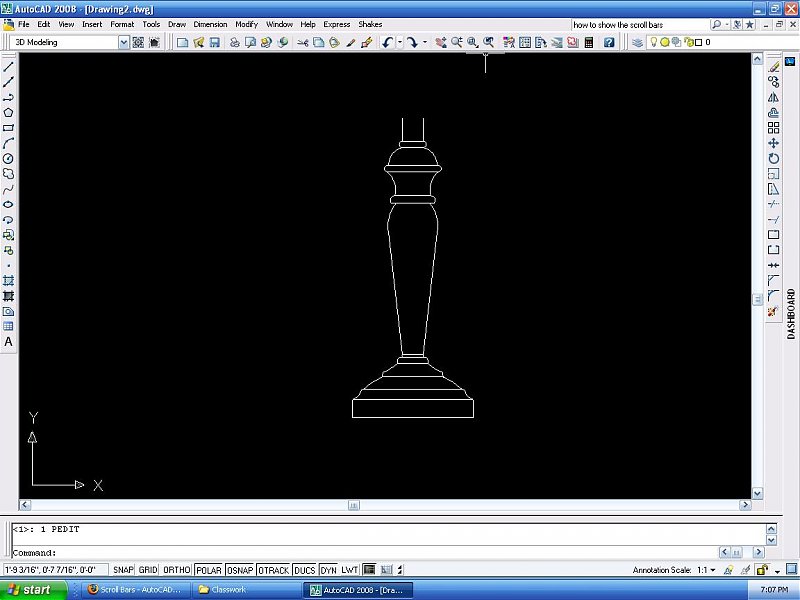

nicnicman Posted October 19, 2008 Author Share Posted October 19, 2008 Almost forgot, here's the drawing. Quote Link to comment Share on other sites More sharing options...
Cad64 Posted October 19, 2008 Share Posted October 19, 2008 You can't join all of those lines into one Polyline. A Polyline is one continuous line. It cannot branch out in different directions. If you want all of those lines to be a single entity then you should create a Group or a Block. Quote Link to comment Share on other sites More sharing options...
rookie37 Posted October 22, 2008 Share Posted October 22, 2008 It cannot branch out in different directions. However, I have also had problems to make one continous pline Sometimes there are very very small imperfections. The lines and arcs don't actually join To fix this, I use grips I make the mistake bigger so I can see it. I then fix the mistake. pedit join That fixes the problem most of the time Quote Link to comment Share on other sites More sharing options...
