NoelStalker

Hello helpful people. I'm having a problem I haven't encountered before. Every line I draw, no matter what layer I make current is showing up as a thick red line. It doesn't matter if the layer that is current is green or what the lineweight is.



I bound an xref to my drawing; I don't know if that has anything to do with it or not. For now I just use match properties after I draw my lines to get them on the layer I want.

Share this post


Link to post
Share on other sites
Print_Master

Make sure your layers are set up as "by layer" on the properties tool bar. Let me know if this helps.

Share this post


Link to post
Share on other sites
NoelStalker

Thanks for your response. I can't tell from the layer dialog box if anything is wrong. I know if I use the setbylayer command and select the lines they will change to be correct. It's just when I initially draw them that they show up thick and red.

Share this post


Link to post
Share on other sites
Print_Master
Thanks for your response. I can't tell from the layer dialog box if anything is wrong. I know if I use the setbylayer command and select the lines they will change to be correct. It's just when I initially draw them that they show up thick and red.



Are you drawing a simple line or a PLine?

If you are drawing a PL you can change the width of the line.



Try this:

Right click on where your tool bar is go to "AutoCAD", then scroll down to properties. Check the setting here. They all should be by layer.

Hope this helps.

Share this post


Link to post
Share on other sites
NoelStalker

I'm drawing a line, not a pline. I checked the properties. Each line I draw has the following properties:



Color: Red

Layer (varies depending on which layer I make current)

Lineweight: 0.50 mm

Thickness: 2.5000"



Again I can change them easily enough but what puzzles me is why every line comes in this way no matter which layer is current, even though the layers appear to be set up correctly. I can match properties from something already drawn and it will correct it. I'm just wondering if there is some variable that is set to make everything I draw have those properties regardless of the layer.

Share this post


Link to post
Share on other sites
ReMark

Can I take a wild guess? Linetype Properties is set to ByBlock and not to ByLayer.

Share this post


Link to post
Share on other sites
Print_Master
I'm drawing a line, not a pline. I checked the properties. Each line I draw has the following properties:



Color: Red

Layer (varies depending on which layer I make current)

Lineweight: 0.50 mm

Thickness: 2.5000"



Again I can change them easily enough but what puzzles me is why every line comes in this way no matter which layer is current, even though the layers appear to be set up correctly. I can match properties from something already drawn and it will correct it. I'm just wondering if there is some variable that is set to make everything I draw have those properties regardless of the layer.



The settings are a over ride to a layer. So if you have a created layer that is green, on .05mm, and dashed lines. Then go to properties and change it to all to "by layer" that what it will be. It is there to not change the name of the line, but to modify the line if need be. change it all to "by layer" and it will come out the way you want it.



@REMARK I never thought about that. Good one.

Share this post


Link to post
Share on other sites
ReMark

Thanks P_M. I've sort of (ahem) set this by accident (?) once or twice myself.:oops: Then drove myself crazy trying to figure out what I did.:lol:

Share this post


Link to post
Share on other sites
NoelStalker

all the layers appear to be set up correctly. I guess what I am confused about is that, if I make a new layer current then anything I draw should be according to those layer settings but that is not the case. No matter what layer is current my lines look the same.



@REMARK - You are correct that the linetype properties are not bylayer. I can change that and it fixes the individual line, just as match properties does. I just don't understand why when I initially draw a line it does not appear to take on the properties of the current layer. Is there a global bylayer variable that is off? I realize I can also use the command setbylayer to change the lines after I've drawn them. What I want to do is have it work like every other drawing I work with; the line I draw takes on the properties of the current layer.

Share this post


Link to post
Share on other sites
ReMark

Once I change the setting from ByBlock to ByLayer it works just as you describe. I only have to set it once too then everything is back to normal.



Did you try saving the drawing, closing AutoCAD then restarting? Maybe it is a momentary glitch of some kind.

Share this post


Link to post
Share on other sites
rkent

Type CECOLOR at the command prompt, hit enter. What does it say? We are guessing it says 1 or red, type bylayer and hit enter. Hopefully that is it.

Share this post


Link to post
Share on other sites
Murph_map

What is "CECOLOR" set to? May sound like you have a redline lsp or something loaded to redline dwgs. Anything out of the originally on the command line when you create a line?

Share this post


Link to post
Share on other sites
NoelStalker

I restarted ACAD and my computer and I'm still having the same issue. All of the lines I draw are not bylayer. I'm even using a different version of ACAD now. For now I will just continue to fix the lines after I draw them.

Share this post


Link to post
Share on other sites
ReMark

Post a copy of this mysterious drawing so someone here can take a look at it.

Share this post


Link to post
Share on other sites
NoelStalker

Sure. How do I upload a drawing to this forum?

Share this post


Link to post
Share on other sites
ReMark

Click on the Go Advanced button then click on the Paper Clip button. Browse to the location of your drawing, upload then attach it. There is a file size limitation you'll have to be aware of.

Share this post


Link to post
Share on other sites
NoelStalker

rkent - for some reason I missed your message this morning. That CECOLOR command worked! It was set to "1" instead of bylayer. What about the line thickness? Is there a similar variable to change that to bylayer?

Share this post


Link to post
Share on other sites
JD Mather
I'm drawing a line, not a pline. I checked the properties. Each line I draw has the following properties:



Color: Red

Layer (varies depending on which layer I make current)

Lineweight: 0.50 mm

Thickness: 2.5000"

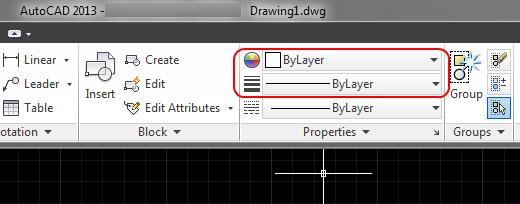

Color:By Layer

Lineweight: By Layer

Edited by JD Mather

Share this post


Link to post
Share on other sites
f700es
Color:By Layer

Lineweight: By Layer





+1






If you have not checked these

Share this post


Link to post
Share on other sites
JD Mather
I restarted ACAD and my computer and I'm still having the same issue. All of the lines I draw are not bylayer. I'm even using a different version of ACAD now. For now I will just continue to fix the lines after I draw them.



Aren't you using a template (custom - with all your settings)?

Set them and forget them. Everything works as expected.

Share this post


Link to post
Share on other sites
