Does anyone know of a way to automatically insert the arc like the picture? Is there a setting somewhere that will do this? Right now when we have a location that cannot accomodate the text we are drawing an arc and grip moving the dim text to the new location. I am trying to find a more automated way to handle these types of situations.

Thanks

Share this post


Link to post
Share on other sites
Dadgad

Easily accomplished on the FIT tab of your DIMENSION STYLE MANAGER.

Automatically creating a LEADER is easy, unfortunately you will not be able

to make it an arc from the native options. It could probably be done with a lisp,

if the leader being an arc is more important than the ease of creating a

consistent leader quickly.

Once created you can reposition the text with leader to an alternate position.

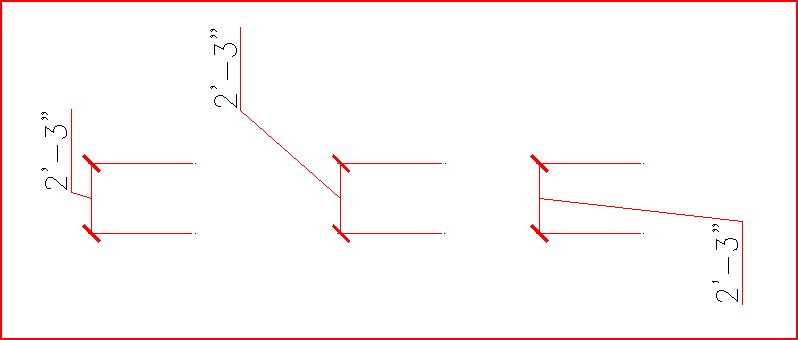

dimension text with leader option ARCH.JPG

over dimension line with leader.JPG
