Hi,



I want to find a shortcut to be able to slice off the corner of an object (see picture below). Is there some sort of build in function to do so?






I have been manually doing this by (1) creating a square surface (2) re-positioning it over the corner and (3) using the slice command to ultimately slice off the piece and delete the excess.



As you can surmise, step (2) [re-positioning that damn surface over the corner], takes FOREVER.



So, just to repeat, is there some sort of easier command or work-around anyone can think of to do this?! :oops:



Thank you,

Alex

Share this post


Link to post
Share on other sites
ReMark

Which corner are you referring to?

Share this post


Link to post
Share on other sites
JD Mather




Simply create three lines o-tracking from the corner (or points instead of lines), then you have a whole bunch of ways-

Slice using 3 points (3 points define a plane)

create surface using 3 points and slice with surface.....

Share this post


Link to post
Share on other sites
ah7391

How do I generate a surface given 3 points or 3 lines extending from the corner?

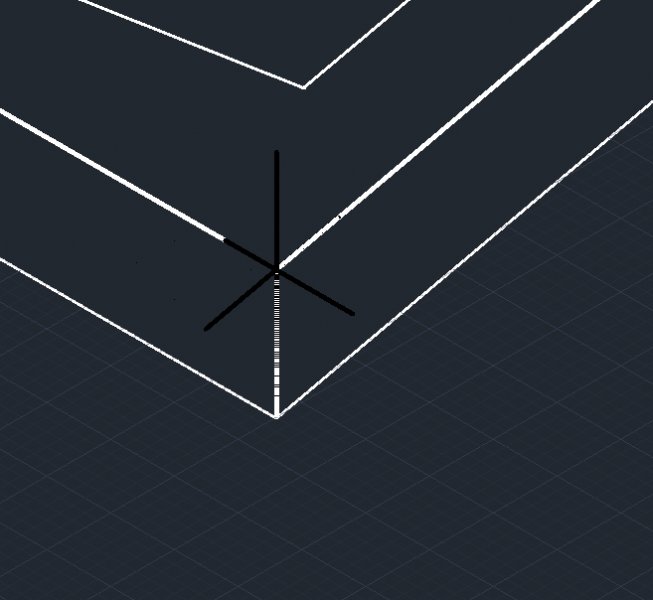

Corner lines extending.jpg

Share this post


Link to post
Share on other sites
JD Mather
...or 3 lines extending from the corner?



Are you familiar with object tracking?

Turn on Polar Tracking (F10) if not already on.

Set your point style to a type you can see.

Start the point command.

Move your mouse to corner but do not click on corner

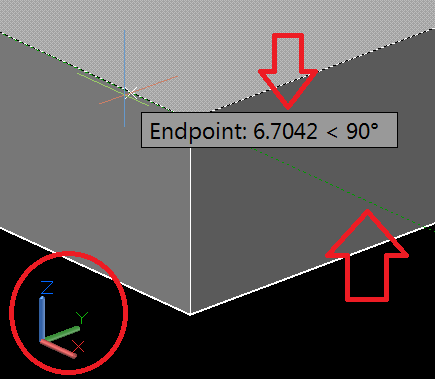

Object tracking.png



move your mouse in negative x direction you should see a dashed green tracking line and a box to enter direct distance from corner.

Type in the desired distance and hit Enter (I use spacebar).

Hit Spacebar again to repeat point command.

Move mouse back to corner but don't click on it.

Move mouse in -y direction and type in desired direct distance.

Repeat for -z direction.

You now have 3 points to use in several different techniques that I can think of.

Share this post


Link to post
Share on other sites
ah7391

Thanks!



So how do I generate a surface using those three points? Do I just use the surface command and select all three points?



Also, can I just use the slice command and select the three points rather than generate a surface?

Share this post


Link to post
Share on other sites
JD Mather
Also, can I just use the slice command and select the three points rather than generate a surface?



Rule #1 in AutoCAD - always read the command line.

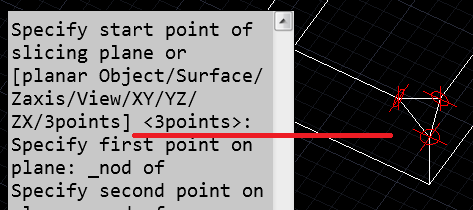

Slice 3P.png



Set your Osnap to Node.

Share this post


Link to post
Share on other sites
ah7391

Thank you so much!! I am eternally grateful.
