Having Trouble Creating an Edge

Recommended Posts

Cthunicorn

Afternoon,



This is my first time on CADTutor and hoping to receive some much needed assistance.

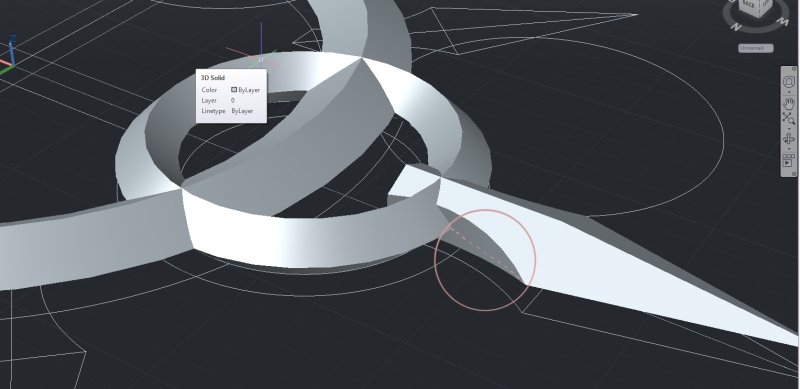

For a while now I have been attempting to resolve a a part of my CAD drawing. As seen below I have a 3D Solid. The part circled is result of subtracting a cylinder from the shape. I am now trying to find a solution to make both the above and below edges of the dotted line meet as one while maintaining the curve I have subtracted. Unfortunately, I cannot come up with an answer. I attempted to chamfer the edge but found this at difficulty. Am I going about this wrong? Any help would be appreciated.



I hope that I have explained this well.





Thanks


Share this post


Link to post
Share on other sites
SLW210

Hard to tell what you have in an image, would be better to post the model.

Share this post


Link to post
Share on other sites
JD Mather

Is this a student project?



Sweep two lines as surfaces and the slice.

Share this post


Link to post
Share on other sites
Cthunicorn
Hard to tell what you have in an image, would be better to post the model.



I have attached the DWG for better reference. This is a piece for a friend to clarify what I am making it for.

AxelWeaponsKH.dwg

Share this post


Link to post
Share on other sites
Cthunicorn
Is this a student project?



Sweep two lines as surfaces and the slice.



I will refer to my textbook for what you speak of. If you have/know of any references (YouTube videos, etc) please link them. Thank you for your help!

Share this post


Link to post
Share on other sites
Cthunicorn

Here is additional reference of the piece that I am trying to recreate.




Share this post


Link to post
Share on other sites
JD Mather

You will need to Loft rather then Sweep.

I would do 1/4 and then mirror twice (you have already done way too much work - use mirrors and arrays for symmetrical geometry).

Share this post


Link to post
Share on other sites
Cthunicorn
You will need to Loft rather then Sweep.

I would do 1/4 and then mirror twice (you have already done way too much work - use mirrors and arrays for symmetrical geometry).



Thank you! I will try this tonight. I hope I didn't create too much unnecessary work. I only created the largest piece. Everything else was copied or scaled.

Share this post


Link to post
Share on other sites
