Balloon Multi Leader Attachment

Recommended Posts

adamlister

Hi,



I am currently using a multi leader with the default tag circle attached to insert balloons into my drawings. I would like the leader to attach to the circle in a straight line to the centre of the circle as on the left hand side balloon bellow, I currently get what is shown on the right hand side. I can remove the landing gap but the leader will only attach to the balloon on the 4 quadrants, is there anyway to amend this?



Thank You.


Share this post


Link to post
Share on other sites
Dadgad

In the definition of MULTILEADERSTYLE, on the Content tab, set the attachment to the INSERTION POINT,

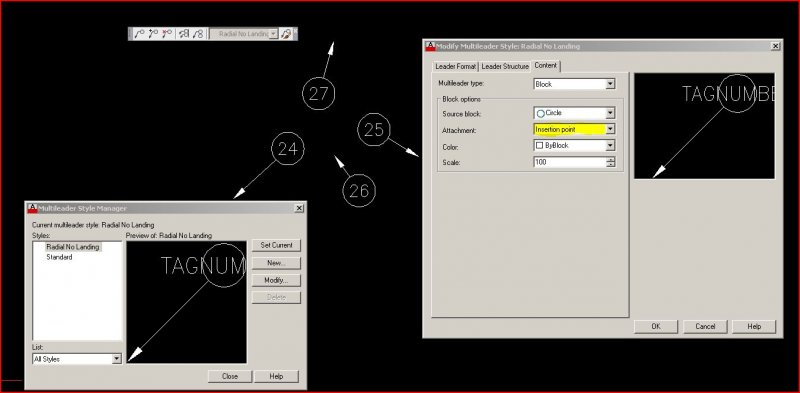

as shown in the image.

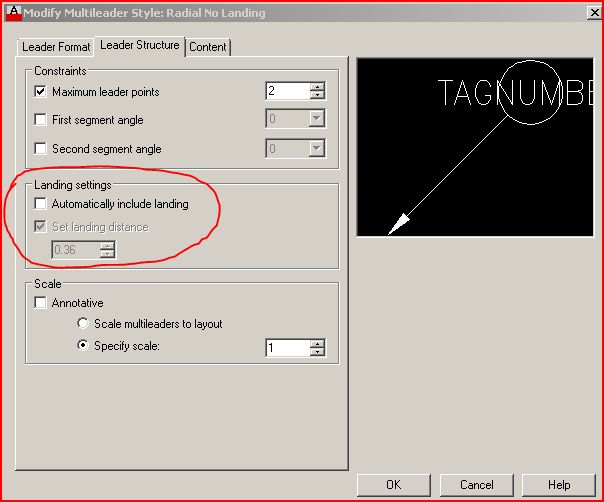

radial no landing mleader style.jpg

leader structure.JPG

Share this post


Link to post
Share on other sites
adamlister

Thank You 'Dadgad', tried this before but I hadn't removed my landing gap.

Share this post


Link to post
Share on other sites
