Help constraining the geometry of a Base Plate based on a given diagram

[bobingham]

Hello! I am a college student taking an Intro to CAD course. So far I've been doing well in the course. However, in the below assignment, I do not understand how to properly constrain object. I feel like I would need the height and width of the entire piece in order to even begin with this project. Though, perhaps I am simply misreading the schematics. Any insight on how to get started with this would really be appreciated! By the way, at my school we use a program called NX9.

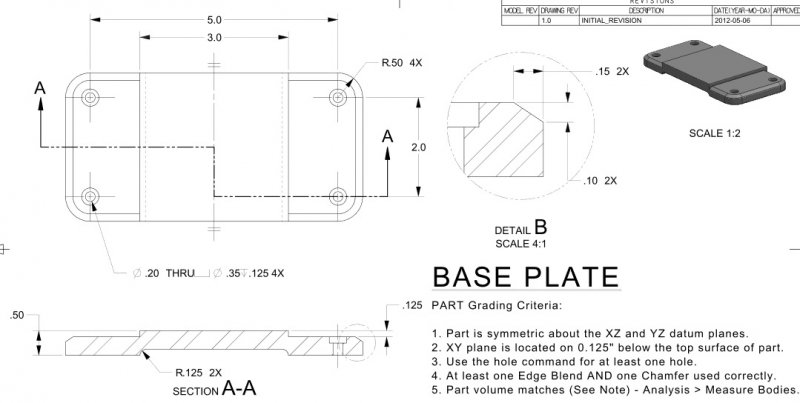

[ATTACH=CONFIG]51167[/ATTACH]

[SLW210]

I moved your thread to the Student Project Questions Sub-Forum.



Attachment works fine for me. I'll try to look it over later, when I have more time.



Here it is if someone else would like to give it a look.

[SLW210]

Too get full length and full width, just add the Radius given X2 to the C/C of the Holes (R .50 x 2 + C/C of Holes).

[JD Mather]

I moved your thread to the ...Student Project...



Isn't this area for AutoCAD>Student Projects>

OP states using NX.

[SLW210]

But, has little to do with the answer, seems more a student question in General, than a program specific query.



Definitely didn't belong in AutoCAD General.

[JD Mather]

The grading criteria mentioned in the drawing seems geared to NX.

The OP mentions Constraints (that while they do exist in AutoCAD, I suspect this will be an important part of the grade).



From a parametric software viewpoint - it is quite a simple problem.

Centerpoint rectangle at the Origin.

Fillet.

Dimension as shown on the drawing.
