Sbeth85 Posted April 20, 2015 Share Posted April 20, 2015 Hi- I'd like to dimension a drawing in both feet and centimeters. Is there some sort of DimStyle workaround to get this to happen automatically? Yes, I know I could manually overwrite each dimension and do "inches", but is there a way to do it automatically? Thanks! Quote Link to comment Share on other sites More sharing options...
rkent Posted April 20, 2015 Share Posted April 20, 2015 Open Dimstyle, use the Alternate Units tab, notice the muliplier for alt units, set that for the conversion to cm, etc. Quote Link to comment Share on other sites More sharing options...
Sbeth85 Posted April 20, 2015 Author Share Posted April 20, 2015 Rkent- Thank you, but I got a little confused about how to it properly. Currently I work in CM. I'd like it to display in feet and inches. Example: 167 cm / 5'6" (as opposed to 167 cm/5.5) Is this possible? Can I have the name of the units show besides it? How do I deal with this multiplier thing? Quote Link to comment Share on other sites More sharing options...

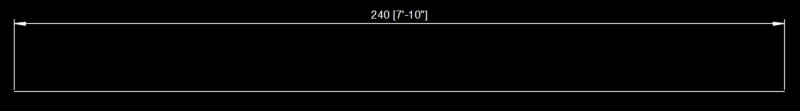

Sbeth85 Posted April 20, 2015 Author Share Posted April 20, 2015 Followup: I've played around and gotten to the point where my measurement will look like this: 240 [7 7/8"] which is the "Architectural" Alt format or 240 [7.82] which is the "Decimal" Alt Format But none of the formats are giving me what I'd really like, which is to see: 240 [7'10"] or better yet 240 cm [7'10"] Anyone? Quote Link to comment Share on other sites More sharing options...

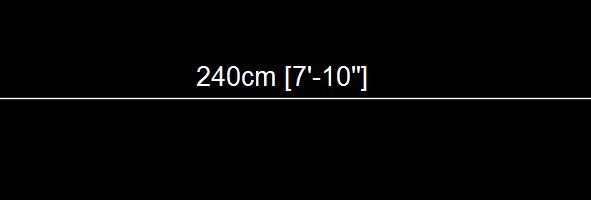

ReMark Posted April 20, 2015 Share Posted April 20, 2015 (edited) Using plain AutoCAD. With the "cm" added as a suffix. Edited April 20, 2015 by ReMark Quote Link to comment Share on other sites More sharing options...
Dadgad Posted April 21, 2015 Share Posted April 21, 2015 (edited) When I need to use and display alternate units, if there is sufficient room in my drawing, I like how they look with the placement of the two above and below the dimension line. In some instances a drawing might be too dense to do it this way, as it does take up a bit more room. This is just a heads-up for another way to display them. Of course, there is another Architectural units display style, called Architectural Stacked, which might be preferable, available in the unit format drop down list. Edited April 21, 2015 by Dadgad Quote Link to comment Share on other sites More sharing options...
Sbeth85 Posted April 21, 2015 Author Share Posted April 21, 2015 ReMark and Dadgad- Thanks for your responses. I've been able to do both of what you've shown (imperial besides the cm and imperial beneath the dim line). The weird thing is that the apostrophe after feet isn't showing up! And since it's in the middle of the measurement it's not like I can add a suffix... how odd! Quote Link to comment Share on other sites More sharing options...
eldon Posted April 21, 2015 Share Posted April 21, 2015 Both your alternate units are showing 7 7/8". There are no feet. What is your conversion multiplier? Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 21, 2015 Share Posted April 21, 2015 How is it that you managed to get 240cm to equal 7.87 INCHES? In one of your previous posts you had the conversion correct. Now it is wrong. You changed something. Probably the multiplier. Quote Link to comment Share on other sites More sharing options...
Dadgad Posted April 21, 2015 Share Posted April 21, 2015 (edited) How is it that you managed to get 240cm to equal 7.87 INCHES? In one of your previous posts you had the conversion correct. Now it is wrong. You changed something. Probably the multiplier. Sbeth, please do us a favor and start the -DWGUNITS command, what does it report as your current units or ? You said your units were cms, I am curious if they really are, or possibly mms? Don't change anything, just report back to us whatever the first response is. I suspect that it will be for mms, instead of for cms, quite independently of whatever suffix might have been added. Eldon & Remark are correct, as usual, your alternate multiplier is off. Of course the only way to know definitively, what it should be, is to determine in what units your drawing has really been created. Edited April 21, 2015 by Dadgad Quote Link to comment Share on other sites More sharing options...
SLW210 Posted April 21, 2015 Share Posted April 21, 2015 What is the number you have in the "Multiplier for Alt Units" box? It should be .3937. Quote Link to comment Share on other sites More sharing options...

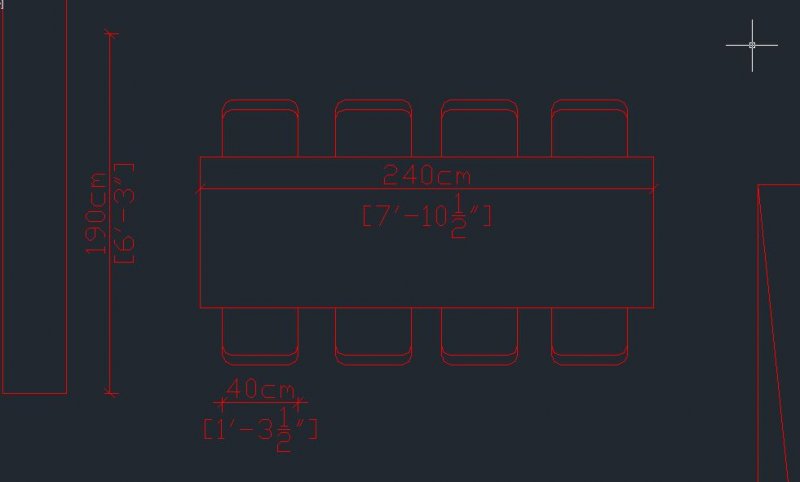

Sbeth85 Posted April 22, 2015 Author Share Posted April 22, 2015 My -DWGUNITS is 4. I think there must have been something wonky going on, because my multiplier WAS 0.3937, and yet the dims were coming out weird. In any case, I made a dimstyle from scratch according to your instructions and it looks ok now. Thank you guys! Quote Link to comment Share on other sites More sharing options...
