How to create Y shape stairs in revit

Recommended Posts

helpme

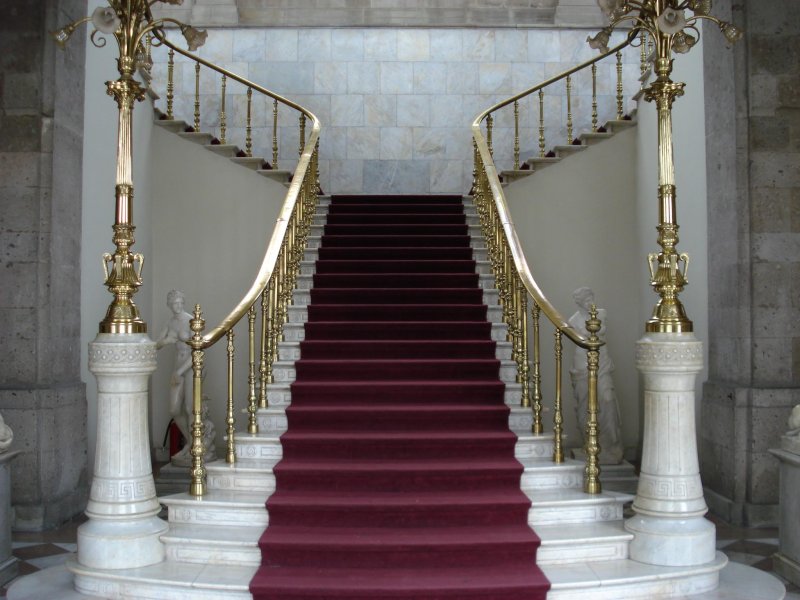

Hi please help how to create this "Y" shape stairs in revit cuz whenever i try using stair by sketch i couldnt please help


Share this post


Link to post
Share on other sites
RobDraw

Break it down into pieces. You've basically got two floors, three sets of stairs, and a landing. I'm pretty sure you could treat the landing as a floor. I imagine that the bottom part that splays out is going to be tough.



Let me just add that I don't use architectural Revit very often.

Share this post


Link to post
Share on other sites
tzframpton

Along with Rob's suggestion there's plenty of YouTube videos to help with stairs. Not necessarily "Y" configuration stairs, but enough intermediate and advanced tutorials for you to piece together what you need. Stairs can be very simple, yet they can be very complicated and require a lot of hours permeating through trial and error before they begin to really click.



Also, along with Rob, I do not utilize the architectural components of Revit very often. We both are MEP. For good architectural help, you may try http://www.RevitForum.org.
