How to draw Channel Cross section from X,Y,Z survey Data in autocad 2013?

Recommended Posts

sayemabir

Dear forum members

I need to draw some cross sections of a channel from spot levels (x,y,z data). My surveyor collected those data by RTK. As these are 3 dimensional data, is it possible to draw cross section from these data in Autocad? Because cross means only x & Y 2D data. Dear members please help me. I am really in need of your help and my project time is very short.



Sayem

Share this post


Link to post
Share on other sites
eldon

Perhaps you could draw a 3d polyline for each cross section using the x,y,z data, and then Rotate3D or 3DRotate to give a nice cross section.


Share this post


Link to post
Share on other sites
sayemabir

Thank you very very much. You just save my day. At first "3DPoly" then rotate the view. wow amazing simple and shortcut. Thank you dear Eldon.



Best Regards

Sayem

Share this post


Link to post
Share on other sites
BIGAL

Oh why not just reverse the normal.




Share this post


Link to post
Share on other sites
sayemabir
Oh why not just reverse the normal.

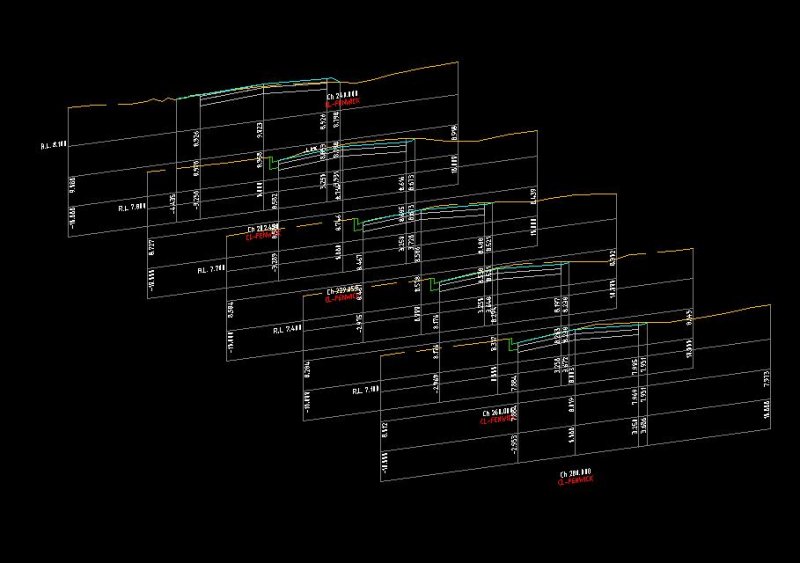

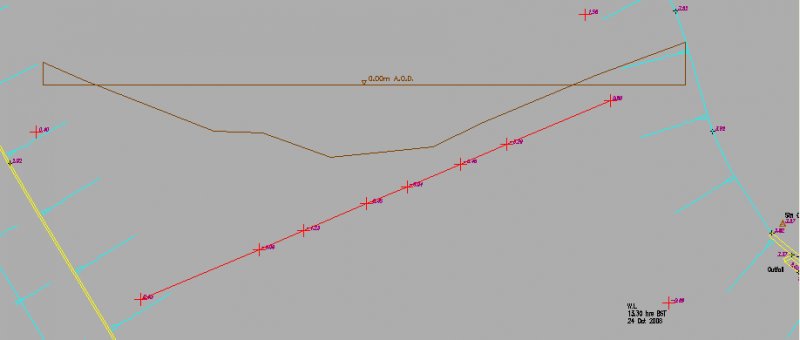

[ATTACH=CONFIG]55832[/ATTACH]



How you do that?

Share this post


Link to post
Share on other sites
BIGAL

Easy Rotate3d pick cross section and realign using vpoint 1,1,1 so can see whats going on.

Share this post


Link to post
Share on other sites
