how to extrude 3D polylines to 3D solid?

Recommended Posts

kay scarpetta

hi,

I wish to know how to extrude polylnes to 3D solids in autocad?



I am new in cad, and i have around 100 shapes with height but in polylines, so i have to extrude.. i need someone to please tell me how to do this..

i searched online and on utube, but i found only how to draw directly.

For my case i already have my 3D polylines. i need to extrude..



I am grateful for any help..

kay

Share this post


Link to post
Share on other sites
BKT

3D polylines can be extruded only if all of the segments of the line are coplaner. Try this test: If you can select the 3D polyline that represents the "base" of one of the buildings, try to extrude it. Choose Extrude, select the 3D Polyline, press Enter so you're only trying to extrude one entity, then enter a number for the height. See if that works. If no luck, let us know exactly what shows in the command line window.

Share this post


Link to post
Share on other sites
kay scarpetta
Why did you start a new thread?



I don't know what Youtube videos you were watching, but there are lots of videos about extruding shapes in Autocad: https://www.youtube.com/results?search_query=autocad+extrude



its jsut that am soo confused...

i have heaps of building shapes as u saw, with different height and so on..

I have created this file with a lot of hard work for weeks..

Now i am so lost, i never once used Autocad in my life.. and i have a 1 week deadline. :( :( :(

Share this post


Link to post
Share on other sites
kay scarpetta
Why did you start a new thread?



I don't know what Youtube videos you were watching, but there are lots of videos about extruding shapes in Autocad: https://www.youtube.com/results?search_query=autocad+extrude



everything am reading and watching is showing how to create polyline and then extrude..

nowherre is showing how to extrude the already designed polylines in 3D..

so u see why am soo confused?

Share this post


Link to post
Share on other sites
kay scarpetta
3D polylines can be extruded only if all of the segments of the line are coplaner. Try this test: If you can select the 3D polyline that represents the "base" of one of the buildings, try to extrude it. Choose Extrude, select the 3D Polyline, press Enter so you're only trying to extrude one entity, then enter a number for the height. See if that works. If no luck, let us know exactly what shows in the command line window.

thank you for your reply

I tried one building it did work indeed, but its not making the shape of the top of the building.. when am extrude am taking from the base and pulling up.. so the top of each building is different.... its not working finally...:( :( :(

Share this post


Link to post
Share on other sites
kay scarpetta

i do not think the option extrude is what should be used...:( Oh gosh am soo lost...:(

Share this post


Link to post
Share on other sites
Cad64

I just tried using the LOFT command and it worked pretty well. You just need to delete the vertical 3D Polylines so that only the the base and the top polylines remain. Then run the LOFT command, select the bottom polyline and then the top polyline and this will create a Solid. You will still have to do each shape one at a time, but I think it will be better than trying to Extrude each one to the correct height. And by my estimation, you have a lot more than 100 shapes. More like 1,000.



Just out of curiosity, what is this project for?

Share this post


Link to post
Share on other sites
kay scarpetta
I just tried using the LOFT command and it worked pretty well. You just need to delete the vertical 3D Polylines so that only the the base and the top polylines remain. Then run the LOFT command, select the bottom polyline and then the top polyline and this will create a Solid. You will still have to do each shape one at a time, but I think it will be faster than trying to Extrude each one to the correct height. And by my estimation, you have a lot more than 100 shapes. More like 1,000.



Just out of curiosity, what is this project for?

for one of my research article...

I just completed my PhD.

Share this post


Link to post
Share on other sites
kay scarpetta

I just tried and it worked.. but OMG, its one building at a time.

have you any idea how to do this by group?

thank you very much

Share this post


Link to post
Share on other sites
kay scarpetta
I just tried using the LOFT command and it worked pretty well. You just need to delete the vertical 3D Polylines so that only the the base and the top polylines remain. Then run the LOFT command, select the bottom polyline and then the top polyline and this will create a Solid. You will still have to do each shape one at a time, but I think it will be better than trying to Extrude each one to the correct height. And by my estimation, you have a lot more than 100 shapes. More like 1,000.



Just out of curiosity, what is this project for?



hey i created a new file and try to export my 1 building to .stl and still i obtain error!!!

Share this post


Link to post
Share on other sites
Cad64
I just tried and it worked.. but OMG, its one building at a time.

have you any idea how to do this by group?



Sorry but no. I don't know of any easy way to do this other than one at a time.

Share this post


Link to post
Share on other sites
Cad64
hey i created a new file and try to export my 1 building to .stl and still i obtain error!!!



What is the error? I just tried and was able to export without any errors.

Share this post


Link to post
Share on other sites
kay scarpetta

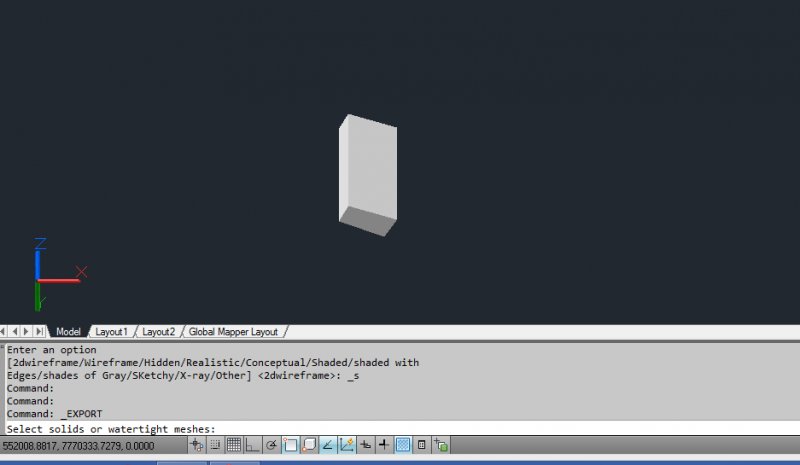

plzz see the error..


Share this post


Link to post
Share on other sites
kay scarpetta

hmm Cad64,



Can u see where is my problem from..?



thanks heaps

Kay

Share this post


Link to post
Share on other sites
Cad64
plzz see the error..



I don't see an error. I see Autocad asking you to select the solids that you want to export. Have you selected the object?

Share this post


Link to post
Share on other sites
kay scarpetta

of course i selected the object...:(

Share this post


Link to post
Share on other sites
Cad64

Well, I'm not sure what the problem is. If you run the Export command and select the object it should either export or give you an error message but it seems that neither of these things is happening. I don't know if there is a problem with the export function in 2010 or if you're doing something wrong, but it's getting late and I need to get some sleep. Hopefully someone else will be along shortly with some ideas. Good luck.

Share this post


Link to post
Share on other sites
kay scarpetta

am downlaoding the cad 2016...

lets see what happens..thanks heaps for all dear Cad 64



on my part of the world its 10 am

thanks

kay
