need help drawing a cribbage board

Recommended Posts

garrysems

I'm pretty new to Autocad but understand some of the basics. Unfortionately this task is beyond my experience. I need to draw a cribbage board shaped like the Calgary Flames logo ( the burning C ). I'm sort of stumped as to how to go about this. Here are some questions to get me going.



1. what type of image should I pull from the net to begin with?



2. how do I bring the image into autocad so that I can work on it?



3. how do I trace the general outline? I want to offset the outline so that my cribbage peg holes follow the general shape of the logo.



4. how do I calculate the total length of this shape so that I can divide it up evenly for the peg holes.





I appreciate any help anyone can give on this. Hopefully I can figure it out so I can cnc the board and take some pics! Thanks again!

Share this post


Link to post
Share on other sites
ReMark

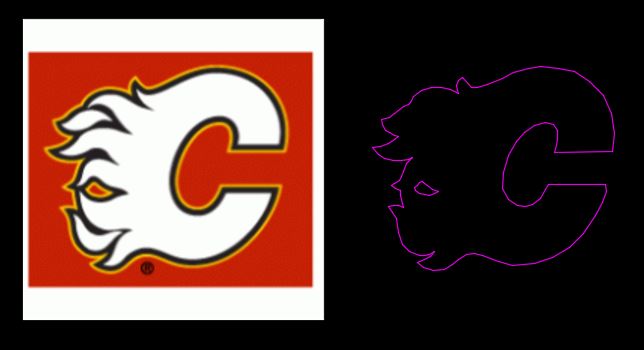

Rough cut using a .gif file and the IMAGEATTACH command. Traced using a polyline. No attempt made at smoothing the lines. Not necessarily the best method in my opinion for what you ultimately want to do.
