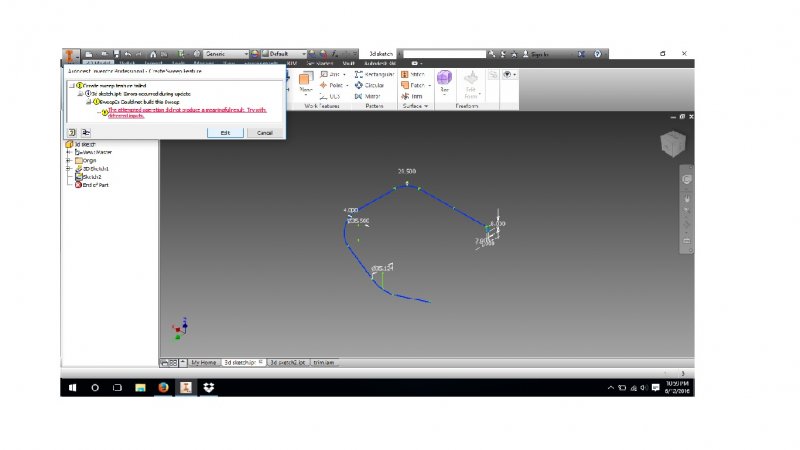

neilew Posted June 13, 2016 Share Posted June 13, 2016 I am trying to draw a staircase for a customer that has helical corners. I have drawn a 3d sketch of the center line of the stringer and am trying to sweep a 2d sketch along it to represent the stringer. When I try I get an error that reads "the attempted operation did not produce a meaningful result. try with different inputs." The sketch consists of about 6 straight lines, 2 bent lines, and 2 helix (90 degree). If I remove the last straight line and the last helix it works fine. If I draw those 2 entities in a separate sketch it also works fine. I can't figure out why it won't work as a complete sketch. any help would be greatly appreciated. Quote Link to comment Share on other sites More sharing options...
shift1313 Posted June 14, 2016 Share Posted June 14, 2016 Is there a tangency on the last two segments? If not that might be it. Quote Link to comment Share on other sites More sharing options...
neilew Posted June 15, 2016 Author Share Posted June 15, 2016 Someone else mentioned that but I'm not sure how to check it. The end of the 2nd to last straight line and the beginning/ctr point of the helix have the same x value so I would assume tangency. Maybe not if the last 2 straight lines are not 90 but I made the helix 90? Any more suggestions would be great Quote Link to comment Share on other sites More sharing options...
shift1313 Posted June 15, 2016 Share Posted June 15, 2016 Someone else mentioned that but I'm not sure how to check it. The end of the 2nd to last straight line and the beginning/ctr point of the helix have the same x value so I would assume tangency. Maybe not if the last 2 straight lines are not 90 but I made the helix 90? Any more suggestions would be great Sketch Constraints are typically persistent, meaning they apply or snap if you sketch close enough. To apply it you would select the tangent constraint(circle with a line at about the 2 oclock position) and then select the two entities you want to constrain. You should be able to find it on the sketch tab. Do you know how to manually apply constraints? I don't currently have inventor or i would take a screen shot for you. Quote Link to comment Share on other sites More sharing options...
