MDD73

Edit Wall Style Material Definition

Recommended Posts

MDD73

Can someone please help me. I am trying to edit a wall style. If I select the new wall style say "Blockwork X 100mm" in style manager. Select 'materials tab' add new definition '100mm Blockwork Load Bearing' change the Plan Hatch to ANS137 and click OK, No Problem. What I have not understood is how do I stop it changing the Plan Hatch in another wall style I created. I must be missing something somewhere any help would be appreciated.

Share this post


Link to post
Share on other sites
danellis

It *sounds* like you're changing your global plan hatch rather than the material-specific one.

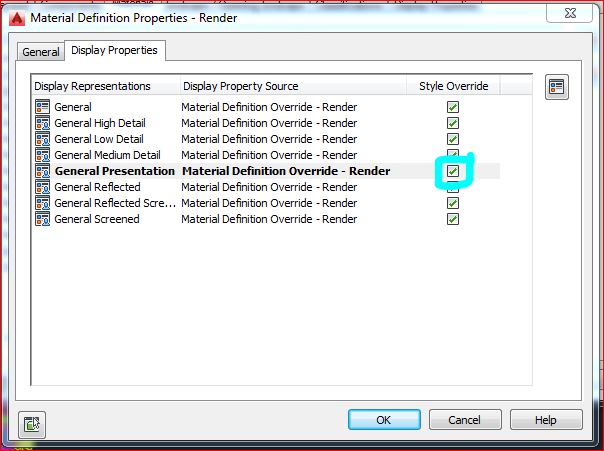

In the Material definition box, make sure that you tick the little box to the right of Display Representation you're using (under the Style Override column)...





dJE

style over-ride.JPG

Share this post


Link to post
Share on other sites
MDD73

Thank You danellis I must have spent 6 hours trying to understand where I was going wrong, really appreciated.

Share this post


Link to post
Share on other sites
danellis

No worries. ACA can send you in loops sometimes. Over the weekend I spent about two hours trying to create a wall style that was symmetrical about its baseline before realising that I could just design the wall style from one side and use the centreline justification when I drew the wall.
