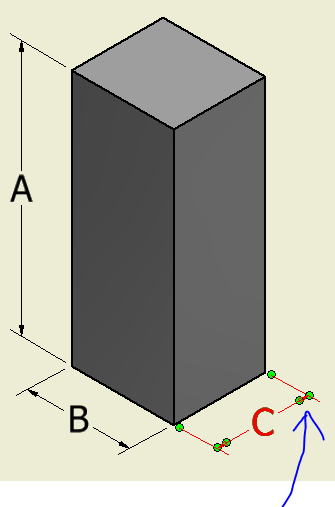

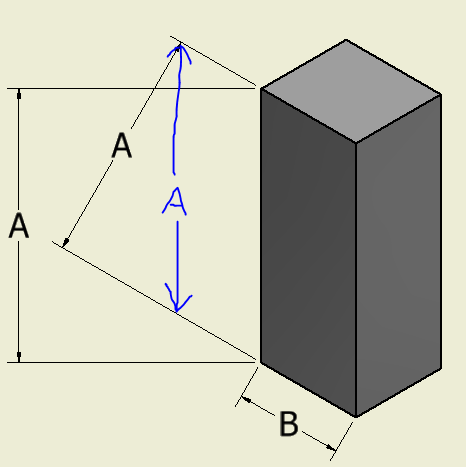

gbradley Posted November 3, 2016 Share Posted November 3, 2016 I know that you’re not supposed to dimension ISO drawings. Anyway I was trying to create something for reference, and I didn't like the angle of the Dimensions. Is there a way to make the dimension line vertical? Quote Link to comment Share on other sites More sharing options...

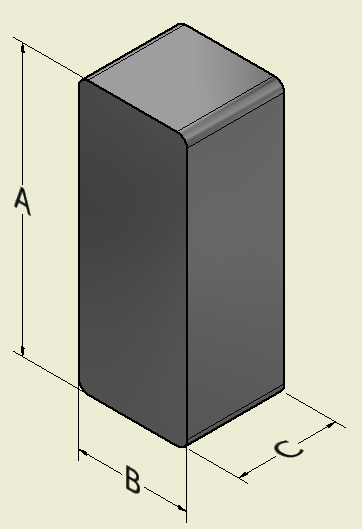

rkent Posted November 3, 2016 Share Posted November 3, 2016 I have 2017 IV and it dims the proper way (the way you sketched). I can't get it to dim the other way you have shown, not sure what is going on. After starting dim and picking the edge or two points, right click and explore options. Quote Link to comment Share on other sites More sharing options...
gbradley Posted November 3, 2016 Author Share Posted November 3, 2016 I can sort of get it by grabbing the dimension and swinging it to align, but it doesn't snap to the 30° or whatever that is. Thanks Quote Link to comment Share on other sites More sharing options...
rkent Posted November 3, 2016 Share Posted November 3, 2016 post the ipt and idw files Quote Link to comment Share on other sites More sharing options...
gbradley Posted November 3, 2016 Author Share Posted November 3, 2016 Here are the files. RectCore.ipt RectCore.dwg Quote Link to comment Share on other sites More sharing options...
rkent Posted November 3, 2016 Share Posted November 3, 2016 I don't know how you wound up with that iso view. If I create a base view and then project an iso from that the dims work just fine. I would suggest doing that and then deleting the base view. Quote Link to comment Share on other sites More sharing options...

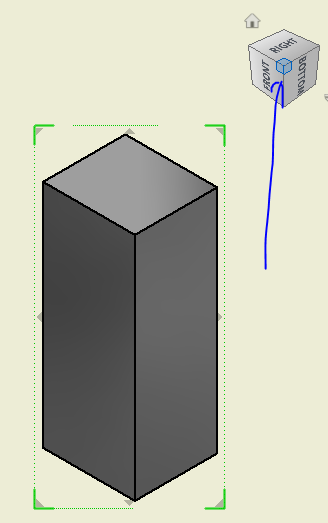

gbradley Posted November 4, 2016 Author Share Posted November 4, 2016 Aw yes, my bad. I made my base view picking the corner of the icon. Then when I tried to dimension from that, it didn't work so well. It's all good now. Thanks RKent Quote Link to comment Share on other sites More sharing options...
