sivapathasunderam

Auto update dimensions

Recommended Posts

sivapathasunderam

Hello anyone;



Road is an Xref file, it is revised, but the dimensions should change automatically

What I have to do? (I am using AutoCAD 2013 or Is there is a Lisp)



thanks

Siva

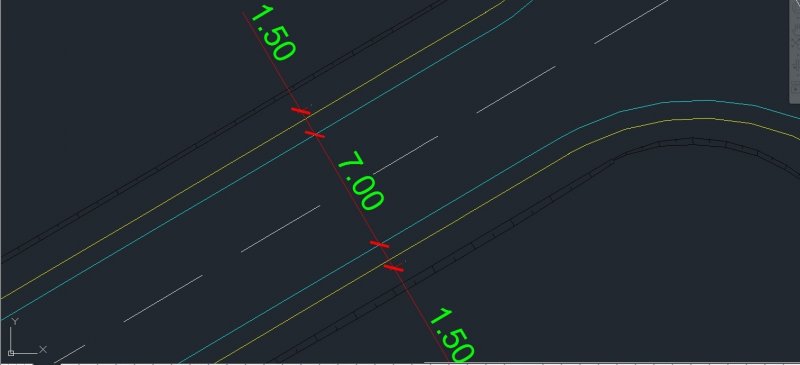

cad tutor auto update dimension.jpg

Share this post


Link to post
Share on other sites
ReMark

Have you tried reloading the xref via the External References palette? The status of the xref should show an exclamation point and the words "Needs reloading". Right click on the xref then choose Reload.

Share this post


Link to post
Share on other sites
RobDraw

ReMark, he is asking how to make the dimensions update to the changes in the XREF which has already been reloaded.



Can dimensions be associated with XREFs? My test says they can but they break when a change is made in the XREF.



I think you have to manually edit the dimensions to the changes in the XREF.

Share this post


Link to post
Share on other sites
sivapathasunderam
ReMark, he is asking how to make the dimensions update to the changes in the XREF which has already been reloaded.



Can dimensions be associated with XREFs? My test says they can but they break when a change is made in the XREF.



I think you have to manually edit the dimensions to the changes in the XREF.



Hello



What about the model space & layout space? (Object is in model, dimensions are in layout)

not clear for me, sometimes works sometimes no

Share this post


Link to post
Share on other sites
RobDraw

Once again, even associated dimensions won't update to changes in an XREF it doesn't matter what space they are in.

Share this post


Link to post
Share on other sites
3dwannab

Had this issue with xrefs and dimensioning in (paperspace (not my idea)).



All you have to do is issue the DIMREGEN command. Not sure why this even exists. It should automatically do it.
