amitbhat212

Hi, I have just started using autocad two weeks ago and I'm trying to make my first script file, a joined, closed polyline that is a rectangle. The code is below:



_pline -15000,0 15000,0 15000,-1000 -15000,-1000 c



(there is a space after the 'c' and a return after the line)



When I run, it creates a trapezoid and I'm not sure why (it is joined and closed). The first and second points are in the correct locations. The third point is not (it's at (15000,-1160.7425)) and the fourth point is not (it's at (-15200,-1160.7425)). All the angles from the XY plane are 0, so none of them are going into the z dimension. Also, the problem vanishes when I remove the negative signs from the y coordinates.



Does anyone know what's going on and can provide a fix?



Thanks!

Share this post


Link to post
Share on other sites
Dadgad

Welcome to CADTutor. :)

Might you consider using the RECTANGLE command in your script, instead of the PLINE command?

Edited by Dadgad

Share this post


Link to post
Share on other sites
steven-g

First welcome to Cadtutor, and second welcome to the world of automating Autocad, your script works just fine for me, so the good news is you did it correctly. Now to figure out what went wrong, did you have any other objects in the drawing, depending on the zoom scale a script will still snap to existing geometry that is close to where your points are supposed to be, try turning off osnaps F3 before running the script.

Share this post


Link to post
Share on other sites
rkmcswain

I agree about the running object snaps.



Try this script



osmode
0
_pline
-15000,0
15000,0
15000,-1000
-15000,-1000
c

Share this post


Link to post
Share on other sites
Dadgad

While turning off your osnaps works, is a great idea, and the easiest, :beer:

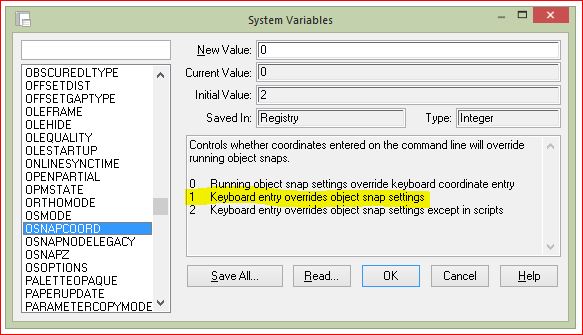

it looks like you could also change the OSNAPCOORD setting from the default 0 to 1.


Share this post


Link to post
Share on other sites
steven-g

+1 Dadgad

I'll look into that one, I quite often turn off osnaps in a script as shown by rkmkswain, but in LT you have to do some funky stuff to get the proper settings back from before the script, OK if you always use the same settings but with variable osnap settings that can be a problem, having a boolean is much nicer.

Share this post


Link to post
Share on other sites
BIGAL

steven-g one way maybe around the remember osnaps could be to ignore what they were and reset to your most commonly used "osmode 47"



Back to the poster as they have access to lisp and using rkmcswain suggestion

(setq oldsnap (getvar "osmode"))
osmode
0
_pline
-15000,0
15000,0
15000,-1000
-15000,-1000
c
(setvar "osmode" oldsnap)

Share this post


Link to post
Share on other sites
amitbhat212

The rectangle command works with OSNAP on or off and the pline command works with OSNAP off.



Thank you everyone!
