Hi i Need help creating Solid

Recommended Posts

wezzo18

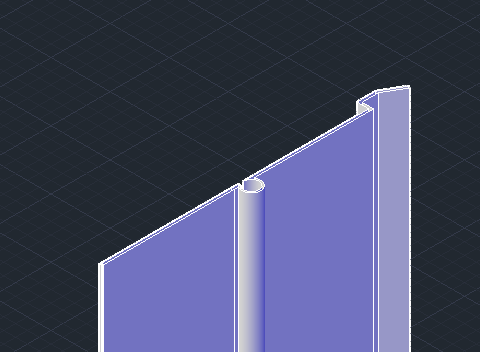

This is what it looks like but i need it to be a solid. Someone please help. It is due next week Wednesday


Share this post


Link to post
Share on other sites
ReMark

What seems to be the problem? Why haven't you been successful?



It appears as though all it would take is to create the proper 2D profile then either use the EXTRUDE or PRESSPULL command to give it a height. What am I missing here?

Share this post


Link to post
Share on other sites
wezzo18

can i send you the autoCAD file and can you find the 2D profile and extrude it to 29 units?

Share this post


Link to post
Share on other sites
ReMark

You can just attach a copy of the drawing file (.dwg) to your next post. I'll take a look at it. But first....please answer my questions.

Share this post


Link to post
Share on other sites
ReMark

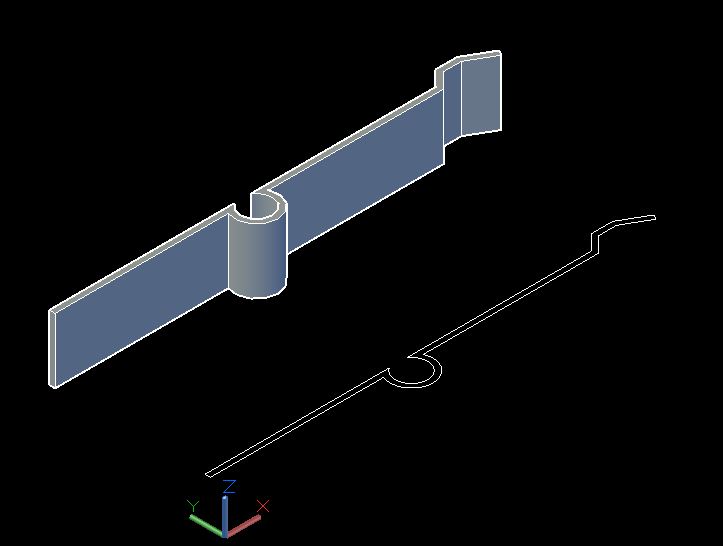

Extruded profile.JPG



The command I used...



Command: EXTRUDE

Current wire frame density: ISOLINES=4, Closed profiles creation mode = Solid



Select objects to extrude or [MOde]: _MO Closed profiles creation mode [sOlid/SUrface] : _SO



Select objects to extrude or [MOde]: 1 found



Select objects to extrude or [MOde]:



Specify height of extrusion or [Direction/Path/Taper angle/Expression]: 12.0



Note that MOde is set for creating a SOlid not a SUface.

Share this post


Link to post
Share on other sites
wezzo18

may i please have that file so i can add that into my Drawing

Share this post


Link to post
Share on other sites
ReMark

Sorry...no. You would be better off learning HOW to do it yourself rather than using my example. It is not that difficult.



Why are you so reluctant to answer my questions? I wasn't born with this knowledge. Like you I had to learn it on my own and along the way I made numerous mistakes.



Please attach a copy of the drawing that you have to your next post and I'll try to discern where you may have gone wrong.

Share this post


Link to post
Share on other sites
ReMark

I looked at your drawing.



All you have to do is zoom into the profile enough so that when you execute the PRESSPULL command you'll be able to easily pick in the space between the lines. Once the profile is highlighted just type in the required height of 29 units and you are done. The resultant object will be a solid. It appears that you used the EXTRUDE command on a series of lines and arcs which will always result in a surface. One way around this would have been to join all the lines and arcs using the PEDIT command such that they form a single, continuous polyline object. Then you could have used the EXTRUDE command, picked the object and extruded it to the proper height with the end result being a solid. Understand?



Now, it is your turn. Pick either of the two methods. Have some faith in yourself. I know you can do this.

Share this post


Link to post
Share on other sites
ReMark

Well? Were you successful?

Share this post


Link to post
Share on other sites
wezzo18

no i wasnt... i need there to be no space between the two

Share this post


Link to post
Share on other sites
Dadgad
no i wasnt... i need there to be no space between the two



You CAN do it, just focus, and nobody better to show you the ropes than ReMark.

Please don't squander the opportunity by resisting. :|

Share this post


Link to post
Share on other sites
ReMark
no i wasnt... i need there to be no space between the two



I gave you two different methods for achieving this particular result (no space = a solid). If one did not work then try the other. There really is no good reason why either method would not work. I know because I tested both.



Note that the PRESSPULL command will work on any combination of lines, polylines, arcs and splines. Upon taking a closer look at your 2D profile I notice it is comprised of three polylines, two arcs and three lines for a total of eight objects.

Share this post


Link to post
Share on other sites
ReMark

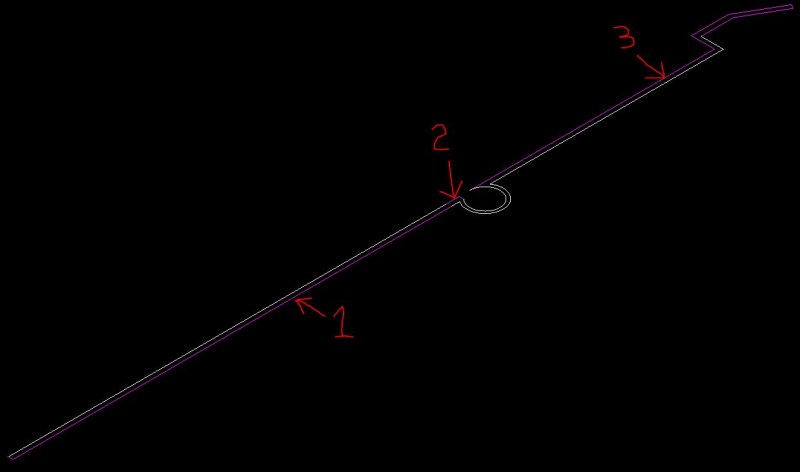

Look at the image below. The three magenta colored objects are polylines. Anything that is white is either a line or an arc.



2D profile.jpg



Use the PEDIT command with the JOIN option to connect all eight objects into one continuous polyline then extrude it. The result should yield a solid.



How to use the PEDIT command...



Command: PEDIT



Select polyline or [Multiple]:

Enter an option [Close/Join/Width/Edit vertex/Fit/Spline/Decurve/Ltype gen/Reverse/Undo]: J



Select objects: 1 found



Select objects: 1 found, 2 total



Select objects: 1 found, 3 total



Select objects: 1 found, 4 total



Select objects: 1 found, 5 total



Select objects: 1 found, 6 total



Select objects: 1 found, 7 total



Select objects: 1 found, 8 total



Select objects:



8 segments added to polyline



Question: Did you know your profile does not have a uniform width throughout? Was that intentional?

Share this post


Link to post
Share on other sites
ReMark

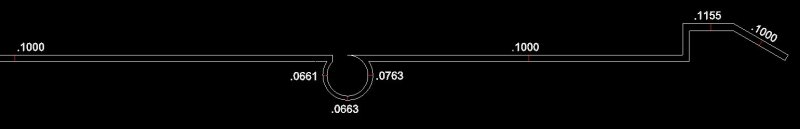

These are the varying widths of your profile. Why the variation?



Profile width.jpg

Share this post


Link to post
Share on other sites
