Recommended Posts

Alcapone001

Hello

We are using Civil 3D to generate profiles of our pipe network

But the format of the profiles as given by Civil 3D is not what we require

So we have to use a lisp to manually adjust the profiles but now on Vanilla Autocad

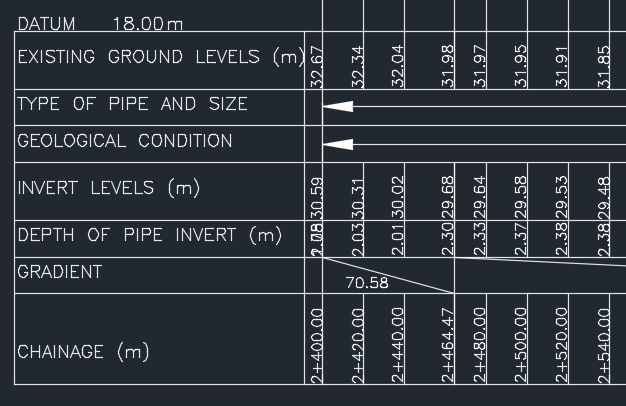

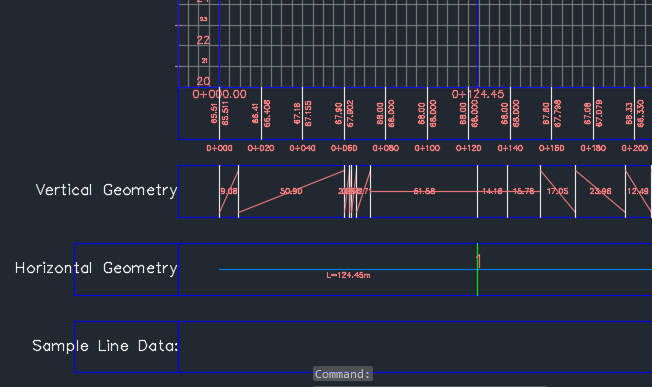

Attached is what Civil 3D gives us and what we require.

Anyone familiar on how we can achieve what we require by using Civil 3d alone....Civil 3D Profile.PNG

Required Outcome.PNG

Share this post


Link to post
Share on other sites
sandiegophil

Hello,



I have used pipe 'tables' to do almost exactly what you attached. The tables take some work to create properly but all of the fields you request seem to be available.



phil

Share this post


Link to post
Share on other sites
Alcapone001

Hi. Can you kindly elaborate on how to create and use pipe tables......

Share this post


Link to post
Share on other sites
sandiegophil

try these steps:



open a file with a pipe network

from the pipes pull-down menu select "add tables" second item from the bottom

you will need to select a table style and you can choose items either by picking them separately or as a network

you will need to modify the table style to include the fields you need and the format you want them to be displayed.



or from the ribbon:

annotate-

add tables-

pipe network-





https://knowledge.autodesk.com/support/autocad-civil-3d/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/Civil3D-UserGuide/files/GUID-B4542E93-B224-4F27-A47E-C46AFC790C3B-htm.html



hope this helps

Share this post


Link to post
Share on other sites
