Can someone please help me to draw the following image by using Tan tan radius

Recommended Posts

ahm

Hi There,

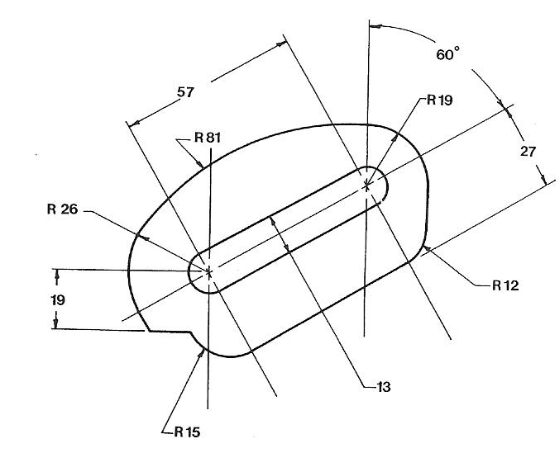

Can someone please help me to draw that in AutoCAD? I am new in AutoCAD. Tried to use Tan Tan radius. But couldn’t finish the drawing.

Many Thanks in advance.

Screenshot 2017-07-28 20.40.39.png

Share this post


Link to post
Share on other sites
ReMark

I think some information may be missing. How much were you able to complete?

Share this post


Link to post
Share on other sites
ahm

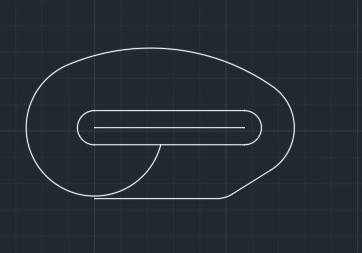

I have done up to this. But not sure that it’s done correcly.

Screenshot 2017-07-28 22.21.58.png

Share this post


Link to post
Share on other sites
ReMark

I'll have to give it a try myself. As to your drawing the right hand side (where the straight line is located) does not appear to be correct.

Share this post


Link to post
Share on other sites
ReMark

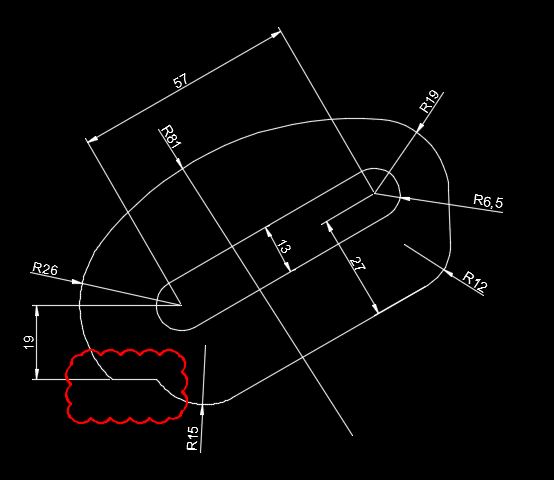

Here is what I was able to do. I had to make a couple of assumptions in order to complete the area surrounded by the red cloud.




Share this post


Link to post
Share on other sites
CyberAngel

If you assume the odd line (inside ReMark's cloud) is horizontal, the far right edge is vertical, and the nondimension lines denote endpoints, it all fits. In other words, the segment between the centerline and the convex angle inside the cloud is a line not an angle.




Share this post


Link to post
Share on other sites
ahm

Is that possible to write the steps for you?

Because as a new user my brain stuck after the step I showed you.

Share this post


Link to post
Share on other sites
ahm

Thanks I have finally finished the drawing. I figured out myself. Anyway thanks for your help.

Share this post


Link to post
Share on other sites

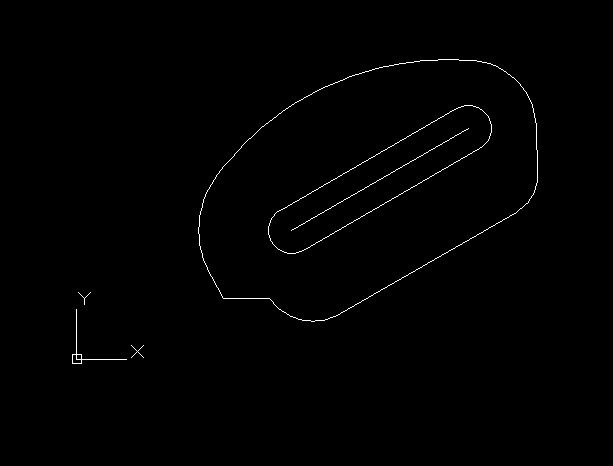

maratovich

Like this ?

sam.dwg

Share this post


Link to post
Share on other sites
eldon

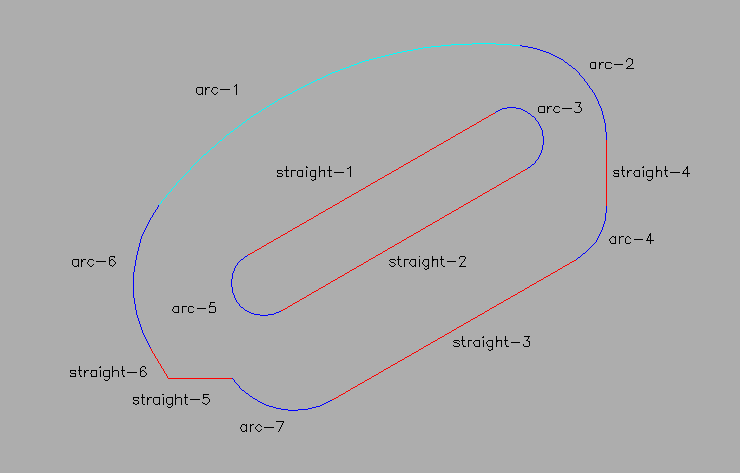

It is apparent to me that observation of the problem is paramount to drawing it out. The quality of the picture of the problem is generally not of the finest, so it is up to the individual interpretation as to what is drawn.



The attached picture is how I saw it, and it is apparent that not everyone saw it the same way.



But the OP completed the drawing to their satisfaction and must be commended.


Share this post


Link to post
Share on other sites
CyberAngel

To tie off the thread, here's how I established the parts in the bottom left corner.



The first object was the centerline, which is at a 30-degree angle. We know this because it's 60 degrees off vertical (also in the definition of arc-2 in eldon's diagram). Offset it by 27 to get straight-3. That also establishes one end of arc-7.



Offset straight-3 up by 15 (or the centerline down by 12). The end of that line is the center of arc-7. I assumed the angle of that arc is 90 degrees.



Once you've drawn arc-7, draw a horizontal line to the left. That's straight-5, but we don't have the other end yet.



Extend the centerline left by 26. That's where arc-6 ends and straight-6 begins. Trim arc-6 if necessary. You can draw a line perpendicular to the centerline or rotate it 270 degrees.



Fillet straight-5 and straight-6 with a radius of zero. Delete your temporary lines and you're done.



Please note, as several of us have pointed out, there is not enough information provided in the design to produce an unambiguous drawing.
