Block rotating when using Block Replace

Recommended Posts

Cidona

Dear Forum.



Any assistance in this regards would be very much appreciated...



Please see attached drawing. There are two blocks. There is 1 instance of "Spk_Umbrella_1" (located at 0,0,0) and hundreds of "Fitting11_7101". I'm looking to replace all the "Fitting11_11" with "Spk_Umbrella_1", however when I do the "Block Replace" command (from Express Tools) when it changes the block it 'flips it' to the wrong orientation.



The block "Spk Umbrella_1" is combination of 3D Faces.



Thanks again for any insight/solutions.

1st Flr Umbrellas.dwg

Share this post


Link to post
Share on other sites
mikekmx

the easiest solution may be to select all the blocks that have been 'flipped' and then in 'properties', 'geometry', change one of the scales

E.G.

from

x = 1

y = 1

z = 1

to

x=1

y = -1

z = 1



if y & z are greyed out you will have to open the block in block editor and select 'no' for 'scale uniformly'.

Share this post


Link to post
Share on other sites
Cidona

Thank you very much much for your reply mikekmx!!

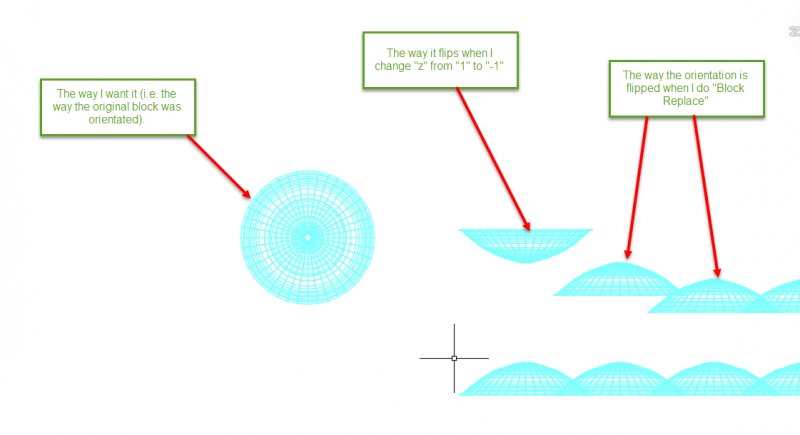

However, I'm still stuck. When I change the z from 1 to -1 it flips it 180 degrees, however I only want it flipped 90. Please see attached screen shot. Changing x & y didn't help.






Any further suggestions would be great!



Thank you!

Share this post


Link to post
Share on other sites
mikekmx

that's the easy fix out the window then.

another solution might be to remake the errant block but with x y &/or z rotated to suit. it might take a bit of trial and error. call the modified block a new name or if you want to keep the name, remove all instances of that block & do a purge before you insert the modified block .



sorry, but i am just on my laptop atm & can't try this for you right now.

the above is just a suggestion to try. someone may well come along with a tested solution.

Share this post


Link to post
Share on other sites
Cidona

That works as a 'work around' so perfect for me!



Thank you very much for your help mikekmx!!!

Share this post


Link to post
Share on other sites
mikekmx

ace :-)



mods - please change my success rating from 0/443 to 1/444

Share this post


Link to post
Share on other sites
