Hello,

I have a series of 3DFaces provided by the project civil engineer - these elements represent footpaths, roads, cycleways etc. These elements are sloping on various grades as one would expect. I'd like to generate a 3D Polyline that forms a boundary around all the elements that form a section of road or footpath. I can use the 3DPoly tool to visit each external vertex and snap to the vertex but is there a tool or Lisp program that can do this automatically? I've tried the LineworkShrinkWrap command but that doesn't retain all the correct Z values for the external vertices.

In the attachment, the layer DESIRED RESULT (magenta) is what I am trying to achieve.



Many thanks in advance!



3DPolyTraceQuery.dwg

Share this post


Link to post
Share on other sites
Steve Wheatley

I've updated the CAD example to fully illustrate the problem



original 3d faces (CYCLEWAY layer - brown)

lineworkshrinkwrap (LINEWORKSHRINKWRAP layer - yellow)

desired result (DESIRED RESULT layer - magenta)





The desired result was manually created by tracing the extent of the 3DFaces using 3DPOLY command.



Hopefully this makes more sense?

[ATTACH]62305[/ATTACH]

3DPolyTraceQuery-v2.dwg

Share this post


Link to post
Share on other sites
BIGAL

I am confused the magenta and yellow are the same.



Using shrinkwrap in CIV3D outputs a 3dpoly what you want.



Your profile says Revit is this correct ?

Share this post


Link to post
Share on other sites
Steve Wheatley

Bigal, thanks for your reply. I have to disagree. LINEWORKSHRINKWRAP in Civil3D doesn't do what I want. The magenta and yellow lines are different. The magenta line is what I want. I've attached some screenshots - you can see the difference between the original 3D faces, the 3D polyline (magenta) manually traced using 3DPoly and the result from running LINEWORKSHRINKWRAP in yellow.



BTW - my profile is correct - I am using Revit mostly, and this particular workflow is to allow me to create Revit Floors automatically from Civil3D elements using Dynamo.

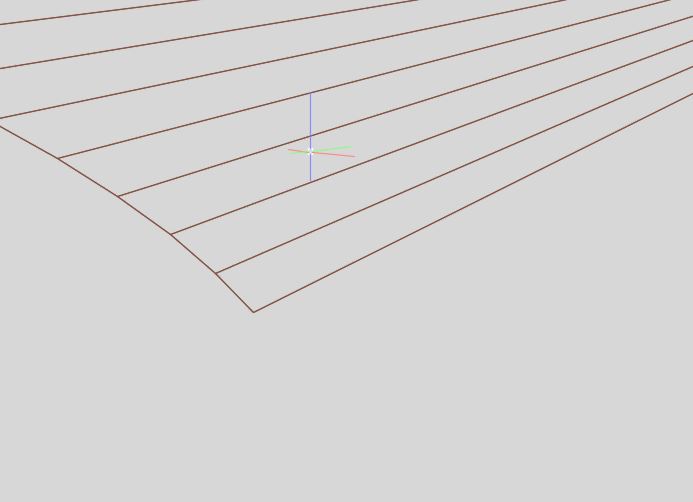

Original 3Dfaces = brown

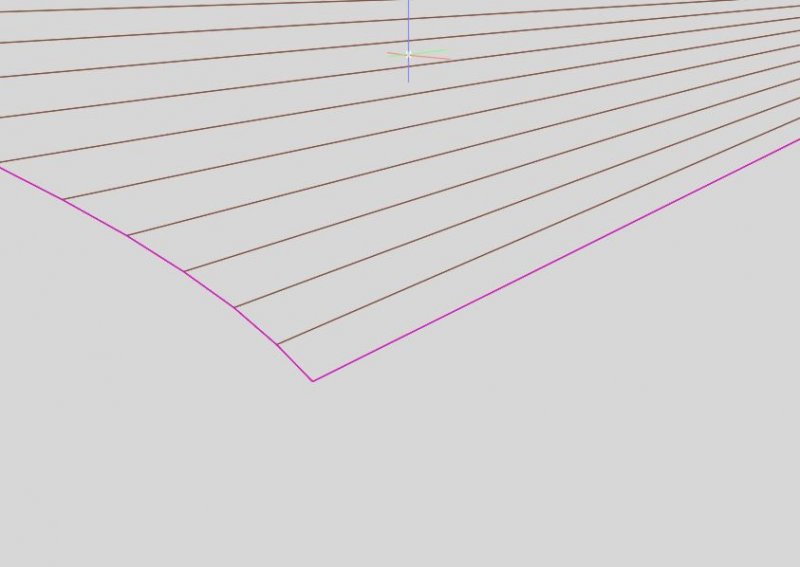

Manual trace with 3DPOlY = magenta

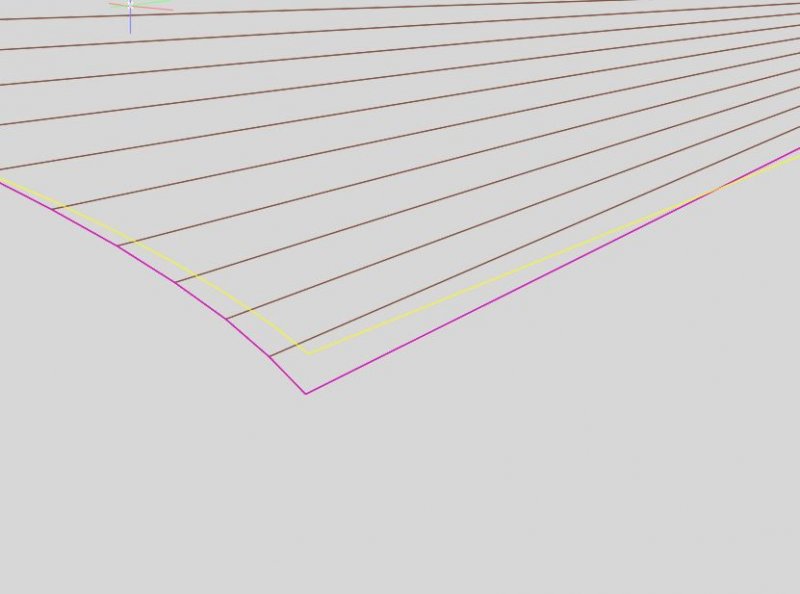

Shrinkwrap = yellow

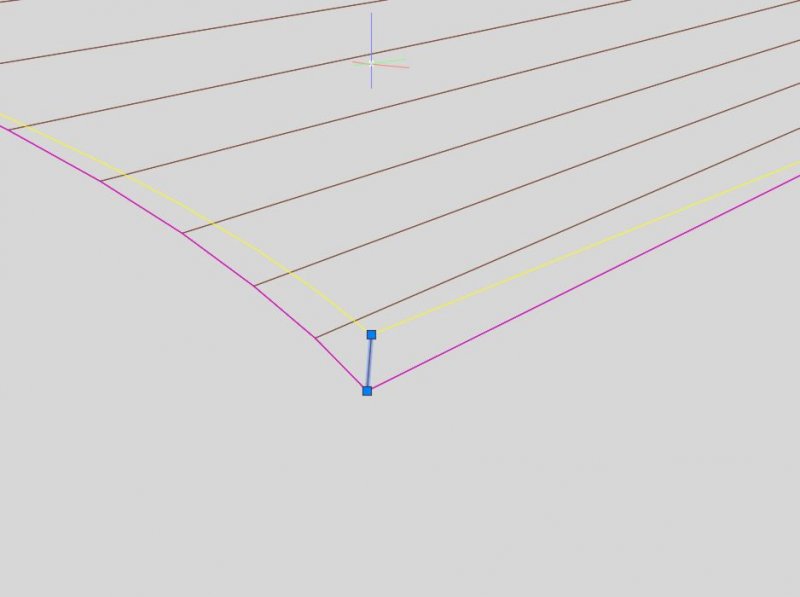

Difference shown in the last image



Difference between manual trace and shrinkwrap.jpg

Original 3D Faces.JPG

Manual trace using 3DPOLY.jpg

LINEWORKSHRINKWRAP result.jpg

Share this post


Link to post
Share on other sites
halam

Revit has nothing to offer? So you're looking for a workaround for a workaround based on conversion using (the famous) Dynamo..?



I think you just should not use Revit and DWG for Civil use in the first place. You're asking for trouble, world of pain, still leads to DWG in the end.



My cent!

Share this post


Link to post
Share on other sites
Steve Wheatley

Thanks for your reply Halam. I'll take it on board.

Share this post


Link to post
Share on other sites
SLW210

You might check and see if there is something in CADTools that can do what you want.

Share this post


Link to post
Share on other sites
Steve Wheatley

Thanks SLW210. I've got CadTools and I can't see anything that would achieve what I'm after.

Share this post


Link to post
Share on other sites
halam
Thanks for your reply Halam. I'll take it on board.



Thanks for taking that as my bold reply ;-)



I'm not sure you want to stick to Autodesk 'infra sollutions potfolio' either as a matter of fact

Why not try to find a more exotic and suitable elsewhere, i noticed some great things hapenning at Sketchup. Which most of the times is fairly good dwg compatible. Way better than the Revit beast. I'm not familiar with .skp abilities within the Dynamo playfield. Centainly there can be found some workflow skp into Revit.



Check this

https://extensions.sketchup.com/en/content/edge-tools²

Share this post


Link to post
Share on other sites
Steve Wheatley

SLW210 - I stand corrected. CadTools DOES have what I needed! Convert 3DFaces to 3DPolylines. It seems to do exactlty what I want. Glad I went back and had a closer look. Many thanks for your time and suggestion.



In case any other newbie needs to know CadTools can be downloaded from here: http://www.glamsen.se/CadTools.htm

Share this post


Link to post
Share on other sites
Steve Wheatley

Hi Halam

The project I am working on requires we use Revit and unfortunately our practice isn't in a position to dictate otherwise. Personally, Revit is a pain in the backside (for Landscape Architects) as it isn't really designed for hard landscape works. I'm not a civil engineer so I do not use Civil3D on a regular basis although our practice has licence. I have had to write code to convert 3D CAD linework into Revit Floor elements. This was the last piece of the puzzle. Turns out that CadTools has the tool to do the trick.

Share this post


Link to post
Share on other sites
Steve Wheatley

Thanks SLW210 - turns out you were right and CadTools does have the tool 3DFaces to 3DPolylines. Glad I wennt back and checked again!

Share this post


Link to post
Share on other sites
SLW210

I thought it might have, I haven't needed CADTools for a few months so couldn't remember, but was pretty sure I did something similar a while back.
