millimeter dimensions in bmp image

Recommended Posts

fine

Hi. I'm new to Autocad. I've made an image to be used for laser printing. The image size is 5x6 mm. The problem is when I use BMPOUT command in Autocad the image is not in millimeters so when I import it in the laser printing software my design is much larger than it should be. I asked on autodesk and the only response I got was that I have to adjust dpi. I don't know how to do that or what it is.

Share this post


Link to post
Share on other sites
ReMark

"DPI: Dots per inch is a measure of spatial printing or video dot density, in particular the number of individual dots that can be placed in a line within the span of 1 inch." Wikipedia



From AutoDesk: "The BMPOUT command is not as flexible as plotting to a device to create a BMP file, because it has no options other than the file name and the objects to include."

Share this post


Link to post
Share on other sites
fine
"DPI: Dots per inch is a measure of spatial printing or video dot density, in particular the number of individual dots that can be placed in a line within the span of 1 inch." Wikipedia



Thanks. Now can you tell me how to change this in AutoCAD 2014?

Share this post


Link to post
Share on other sites
ReMark

See previous post for an addition I made re: BMPOUT. You have more options if you plot to a device.

Share this post


Link to post
Share on other sites
fine

How do I plot to a device? I'm sorry I'm new to Autocad

Share this post


Link to post
Share on other sites
fine

Thanks I'll give it a try.

Share this post


Link to post
Share on other sites
fine

I tired using the plotting command and since it did not have the option of plotting a bmp file I chose PNG. Now I didn't have the option of using any unit other than pixels. I tried playing around with scaling (x pixel = y unit) that didn't help either because other than hit and trial I had no other way to find the appropriate size.



Next I saw a video suggesting the use of -DWGUNITS to change the dimensions of drawing. I did that and changed my drawing units to millimeter. When I used BMPOUT to export the image it was the same problem.



I feel like AutoCAD just wants to **** me off at this point. I've tried plotting, -DWGUNITS, UNITS, what else can I do? Also why are there so many commands to change the units? Can't they just make one and not make me want to put a hammer through my computer?

Share this post


Link to post
Share on other sites
ReMark

The knowledge based article I provided the link to above detailed how to add a device and then how to plot to said device (to create a BMP file). Did you follow the instructions?



Re: units. They are a convention created for those of us who can't get past the concept of 1 unit can equal one of anything (an inch, a millimeter, a chain, a rod, a lightyear, etc.).



BTW...your image is quite small 5x6mm.



300 dpi is considered to be good quality when it comes to printing an image. 1 inch = 300 pixels. So, if we were using inches, a 5x6 image would require 1500x1800 px (pixels) to print at 300 dpi. However, you are using millimeters. You'll have to do the math.

Edited by ReMark

Share this post


Link to post
Share on other sites
fine

Yes I did. And even after creating a new plotter for BMP files and trying to change its properties I only had the option of changing the pixels.

Share this post


Link to post
Share on other sites
ReMark

That's why I included the lesson about dpi and pixels above.

Share this post


Link to post
Share on other sites
BIGAL

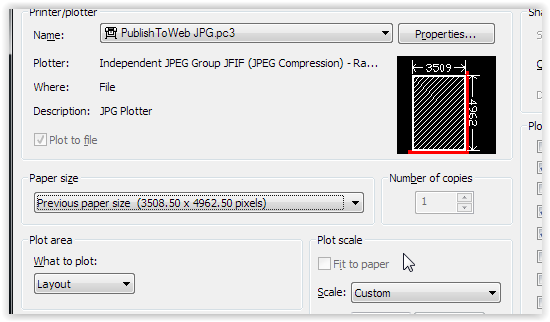

We plot jpgs all the time at 200dpi but a A1 sheet 36x24 often other stuff smaller size and the secrect is in setting up your sheet plot size as pixels our A1 is 801mm long so pixels = 801*200/25.4 = 6307 pixels in inches. so 5mm =5*200/25.4 = 39 pixels @300 dpi = 59 pixels

Screen Shot 11-03-17 at 12.42 PM.PNG

Share this post


Link to post
Share on other sites
fine

Hi. Ok so this is what I have done so far at 300 dpi:

I need 5x6 mm image which is approx 0.19x0.23 inch so I need 57x69 pixels. Correct?



Now when I plot I make a custom paper having dimension 57x69 pixels. Correct?



Now this is where I'm still confused:

In the plot scale of the plot manager I asks to define 1 pixel = x units. What is this and what value should I put here?



Please correct me if I made any mistakes in the calculations or setting the paper size

Share this post


Link to post
Share on other sites
fine

The thing is my paper size isn't defined. I will be using the laser to reduce a piece of polymer as paper so I can use any size polymer I want.

This is what I've done so far at 300 dpi:

5x6 mm = 0.19 x 0.23 inch

the number of pixels needed are:

57x69 pixels.



Since I'm free to use any size paper I want so in the plot manager I have made a custom paper having dimensions 60x70 (to give a little wiggle room). Now in the plot scale there is the option of 1 pixel = x units. What is this and how do I set it?

Share this post


Link to post
Share on other sites
