rmsmit02

Extracting and Adding Dim Info

Recommended Posts

rmsmit02

Hello All,



I am working on making Bills of Materials with Block information. I use tubing as a main component in my data extractions. What I would like to do is be able to extract the text overwritten length that I dictate from the all dimension leaders with the same part number, and add them to get an overall length of tubing used in the assembly.



For instance if I have two blocks, both with the part number "tube 1" but one has a dimension leader where I overwrite 5 (inches) and one has a dimension leader where I overwrite 6 I would like the data extraction to show "tube 1" with 11 (inches).



Much appreciated!

Share this post


Link to post
Share on other sites
BIGAL

Sounds simple for the best help post a dwg with a couple of blocks.

Share this post


Link to post
Share on other sites
rmsmit02

W0mt8aFRbfyS9aFR2



Hello,

I would like the QTY of SIL-C-0250-2 to read 19.0 and the QTY of SIL-C-0625-4 to read 12.0 even though the measured distances aren't equal to the overwritten distances.

Share this post


Link to post
Share on other sites
rmsmit02

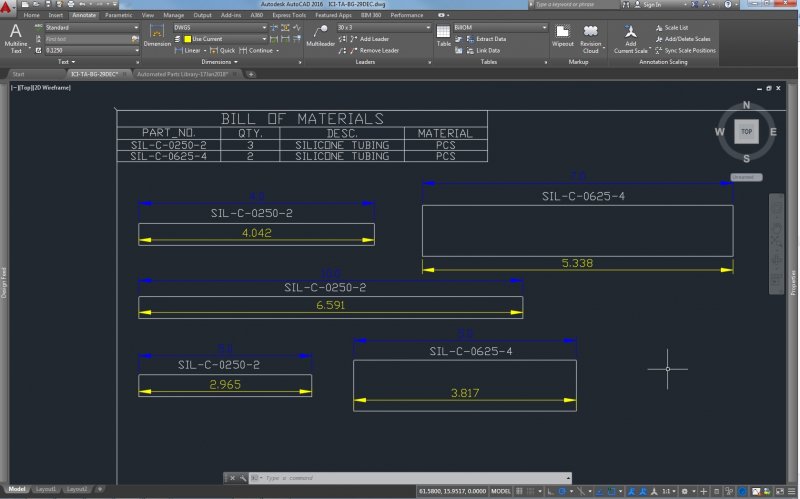

cad block assistance.jpg



My mistake, I have added the image now.



Thanks!

Share this post


Link to post
Share on other sites
