Trim inside a box on multiple blocks

Recommended Posts

cat3appr

Hello,



I have this map panel made by several blocks imported and constructed in CAD with an external utility.

The KP box looks terrible when other blocks go through it, but I can't trim inside because the KP box is on the main DWG , while the other bjects that I'd like to trim are part of other blocks.

Starting from the point that I can't alter the blocks - the DWG has to remain like this, with blocks. Is there a way to trim inside that KP box?

many thanks!

Alex

WUWC43FS002.dwg

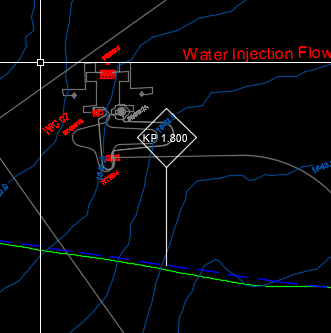

Screenshot - 3_4_2018 , 5_02_29 PM.png

Share this post


Link to post
Share on other sites
BIGAL

Have you looked at Wipeout ?

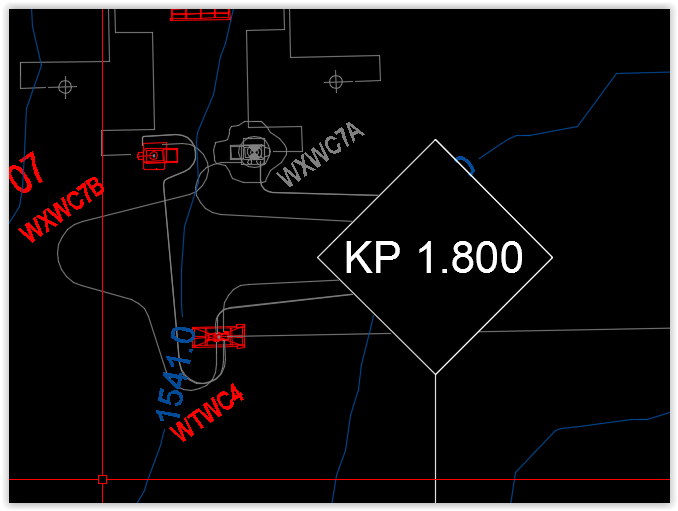

Screen Shot 03-05-18 at 12.33 PM.PNG

Share this post


Link to post
Share on other sites
cat3appr
Have you looked at Wipeout ?



wow fantastic! thanks!

Share this post


Link to post
Share on other sites
cat3appr
Have you looked at Wipeout ?



wow fantastic! thanks!

basically first you moved the KP number outside, ( i need to keep the 1.8) wiped out and placed the KP back right?

Share this post


Link to post
Share on other sites
tombu
wow fantastic! thanks!

basically first you moved the KP number outside, ( i need to keep the 1.8) wiped out and placed the KP back right?



Wipeout doesn't actually erase anything. After adding it simply select the KP number or anything you want visible and bring it to front with draworder.
