MTEXT normal value. Is it possible to change this to 0

Recommended Posts

3dwannab

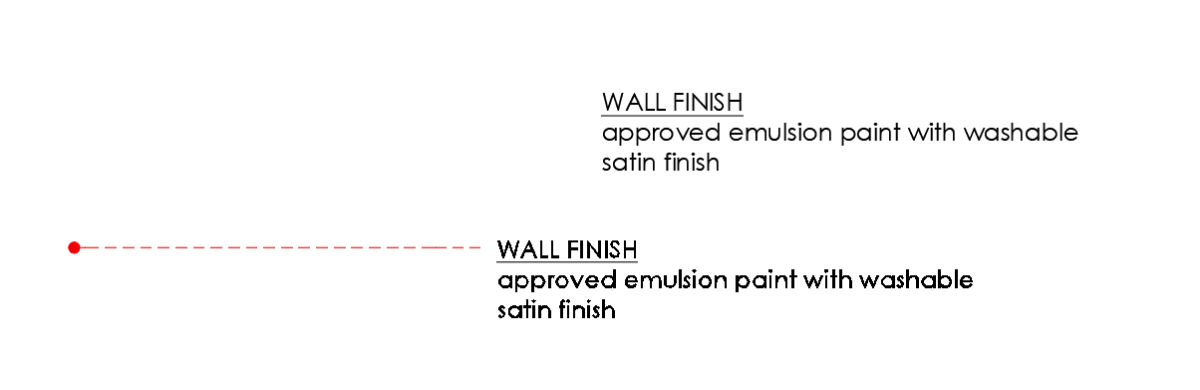

I'm having a fuzzy MTEXT problem found here.



It turns out MTEXT has a normal value. This is the cause of the problem, FLATTEN doesn't work, nor changing the Z value of the text.



I thought there might be a way with LISP.



Cheers.

Share this post


Link to post
Share on other sites
steven-g

If something has a normal (other than 0) then it was created on another UCS, use the UCS command and the option 'object' select the text and then copy it with base point. reset the UCS to world and paste the mtext now back to the world UCS

Share this post


Link to post
Share on other sites
3dwannab
If something has a normal (other than 0) then it was created on another UCS, use the UCS command and the option 'object' select the text and then copy it with base point. reset the UCS to world and paste the mtext now back to the world UCS



That worked but I'm stumped on how to do this on objects with different UCS vals. A LISP would be more beneficial here. Thanks.



Here's the entget info for that MTEXT. Nowhere does it list the NORMAL. :unsure:



((-1 . <Entity name: 21e6398f230>) (0 . "MTEXT") (5 . "383") (102 . "{ACAD_XDICTIONARY") (360 . <Entity name: 21e6398f240>) (102 . "}") (330 . <Entity name: 21e08fde020>) (100 . "AcDbEntity") (67 . 0) (410 . "Model") (8 . "Defpoints") (100 . "AcDbMText") (10 -178.686 5455.27 -1.24456e-05) (40 . 600.0) (41 . 12000.0) (46 . 0.0) (71 . 2) (72 . 5) (1 . "REAR ELEVATION KINGS ROAD (FuZzy TeXt, Z value is at 0, I need to explode it for it to work and put Z val as 0)") (7 . "Standard") (210 -9.71234e-13 -7.41855e-09 1.0) (11 1.0 1.99153e-16 9.71234e-13) (42 . 11680. (43 . 3818.14) (50 . 1.99153e-16) (73 . 1) (44 . 1.0))

Share this post


Link to post
Share on other sites
Grrr

Flanders, group code 210 stands for normal. Also if you dump it you would see the 'Normal property. :P

Share this post


Link to post
Share on other sites
rlx

based on the helpfile (zero expercience with normal)



(defun c:normal ( / mtext-object mtext-normal newNormal)
 (if (setq mtext-object (vlax-ename->vla-object (car (entsel))))
   (progn
     (setq mtext-normal (vlax-variant-value (vla-get-Normal mtext-object)))
     (alert (strcat "Normal mtext object is "
                    (rtos (vlax-safearray-get-element mtext-normal 0) 2) ", "
                    (rtos (vlax-safearray-get-element mtext-normal 1) 2) ", "
                    (rtos (vlax-safearray-get-element mtext-normal 2) 2)))
     (setq newNormal (vlax-3d-point 0 0 1))
     (vla-put-Normal mtext-object newNormal)
     (vla-Update mtext-object)
     (setq mtext-normal (vlax-variant-value (vla-get-Normal mtext-object)))
     (alert (strcat "Normal mtext object is "
                    (rtos (vlax-safearray-get-element mtext-normal 0) 2) ", "
                    (rtos (vlax-safearray-get-element mtext-normal 1) 2) ", "
                    (rtos (vlax-safearray-get-element mtext-normal 2) 2)))
   )
 )
)

gr.Rlx

Share this post


Link to post
Share on other sites
3dwannab

I see that now.



(210 -9.71234e-13 -7.41855e-09 1.0)

was throwing me off. I was expecting its true value. 0.0000000001 :rofl:

Share this post


Link to post
Share on other sites
3dwannab
based on the helpfile (zero expercience with normal)

Enough for you to get it to work. Thanks very much.





Here's the dwg file for testing: Fuzzy Text Problem.dwg



Now to see if I can get this to work with multiple selections.



A lil' extra step was needed in the code.

(defun c:normal ( / mtext-object mtext-normal newNormal)
(if (setq mtext-object (vlax-ename->vla-object (car (entsel))))
	(progn
		(setq mtext-normal (vlax-variant-value (vla-get-Normal mtext-object)))
		(alert (strcat "Normal mtext object is "
			(rtos (vlax-safearray-get-element mtext-normal 0) 2) ", "
			(rtos (vlax-safearray-get-element mtext-normal 1) 2) ", "
			(rtos (vlax-safearray-get-element mtext-normal 2) 2)))
		(setq newNormal (vlax-3d-point 0 0 1))
		(vla-put-Normal mtext-object newNormal)
		(vla-Update mtext-object)
		(setq mtext-normal (vlax-variant-value (vla-get-Normal mtext-object)))
		(alert (strcat "Normal mtext object is "
			(rtos (vlax-safearray-get-element mtext-normal 0) 2) ", "
			(rtos (vlax-safearray-get-element mtext-normal 1) 2) ", "
			(rtos (vlax-safearray-get-element mtext-normal 2) 2)))

		; EXTRA STEP: To move the object up then down.
		(command "_.UCS" "")
		(command "_.move" (vlax-vla-object->ename mtext-object) "" '(0 0 1e99) ""
			"_.move" "_p" "" '(0 0 -1e99) "")
		)
	)
)

Share this post


Link to post
Share on other sites
maratovich

Run on the command line

((lambda (edata)
 (entmod (subst (cons 210 '(0 0 1)) (assoc 210 edata) edata)))
(entget (car (entsel))))

Share this post


Link to post
Share on other sites
3dwannab
Run on the command line

((lambda (edata)
 (entmod (subst (cons 210 '(0 0 1)) (assoc 210 edata) edata)))
(entget (car (entsel))))



Nice, that does it all in one go. I'm going to use this and try see if I can filter the selection for non 0 0 1 vals for the normal and do it for more than just one object. Thanks very much.

Share this post


Link to post
Share on other sites
hanhphuc
based on the helpfile (zero expercience with normal)

(setq mtext-normal (vlax-variant-value (vla-get-Normal mtext-object)))

gr.Rlx



FWIW

(setq mtext-normal (vlax-get  mtext-object 'Normal ) )

returns listp so no need vlax-variant-value conversion, save long typing :P

Share this post


Link to post
Share on other sites
rlx
FWIW

(setq mtext-normal (vlax-get  mtext-object 'Normal ) )

returns listp so no need vlax-variant-value conversion, save long typing :P



I like short(er) lines :thumbsup: . thanx!



(one of the little terro's fell asleep in my arms so couldn't respond right away... but her mommy arrived , finally ...)



Have a nice weekend
