how to align dimensions??

Recommended Posts

danyra

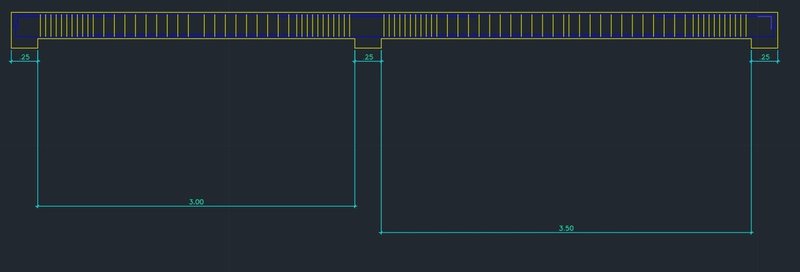

I made my dimensions with this code, why they are not aligned? Look in the image below.







(and
      (setq Z l3)
 (vl-cmdf "_DIMLINEAR" "_non" p3 "_non" (polar p3 0 Z) (mapcar '+ p3 (list 0 (* Z -0.5 )) ) )
)

(princ)

)

Sin título.jpg

Share this post


Link to post
Share on other sites
marko_ribar

(vl-cmdf "_.DIMLINEAR" "_non" p3 "_non" (polar p3 0 Z) "_non" (mapcar '+ p3 (list 0 -12.5)))

  • Thanks 1
