Line thickness inconsistency (visual styles)

Recommended Posts

mzlink




How do you make the thin lines thicker?

Share this post


Link to post
Share on other sites
SLW210

I am guessing this is a 3D Model so I have moved your thread to the AutoCAD 3D Modelling & Rendering Forum.

Which lines are you talking about? Which Visual Style are you using? You might adjust it in "Manage Visual Styles". I don't see the thin lines when I duplicated what you seem to have.

Share this post


Link to post
Share on other sites
mzlink
7 hours ago, SLW210 said:

I am guessing this is a 3D Model so I have moved your thread to the AutoCAD 3D Modelling & Rendering Forum.

Which lines are you talking about? Which Visual Style are you using? You might adjust it in "Manage Visual Styles". I don't see the thin lines when I duplicated what you seem to have.

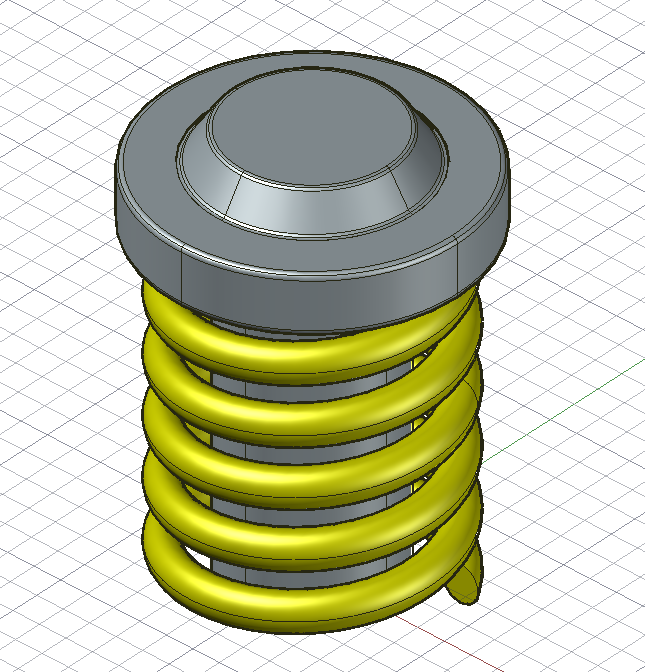

When I say the thin lines, i mean the ones around the top for example. "Isolines" they call it. If i turn them off I get an inconsistency of where contourlines are placed on the gray part. Because the lines stop half-way down:




There is still a thin line visible (seam?) on the inner center, but nothing on the edge.





Custom visual style, I'm trying to get a look that is similar to Sketchy but with materials and textures enabled.




Edited by mzlink
spelling

Share this post


Link to post
Share on other sites
SLW210

If you could post your model it would be easier to see which changes work.



I always found these sort of custom looks easier to do in something like Photoshop/GIMP and/or Illustrator/Inkscape after everything is complete with the model.

If I have time I'll try to mess around with some things later, but real busy with work this week.

Share this post


Link to post
Share on other sites
mzlink



5 hours ago, SLW210 said:

If you could post your model it would be easier to see which changes work.



I always found these sort of custom looks easier to do in something like Photoshop/GIMP and/or Illustrator/Inkscape after everything is complete with the model.

If I have time I'll try to mess around with some things later, but real busy with work this week.





https://puu.sh/EZqsL/a2e5f2b0c7.dwg

(Model is a WIP - otherwise it would be complete part)



After more tinkering, it got slightly better:

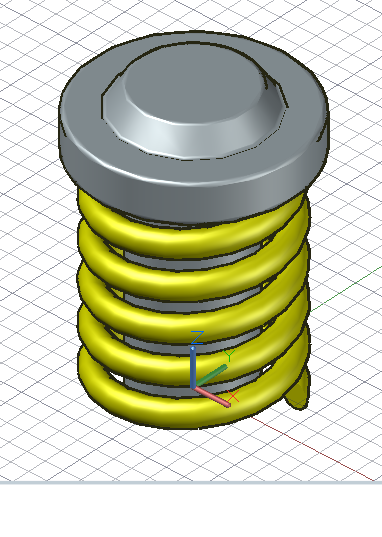

But this gives another issue:






That white line is not supposed to be there

Share this post


Link to post
Share on other sites
SLW210

Some of those issues seem to be graphics card related. Looks like you are on the right track.

Share this post


Link to post
Share on other sites
phuynh

On Visual Style -> set Crease angle = 178

On AutoCAD system variable - > facetres -> set smoothness factor to 10.0

Select objects and set -> Lightweight 1.0 mm or higher (I think this is what you look for)

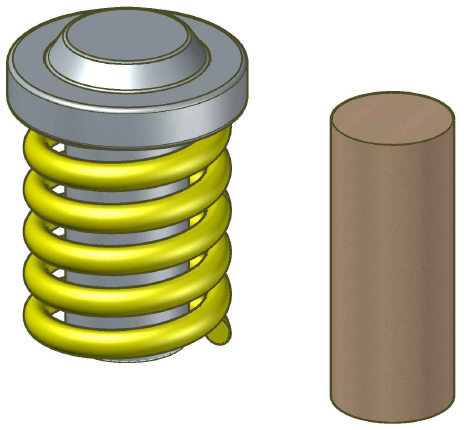

Here what the objects look:


Share this post


Link to post
Share on other sites
