Hi All..

I need lisp routine by Clicking Two Diagonal corners like Rectangle, After finished picking need to display that rectangle area result at Command line. and disappear the drawn rectangle.

Procedure for executing lisp is 1. Pick point 1
2.Pick at Final corner point 2
3. And Displays the Rectangle area result at Command line & Disappear drawn the rectangle.

Kindly help me. i have to check the areas between different points.

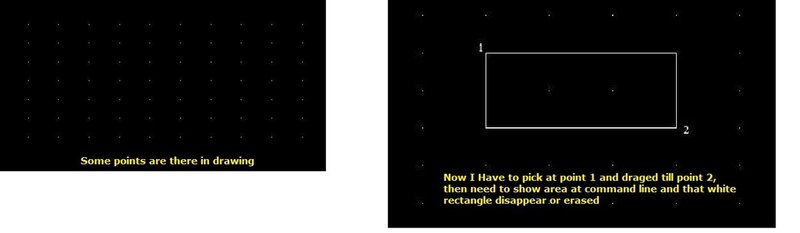

Area Lisp by draw rectangle.jpg

Share this post


Link to post
Share on other sites
Tharwat

Area on the fly. :)

(defun c:aof (/ 1p 2p)
  ;; aof =  Area on the fly.	;;
  (and (setq 1p (getpoint "\nSpecify base point : "))
       (setq 2p (getcorner "\nOpposite point : " 1p))
       (princ (* (distance 1p (list (car 2p) (cadr 1p))) (distance 2p (list (car 2p) (cadr 1p))))
       )
  )
  (princ)
)



  • Like 1

Share this post


Link to post
Share on other sites
structo
Posted (edited)
13 hours ago, Tharwat said:





Quote

Thank you very much, As said it is Area on fly :)  Is it Possible?  same Area result at command  line can we see also  length =   , Width =



Edited by structo

Share this post


Link to post
Share on other sites
BIGAL

Here is another version posted over at AUGI. Look at Tharwat code and have a go.



Can get the 4 points of the rectang then use Tharwat code and modify the Alert shown here.



(defun c:2ptarea ( / obj )
(command "rectang" (getpoint "pick p1 then drag") pause)
(setq obj (vlax-ename->vla-object (entlast)))
(alert (strcat "area is " (rtos (vla-get-area obj))))
(command "erase" "l" "")
(princ)
)
(setq co-ord (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) (entget (entlast)))))
(setq
p1 (nth 0 co-ord)
p2 (nth 1 co-ord)
p3 (nth 2 co-ord)
p4 (nth 3 co-ord)
)



Ps have a go 1st, I have it solved and happy to compare.



Share this post


Link to post
Share on other sites
Tharwat
(defun c:aof (/ 1p 2p wd ht)
  ;; aof =  Area on the fly.	;;
  (and (setq 1p (getpoint "\nSpecify base point : "))
       (setq 2p (getcorner "\nOpposite point : " 1p))
       (setq wd (distance 1p (list (car 2p) (cadr 1p)))
             ht (distance 2p (list (car 2p) (cadr 1p)))
       )
       (princ (strcat "\nWidth = " (rtos wd 2 4) " Height = " (rtos ht 2 4) " Area = " (rtos (* wd ht) 2 4)
              )
       )
  )
  (princ)
)



  • Thanks 1

Share this post


Link to post
Share on other sites
structo

It is awesome, Thank you Tharwat 😊👍

Share this post


Link to post
Share on other sites
Tharwat
1 hour ago, structo said:

It is awesome, Thank you Tharwat 😊👍

You're welcome anytime. :)

  • Like 2

Share this post


Link to post
Share on other sites
BIGAL

With visual drag box.



(defun c:2ptarea ( / co-ord x y )
(command "rectang" (getpoint "pick p1 then drag") pause)
(setq co-ord (mapcar 'cdr (vl-remove-if-not '(lambda (x) (= (car x) 10)) (entget (entlast)))))
(setq
p1 (nth 0 co-ord)
p2 (nth 1 co-ord)
p3 (nth 2 co-ord)
p4 (nth 3 co-ord)
)
(setq x (abs(- (car p1)(car p2))))
(setq Y (abs (- (cadr p1)(cadr p4))))
(setq parea (* x y))
(alert (strcat "area is " (rtos parea 2 2)  " Length is " (rtos X 2 2)  " Height is " (rtos Y 2 2)))
(command "erase" "l" "")
(princ)
)



  • Like 1

Share this post


Link to post
Share on other sites
hanhphuc

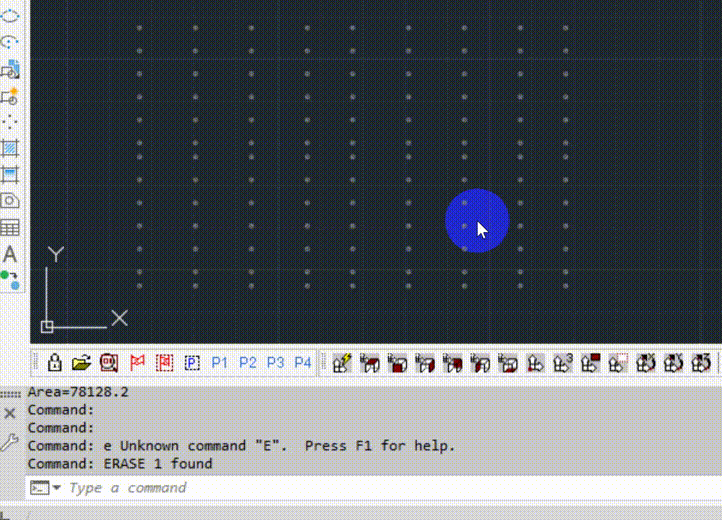

another, delta

(defun c:tt (/ p1 p2 en obj )
(and
  (setq p1 (getpoint "Specify point "))
  (setq p2 (getcorner p1 "opposite corner "))
  (setq en (entmakex (list '(0 . "LINE") (cons 10 p1) (cons 11 p2))))
  (setq obj (vlax-ename->vla-object en))
  (princ
    (strcat
           "\nArea="
                 (rtos
                   (apply '*
                         (mapcar
                          '(lambda (a b) (+ a (abs b)))
                          '(0 0) (vlax-get obj 'delta)
                          )
                     )
                     2
                     3
                 )
            " M\U+00B2"
     )
   )
  (entdel en)
  )
(princ)
)



WCS

  • Like 3

Share this post


Link to post
Share on other sites
BIGAL

Nice idea  " M\U+00B2"

Share this post


Link to post
Share on other sites
structo

Nice hanhphuc & BIGAL..

How to see the result in Bold font style?

Share this post


Link to post
Share on other sites
hanhphuc
Posted (edited)
14 hours ago, structo said:

Nice hanhphuc & BIGAL..

How to see the result in Bold font style?



Font style in command line?

0 acFontRegular

1 acFontItalic

2 acFontBold

3 acFontBoldItalic



(vla-put-textfontstyle
  (vla-get-display (vla-get-preferences (vlax-get-acad-object)))
  acFontBold ;2
)

p/s: BCAD
; error : Automation Error E_NOTIMPL; [IAcadPreferencesDisplay] function [TEXTFONTSTYLE] not implemented yet






Edited by hanhphuc

Share this post


Link to post
Share on other sites
BIGAL

Structo the idea behind using Alert rather than  princ is that it pops up in front of you no need to look down on command line.

Share this post


Link to post
Share on other sites
structo

hi hanhphuc,



I dont want Entire command line in bold style, after executing lisp, result should be in bold style.





Share this post


Link to post
Share on other sites
hanhphuc
Posted (edited)
8 hours ago, structo said:

hi hanhphuc,



I dont want Entire command line in bold style, after executing lisp, result should be in bold style.







Is not a good practice. alert as BIGAL easier

(defun c:tt ()

;;<snippet>

;;acFontBold <-- refer to previous snippet
  (getstring "\nEnter to continue.. ")
;;acFontRegular

(princ)
)



i prefer




   ( grtext -1 "AREA= xxx " )









Edited by hanhphuc

Share this post


Link to post
Share on other sites
pBe
(Defun c:Demo (/ p1 p2)
  (if
    (and
      (setq p1 (getpoint "Specify point "))
      (setq p2 (getcorner p1 "opposite corner "))
    )
     (princ
       (strcat
	 "\nArea="
	 (rtos (* (abs (- (Car p1) (Car p2)))
		  (abs (- (Cadr p1) (Cadr p2)))
	       )
	       2
	       3
	 )
       )
     )
  )
  (princ)
)



Share this post


Link to post
Share on other sites
BIGAL

Pbe its posted elsewhere as well, and in other post wants Area, Length & Height. Think it was forums/Autodesk.

Share this post


Link to post
Share on other sites
Jonathan Handojo

Apologies guys...

GrText Demo 3

Share this post


Link to post
Share on other sites
pBe
2 hours ago, Jonathan Handojo said:

Apologies guys...

GrText Demo 3



I knew from the start that this discussion will inevitably leads to that link you posted. 🙂



Edited by pBe

Share this post


Link to post
Share on other sites
Lee Mac
2 hours ago, pBe said:



I knew from the start that this discussion will inevitably leads to that link you posted. 🙂





🙂

Share this post


Link to post
Share on other sites
