R14 image cutaway


Recommended Posts

AutoCAD_Chris

I've discovered this 3d view cutaway in the "Program Files->Mechanical->Sample" of the R14 directory.  Was this really created fully within AutoCAD R14 (that would be amazing)

Anyone still use R14?

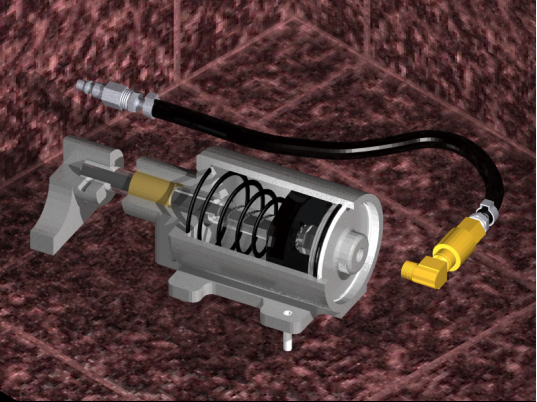

So here is the image, looks like the coil in the render would likely be the hardest to draw.  The samples directory is good, but it would be nice if accompanying instructions on how they got that sample were there as well - or at least an accompanying description of it.

Anyone know if this was created just in AutoCAD R14, or they must have used Mehanical.




Link to post
Share on other sites
Cad64

I don't know for a fact if this was created in R14, but nothing is impossible. I remember creating 3D models in 2002. It was tedious and painful at times, but still doable.
