clarification about circular markings

Recommended Posts

Hello guys,

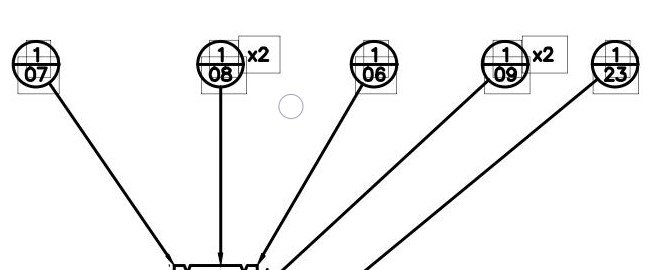

Can some one please tell me what is indicated by those circles and number markings in the drawing. Sorry i can''t share the full picture but it is a box type thing

thank you.


Link to comment
Share on other sites

There's no way to tell from an image. Could be fields, image frames, text frames, proxy objects, Revit artifacts, or a bug. And that's just off the top of my head.


There's a block or something that defines those section markers. I would look there first.

  • Like 1
Link to comment
Share on other sites

Without seeing more of the geomety it's almost impossible to guess.


But those look like callouts to a parts listing? (eg, Parts List 1, Items 6,7,8,9, & 23).
(or Assembly 1, Item details drawings 6,7,8,9, & 23).


Or possibly callouts to a sheet of machining/folding/other manufacturing details?

Edited by nukecad
