Need a Smooth Curve To Pass Through 10 Points


Bill Tillman
 Share

Recommended Posts

I'm using the following code to construct a polyline. It works but I was hoping that somewhere in AutoCAD there is a method for smoothing this curve out.

(defun c:bglarc (/)

  (setq a01 '(587.41129714 -1894.27598824)
	a02 '(513.49131818 -1895.98376109)
	a03 '(439.73430182 -1901.19365819)
	a04 '(366.29910442 -1909.90662304)
	a05 '(293.37692934 -1922.08362964)
	a06 '(221.38947498 -1938.71177195)
	a07 '(157.38596545 -1974.94950554)
	a08 '(105.59755857 -2042.51866343)
	a09 '(91.77147163 -2102.01021408)
	a10 '(98.17808010 -2173.26242179)
	)

  (command-s "._PLINE"
    a01
    a02
    a03
    a04
    a05
    a06
    a07
    a08
    a09
    a10
    ""
    )

  (reset)
  (princ)
  )



Link to comment
Share on other sites

Whereas the method by "least squares" will give the rigorous mathematical result, I prefer the method by "least effort".



Having drawn the polyline, I would then go to PEDIT and curve fit by the FIT option. This makes the curve go through all the base points.

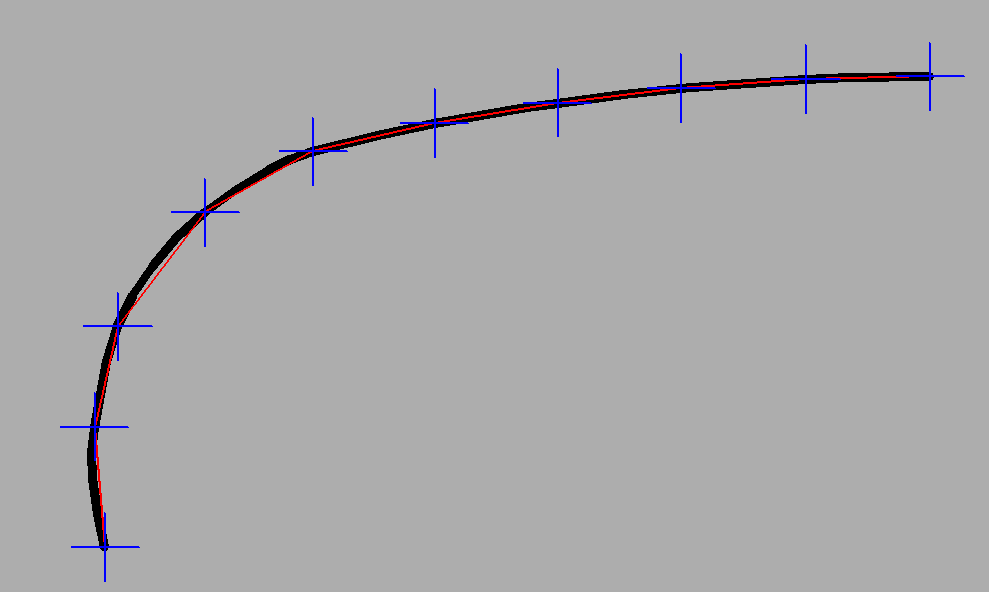

Curve by least effort.PNG

  • Like 1
Link to comment
Share on other sites

Using PEDIT and FIT will convert the polyline to a series of arcs.  Two arcs are created between each polyline vertex.  The arc tangent will be the same where  two arcs  meet.  That is, the curve will have a continuous its first derivative throughout its length.   The result may deviate from the original polyline by quite a bit..  You may get a smoother result by using SPLINE and the FIT method specifying each of the 10 points for the spline's fit points.  This will yield a spline with a continuous first and second second derivative,  That is, a smooth function for the change in the change in slope as well as just the slope. By default, the curve between each of the points will be a cubic.

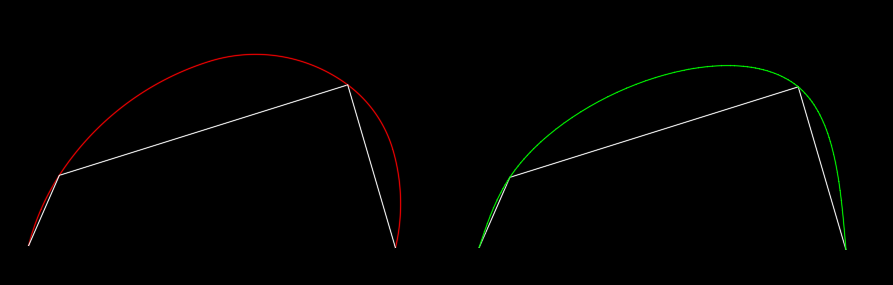

The red curve below is the result of using pedit on the white polyline and the green curve is a spline.


Link to comment
Share on other sites

However, if you want a spline, then you should draw a spline in the first place and you will have to define the start and finish tangents.



Whatever you do, DO NOT Spline fit in PEDIT. If you do, the line will NOT pass through your points.

Link to comment
Share on other sites

Sorry, but my previous attempts to post had problems. I found that by simply changing the command from PLINE to SPLINE it works as predicted. Thanks for all the replies. Geometry was never my strong suit.
