Giovannino60 Posted April 13, 2022 Share Posted April 13, 2022 I have drawn a polyline but the row is not filled, how can I change it to draw it full? Thanks Quote Link to comment Share on other sites More sharing options...
eldon Posted April 13, 2022 Share Posted April 13, 2022 Check the value of the system variable FILLMODE. It should be 1. If it is 0, then change it to 1 and Regenerate drawing. Quote Link to comment Share on other sites More sharing options...
Giovannino60 Posted April 13, 2022 Author Share Posted April 13, 2022 If I enter the polyline command on the command line FILLMODE, I use autocad 2016. What can I do? Thanks Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 13, 2022 Share Posted April 13, 2022 Type the system variable FILLMODE on your command line. Press the Enter key. Change the value from "0" to "1" then press the Enter key. Done. Quote Link to comment Share on other sites More sharing options...
Giovannino60 Posted April 13, 2022 Author Share Posted April 13, 2022 It does not work I am attaching the file. 1.dwg Quote Link to comment Share on other sites More sharing options...
eldon Posted April 13, 2022 Share Posted April 13, 2022 I could not see a polyline with width in the file posted. Quote Link to comment Share on other sites More sharing options...
Giovannino60 Posted April 13, 2022 Author Share Posted April 13, 2022 I have not drawn a polyline, it is a file in which drawing a polyline is drawn empty. Try it too. Thanks Quote Link to comment Share on other sites More sharing options...

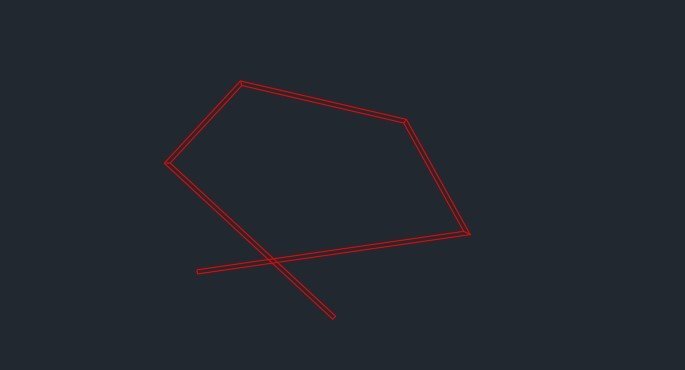

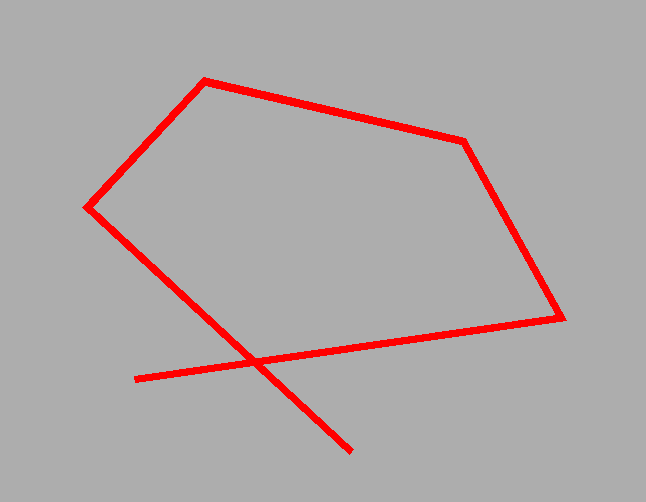

ReMark Posted April 13, 2022 Share Posted April 13, 2022 (edited) 1 hour ago, Giovannino60 said: I have not drawn a polyline, it is a file in which drawing a polyline is drawn empty. Try it too. Thanks Sorry, but I disagree with you. I just drew a polyline in the drawing you provided and it was filled in. The polyline width in the drawing is set to 0.1000000. Here is the proof.... Edited April 13, 2022 by ReMark Quote Link to comment Share on other sites More sharing options...

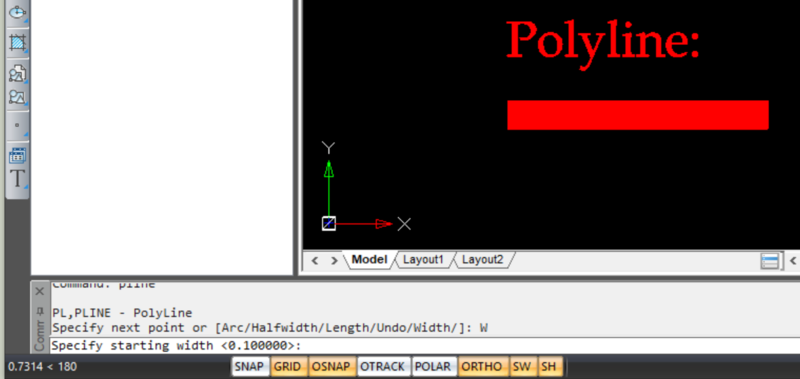

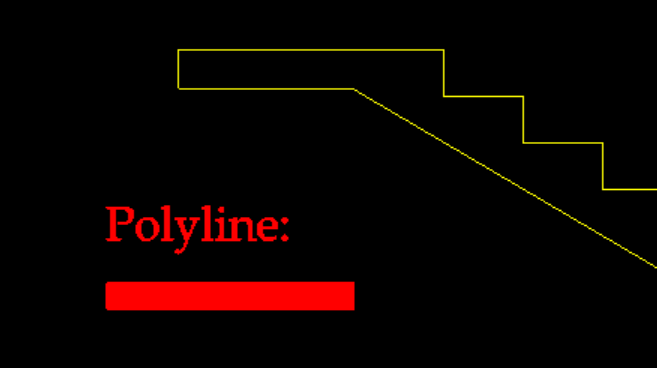

ReMark Posted April 13, 2022 Share Posted April 13, 2022 (edited) Just to prove the Width was already set here is a screen shot of the command line too. By the way, there is only one true polyline (no width) and it is made up of two segments. It is along the bottom of the stairs and the upper landing. Edited April 13, 2022 by ReMark Quote Link to comment Share on other sites More sharing options...
Giovannino60 Posted April 15, 2022 Author Share Posted April 15, 2022 1) I am attaching the same file to you and if I draw some polylines come out, do you want to? 2) why is this file slow to open and yet I have deleted everything? Thanks 1.dwg Quote Link to comment Share on other sites More sharing options...
eldon Posted April 15, 2022 Share Posted April 15, 2022 The file posted had 19 unreferenced image files, not to mention an unfound Path. It is no wonder that the drawing is slow to open when it is busy trying to find unreferenced files! You are not using AutoCAD (according to a message in DWG TrueView) and I am not quite sure what UCS you are in and what view you are looking at, but when I set World UCS and look at the drawing from the Top, the polyline is filled. Quote Link to comment Share on other sites More sharing options...
ReMark Posted April 15, 2022 Share Posted April 15, 2022 The drawing contains a multi-segmented polyline with a global width of 0.1 and an elevation of 0.00 or so says my CAD program. This was verified by clicking on the polyline and checking its properties. What are you attempting to do? Who created the drawing? What unreferenced files were originally attached to this drawing? How much experience do you have using AutoCAD? By the way, you conveniently ignored comments regarding the first drawing you posted. Why? Quote Link to comment Share on other sites More sharing options...
